Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |

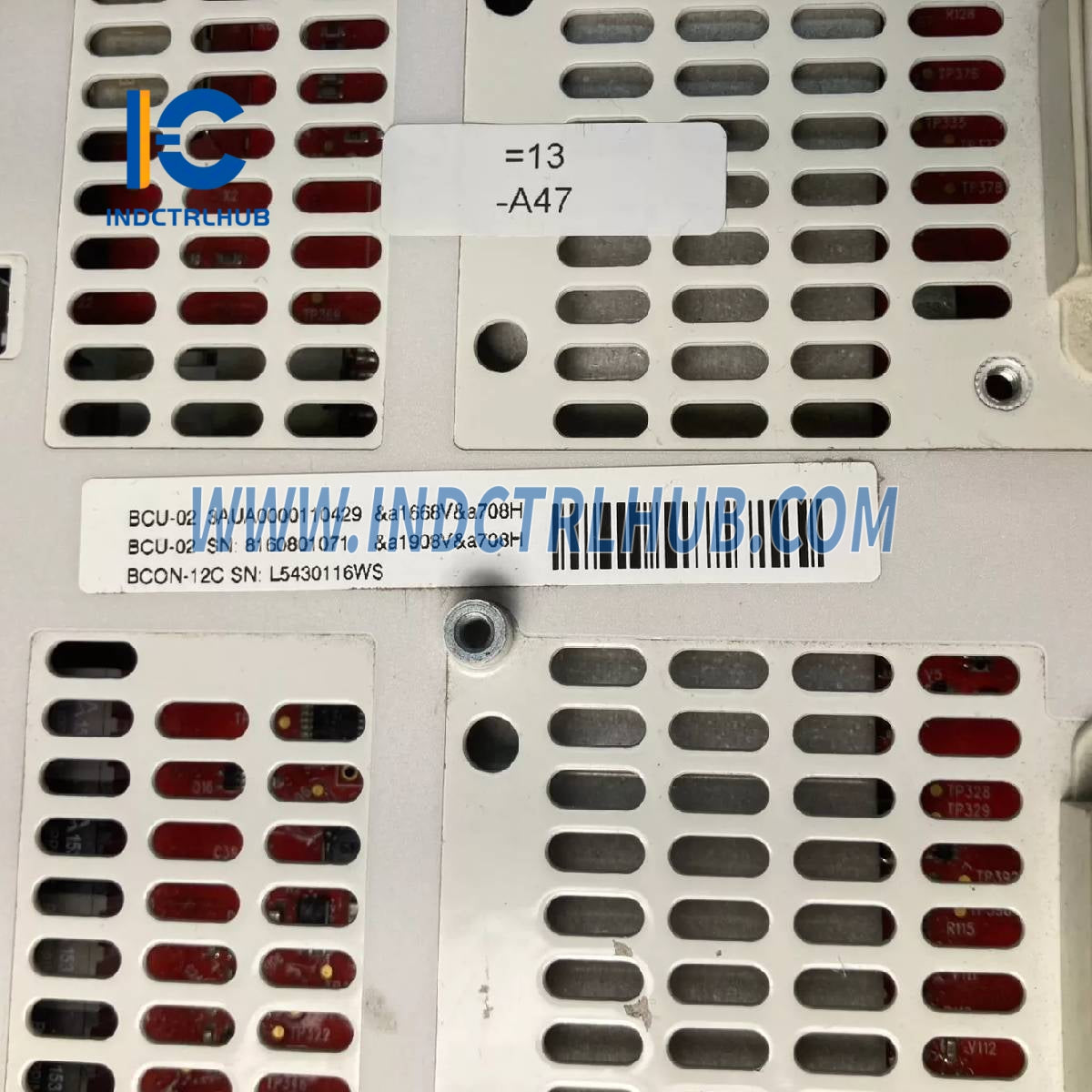

BCU-02 (3AUA0000110429) |
|
Product ID |
3AUA0000110429 |
|
Catalog Description |

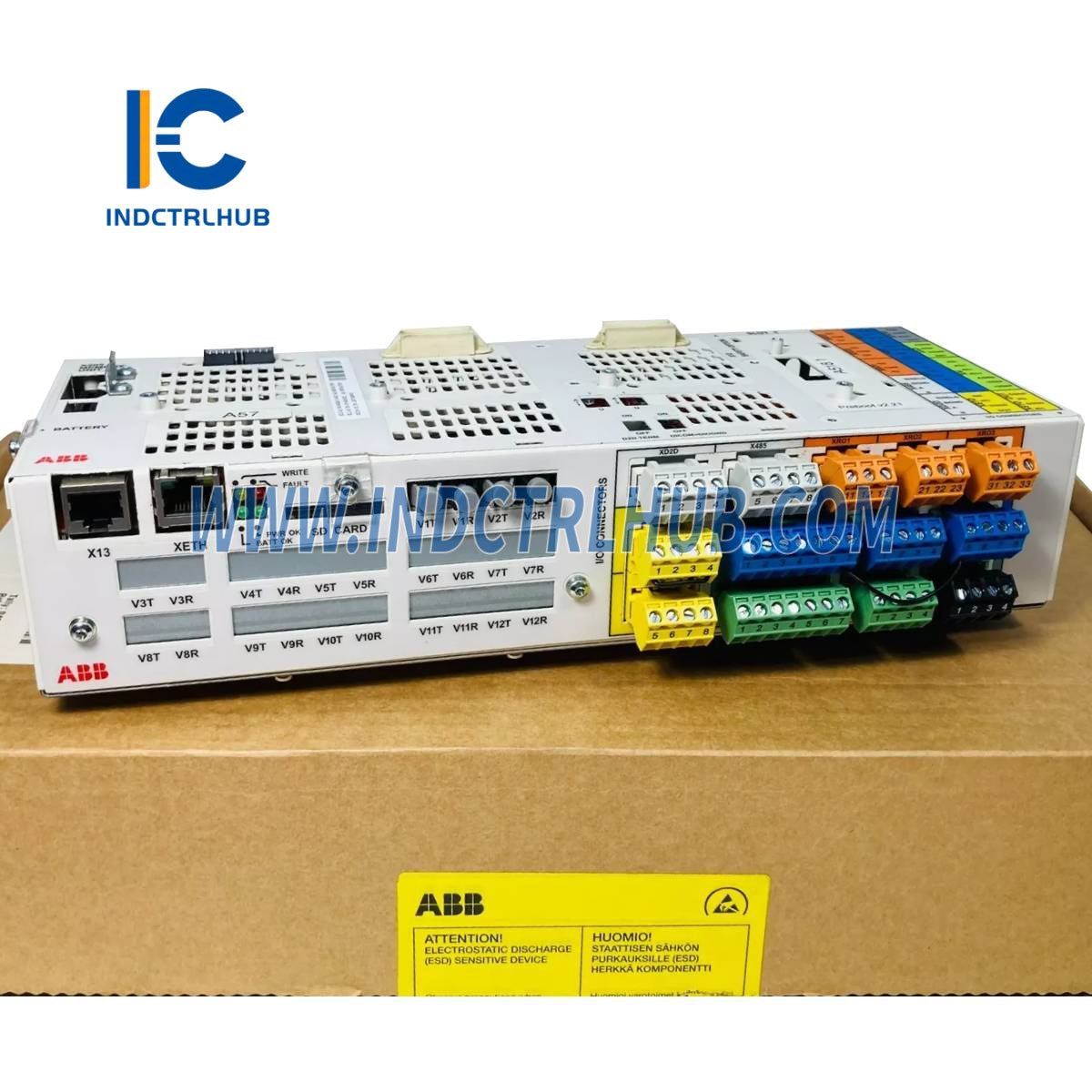

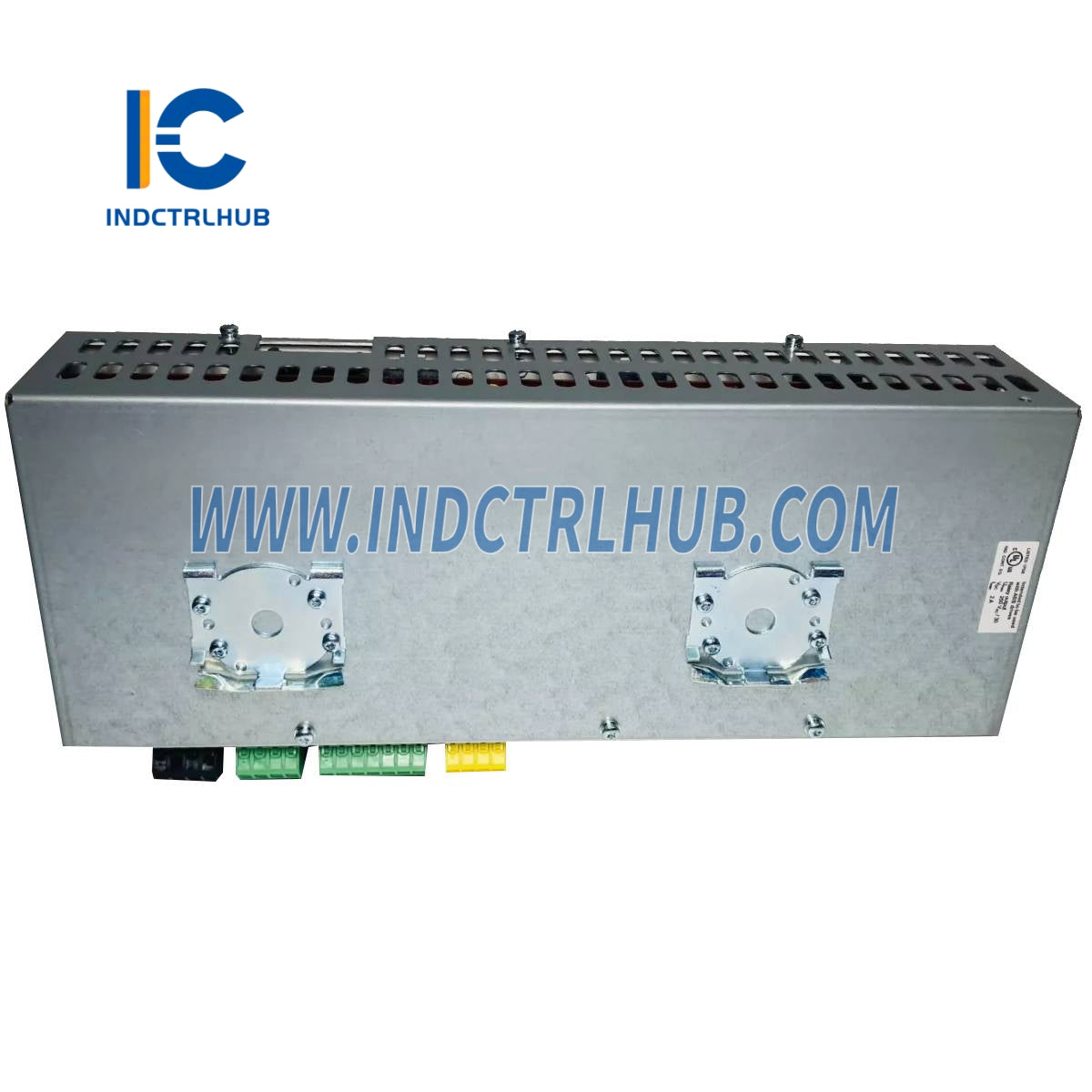

BCU-02 Control Unit |
|
Product Name |
Control Unit |
|
Product Type |
Control Unit |
Ordering Information
|
Parameter |
Value |
|---|---|
|
Country of Origin |
United States (US), Estonia (EE), Finland (FI) |
|
Customs Tariff Number |
85049099 |
|
Invoice Description |
Control Unit |
|
Made To Order |
No |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Part Type |
New |
|
Stocked At |
Central Stock US, FIPSEEXPU, SGRDC002EXPU, CNIAB001EXPU, SGIND002EXPU, AUABB024EXPU |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Weight |
1.5 kg |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Channels |
2_CH |
|
Compatibility |
Used in ACS880 industrial drives |
|
Variants |
|
|
- BCU-02 |
2 Fiber Optic Channels |
|
- BCU-12 |
7 Fiber Optic Channels |
|
- BCU-22 |
12 Fiber Optic Channels |
|
Interchangeability |
BCU-02 can be replaced with BCU-12 or BCU-22 |
|
Spare Part Recommendation |
BCU-22 is recommended as a stored spare part due to its wider compatibility |
|
Plug & Play Compatibility |
Using a larger Control Unit instead of a smaller one is plug-and-play (ACS880 only) |
Applications & Categories
The BCU-02 Control Unit is used in ACS880 multidrives, specifically in:
• ACS880-107 - Inverter unit
• ACS880-207 - IGBT supply unit
• ACS880-307 - Diode supply unit
