Product Description
General Information
- Manufacturer: ABB
- Model: 216VC62A

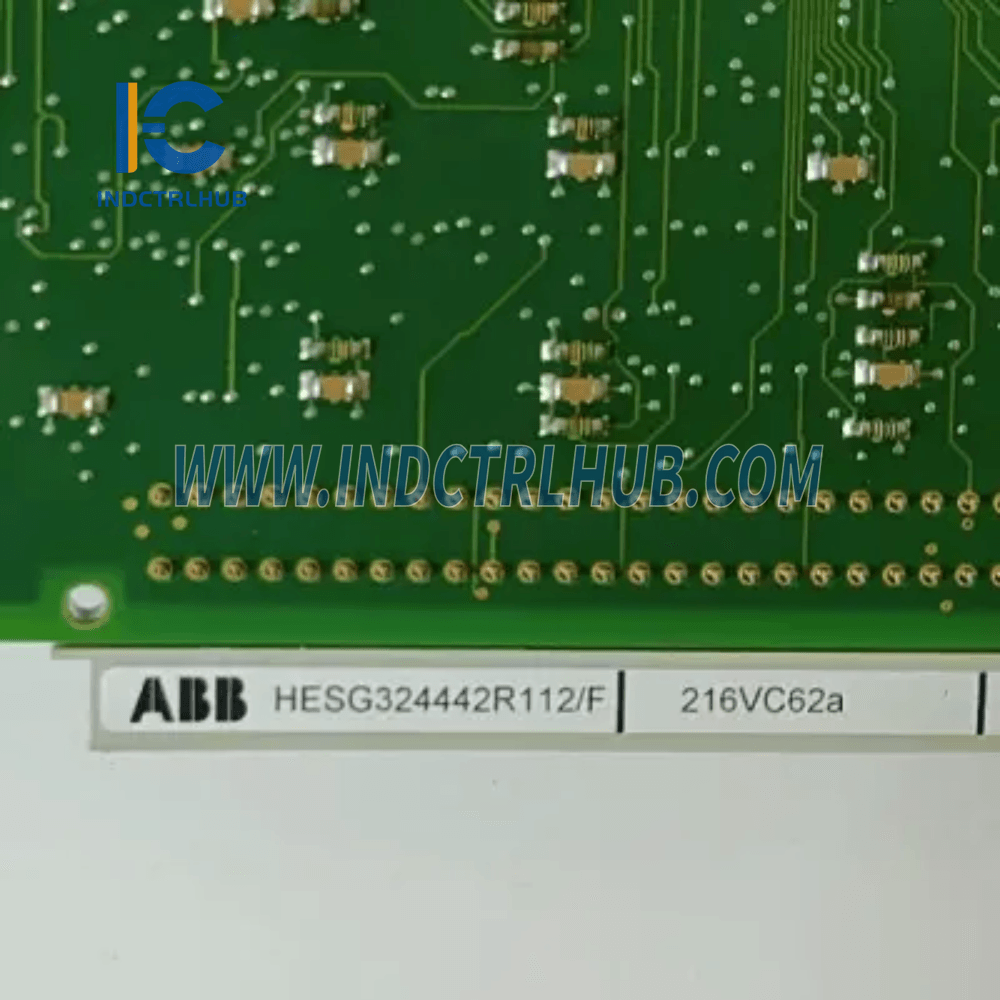

- Ordering Information: HESG324442R13
- Catalog: Procontrol
- Description: Processor Unit Board
- Origin: United States (US)
- HS Code: 85389091
- Dimensions: 16 cm x 16 cm x 12 cm
- Weight: 0.8 kg
Product Overview

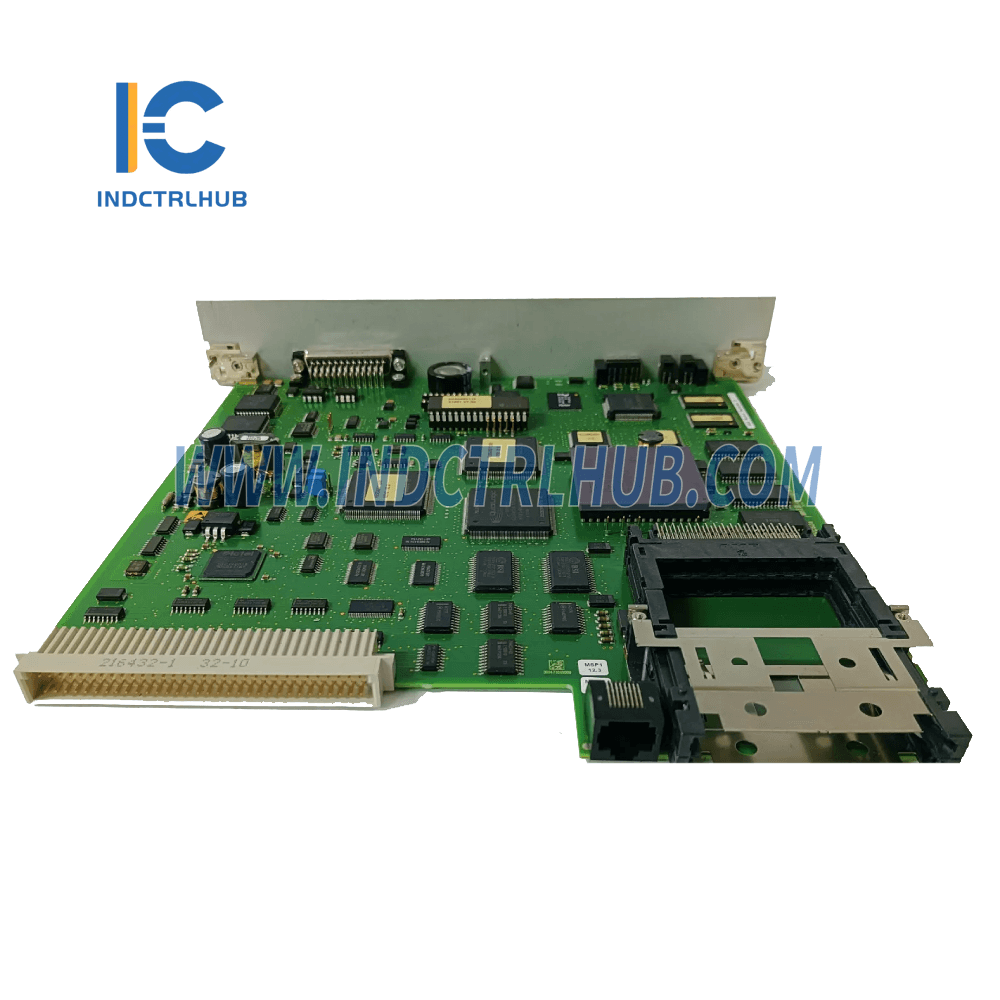

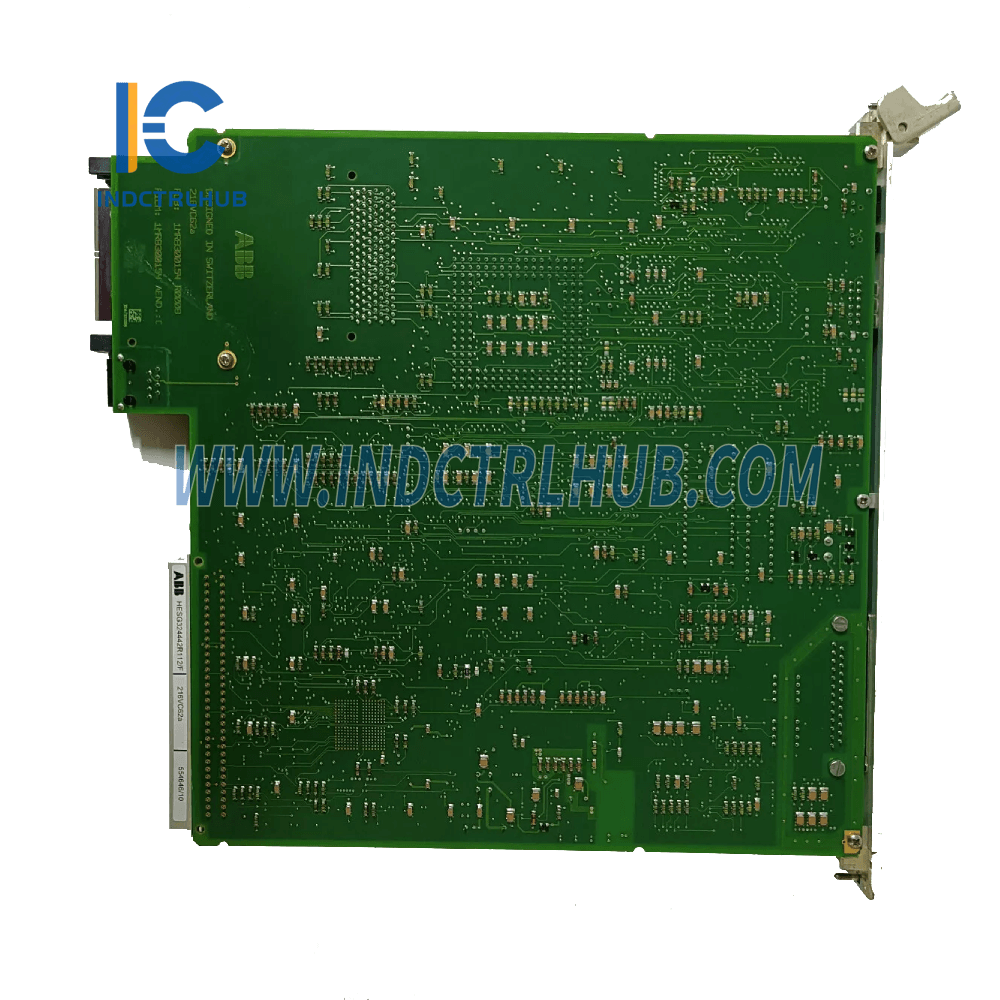

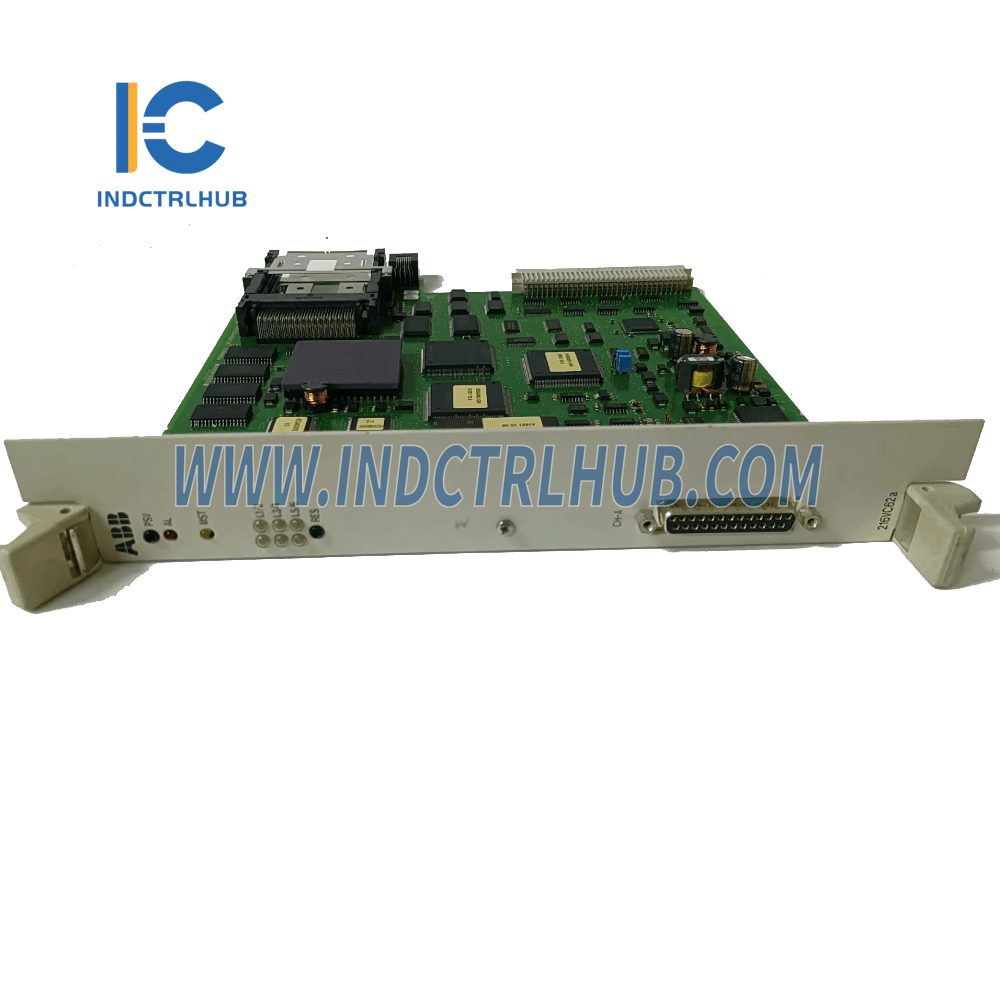

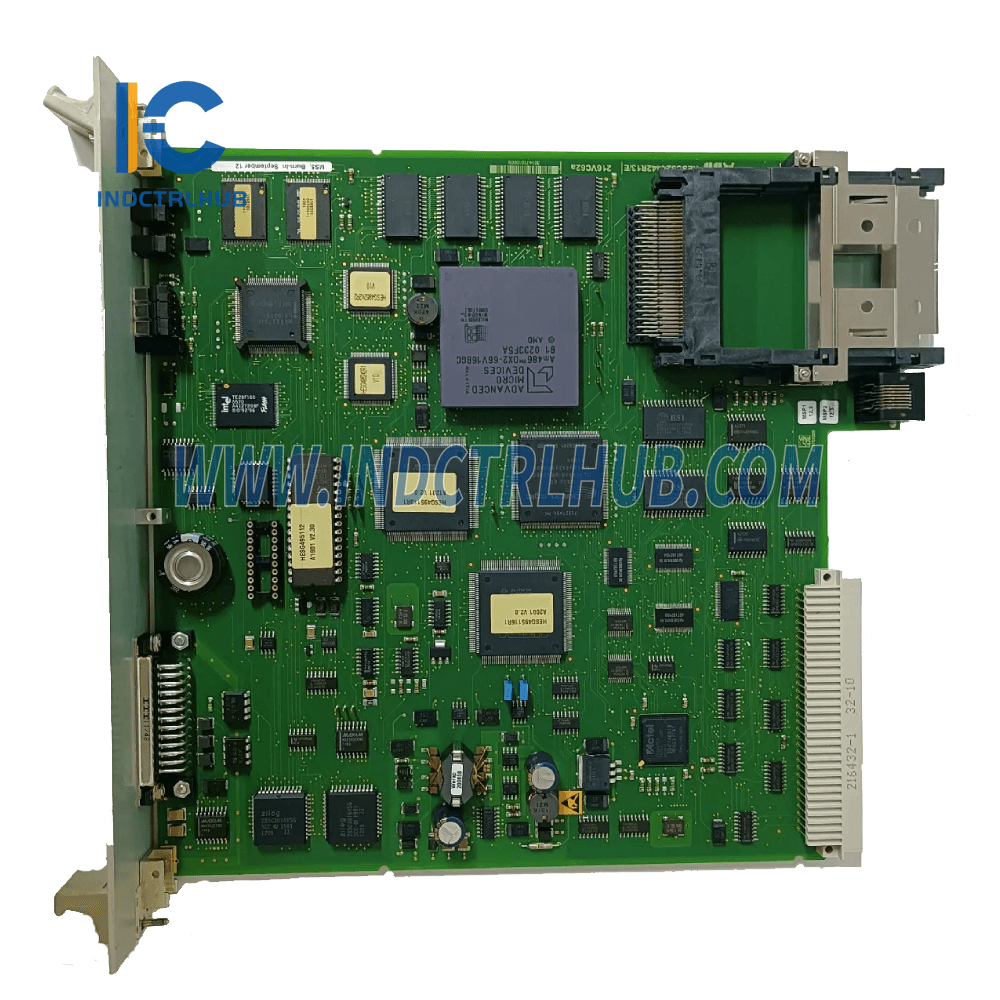

The ABB 216VC62A Processor Unit Board is a high-performance module designed for industrial control systems. Equipped with advanced processing capabilities, it facilitates efficient data handling, communication, and control. This module is particularly suitable for applications such as ship automation and system data input management.
Key Features
1. High-Performance Processor
- Ensures efficient processing of data in industrial control systems.
- Supports the core functions of the overall system for optimal performance.
2. Analog Input Channels
- Features 16 analog input channels for versatile signal measurement.
- Compatible with various signal types, including:
- Voltage: 0–10 V
- Current: 0–20 mA, 4–20 mA
- Thermocouples
3. Serial Communication Interface
- Includes a 25-pin RS-423A interface for data transfer.
- Operates at a data transfer rate of 1200 to 19200 Baud.
- Signal level: Approximately ±4.5 V.
4. System Integration
- Seamlessly integrates with the RE. 216 control system using RS-232C protocols.
- Enables reliable communication between devices and control systems.
Applications
The ABB 216VC62A Processor Unit Board is designed for:
- Ship Automation Systems: Essential for maritime control and data input management.
- Industrial Automation: Enhances system-wide data handling and signal processing.
- Process Control: Provides precise measurements and control of sensor signals.
- Distributed Control Systems: Forms a critical component in complex control networks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Processor Unit Board |
| Ordering Information | HESG324442R13 |
| Interface | 25-pin RS-423A (serial) |
| Analog Input Channels | 16 |
| Input Signal Types | 0-10 V, 0-20 mA, 4-20 mA, Thermocouples |
| Data Transfer Rate | 1200–19200 Baud |
| Signal Level | ±4.5 V |
| Dimensions | 16 cm x 16 cm x 12 cm |
| Weight | 0.8 kg |
Benefits
- Versatility: Supports multiple signal types for broad application usage.
- Efficiency: Streamlined data processing and system control functions.
- Reliability: Ensures robust performance in demanding industrial environments.
- Scalability: Easily integrates into existing or expanded control systems.
Conclusion
The ABB 216VC62A Processor Unit Board delivers advanced capabilities for industrial automation and control. Its compatibility with various analog signals, efficient data transfer interface, and robust design make it a vital component in modern control systems. This module is especially effective in ship automation and distributed control networks, offering enhanced performance and flexibility.
