Product Description
General Information

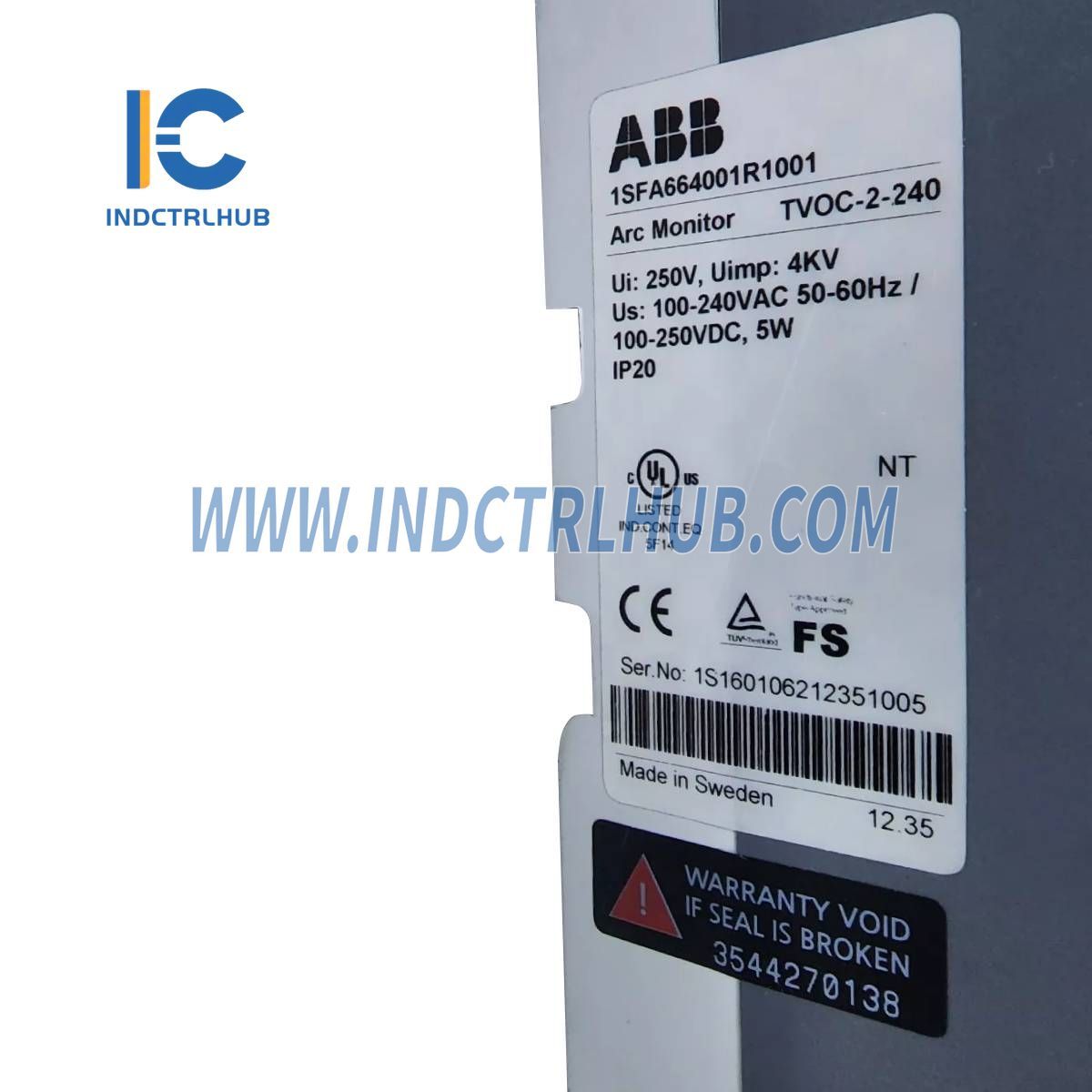

- Extended Product Type: TVOC-2-240
- Product ID: 1SFA664001R1001
- EAN: 7320500382172

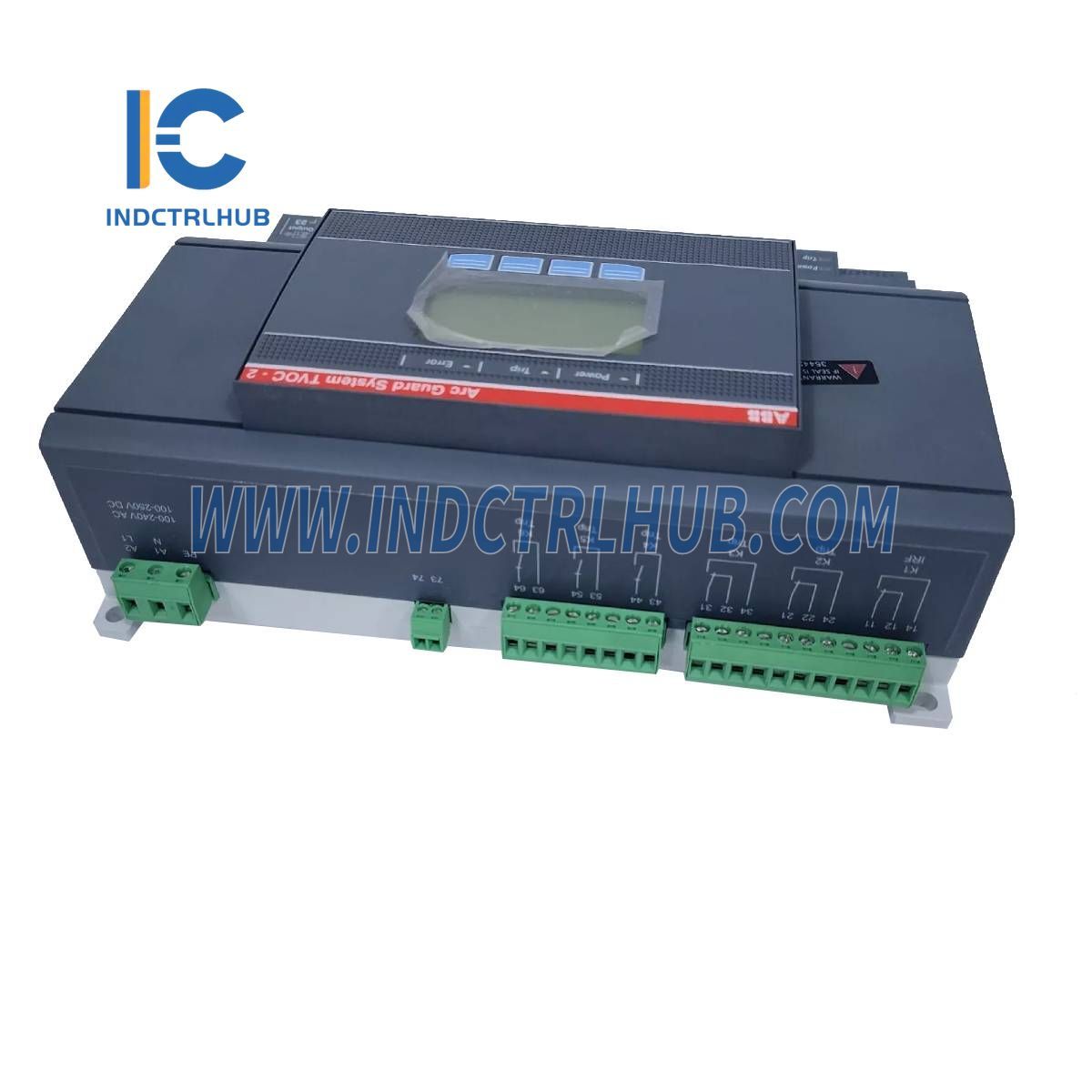

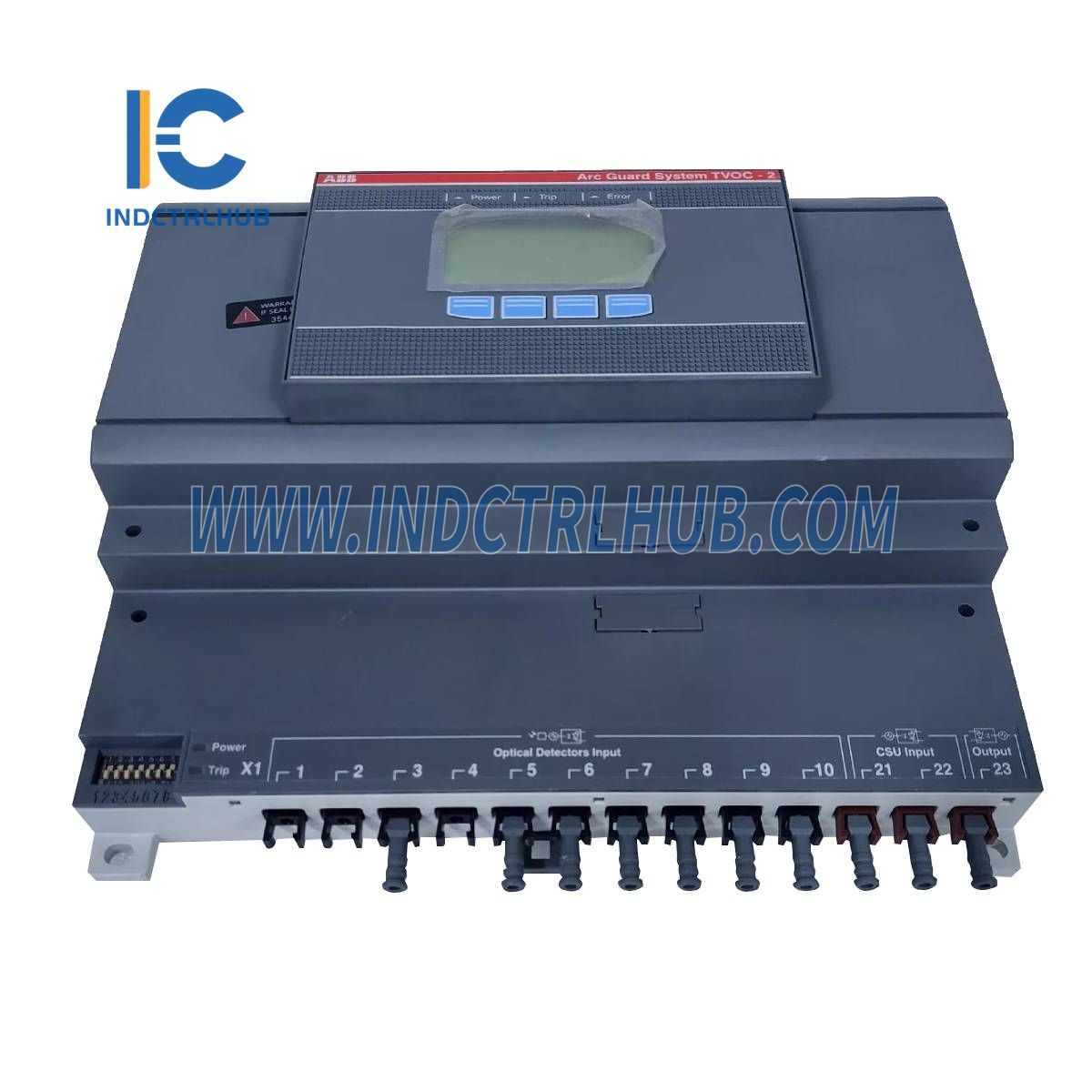

- Catalog Description: TVOC-2-240 Arc Monitor
- Long Description: The TVOC-2 Arc Guard System is designed for arc fault protection, providing rapid detection of arc faults in electrical systems. The Arc Monitor detects the light from an arc and sends a signal to nearby circuit breakers within 1 ms, allowing them to break the power and extinguish the arc, protecting people and equipment. The unit supports up to 10 detectors and can trip up to three breakers with zone selectivity. It also supports up to 2 extension units, allowing the detection of up to 30 light detectors. The Arc Monitor includes an HMI that can be placed on the outside of the door. Detectors come in a range of lengths to suit various switchgear designs.
Material Compliance
- REACH Declaration: Available for the Arc Guard System
- RoHS Compliance: Yes, following EU Directive 2011/65/EU (Amendment 2015/863)
- Toxic Substances Control Act (TSCA): 2CMT001035D0902a
Environmental Specifications
-
Ambient Air Temperature:
- Operating: -25°C to +55°C
- Storage: -25°C to +55°C
Ordering Information
- Order Code (US and Canada): TVOC-2-240
- EAN: 7320500382172
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
Dimensions
- Net Width: 210 mm
- Net Height: 230 mm
- Net Depth / Length: 80 mm
- Net Weight: 1.2 kg
Packaging Information
-
Package Level 1:
- Units: 1 box
- Width: 260 mm
- Height: 125 mm
- Depth / Length: 215 mm
- Gross Weight: 1.27 kg
- EAN: 7320500382172
- Package Level 2: 1 piece
Additional Information
- Main Type: TVOC-2
- Product Name: Arc Monitor
- Suitable For: TVOC-2
Technical Specifications
- Mounting Type: Wall-mounted or DIN rail
- Number of Auxiliary Contacts (SPDT): 3
- Number of Auxiliary Contacts (NO): 3
- Number of Auxiliary Contacts (NC): 0
- Power Loss: 1.5 W
- Rated Operational Voltage: 100 V to 240 V AC/DC
- Terminal Type: Screw Terminals
Certifications and Declarations
- BV Certificate: TVOC-2
- CSA Certificate: cULus Certificate for Arc Guard System TVOC-2 (including accessories)
- DNV Certificate: TVOC-2, CSU-2
- EAC Certificate: ArcGuard, TVOC-2
- UL Certificate: cULus Certificate for Arc Guard System TVOC-2 (including accessories)
- CE Declaration of Conformity: Arc Guard System - TVOC-2
External Classifications
- ETIM 8: EC002911 - Arc detection system
- ETIM 9: EC002911 - Arc detection and mitigation system
- UNSPSC: 32151802 (Arc detection system)
- eClass: V11.0 : 27142214
Related Products and Parts
- Product Category: Low Voltage Products and Systems > Circuit Breakers > External Digital Unit > Arc Guard System
- Parts & Services: Medium Voltage Products and Systems > Service > Spares and Consumables > Parts (Relays-SWG-CB)
