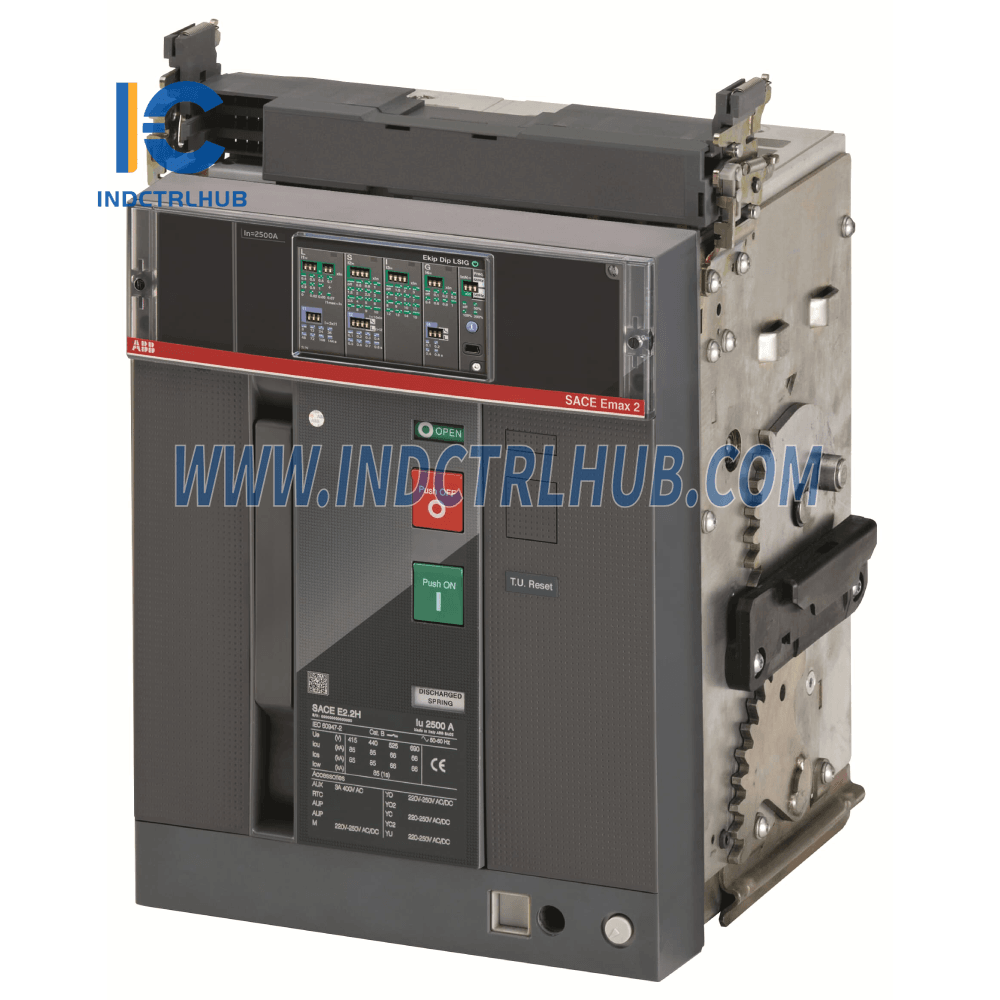

1SDA072312R1 | ABB Moving Part for Circuit Breaker

1SDA072312R1 | ABB Moving Part for Circuit Breaker

  • Manufacturer: ABB

  • Product No.: 1SDA072312R1

  • Condition:1000 in stock

  • Product Type: Circuit Breaker

  • Product Origin: Sweden

  • Payment: T/T, Western Union

  • Weight: 53000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Extended Product Type: E2.2S 1250 Ekip Dip LSI 3p WMP
  • Product ID: 1SDA072312R1
  • ABB Global ID: ABB1SDA072312R1
  • EAN: 8015644761622
  • Catalog Description: E2.2S 1250 Ekip Dip LSI 3p WMP
  • Long Description:
    Moving part for circuit breaker SACE Emax 2 E2.2S 1250 three-pole with solid-state release in AC (Ekip/Dip-LSI R 1250), fitted with:
    • 4 auxiliary contacts
    • Circuit breaker in position: Open/Closed

ABB EcoSolutions

  • ABB EcoSolutions: Yes
  • Waste to Landfill Target: UL 2799 Zero Waste to Landfill Validation available
  • End of Life Disassembling Instructions: Disassembly instructions for Emax 2 E2.2
  • Environmental Product Declaration (EPD):
    • EPD Emax 2 E2.2 IEC (IT)
    • EPD Emax 2 E2.2 IEC (CN)
  • Recyclability Rate (EN45555): 79.1%

Material Compliance


Ordering Information

  • Order Code (US/Canada): Z2SREHAB000A000000XX
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • ECCN: N
  • ECN: N

Dimensions

  • Product Net Width: 317 mm
  • Product Net Height: 425 mm
  • Product Net Depth/Length: 383 mm
  • Product Net Weight: 48 kg

Packaging Information

  • Package Level 1 Units: Box, 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 610 mm
  • Package Level 1 Depth/Length: 515 mm
  • Package Level 1 Gross Weight: 53 kg
  • Package Level 1 EAN: 8015644761622

Technical Information

Parameter Value
Current Type AC
Electrical Durability Ue ≤ 440 V: 15,000 cycles (30 cycles/hour)
Ue = 500–690 V: 15,000 cycles
Mechanical Durability 25,000 cycles (60 cycles/hour)
Number of Poles 3P
Power Loss 176 W
Rated Current (In) 1250 A
Rated Impulse Withstand Voltage IEC 60947-2, 12 kV
Rated Insulation Voltage (Ui) AC 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Capacity (Ics) (400 V AC) 85 kA
(690 V AC) 66 kA
Rated Ultimate Short-Circuit Capacity (Icu) (400 V AC) 85 kA
(690 V AC) 66 kA
Release Type Ekip Dip LSI
Standards IEC

Certifications and Standards

  • ATEX Certificate: No certification needed
  • CSA Certificate: No certification needed
  • Declaration of Conformity (CE): Available
  • Mechanical Drawings: 1SDH001000R0102
  • Wiring Diagram: Circuit diagram for Emax 2 series circuit breakers
  • Instructions: Installation, operation, and maintenance manual for Emax 2

Product Categories

  • Product Line:
    Low Voltage Products and Systems >> Circuit Breakers >> Air Circuit Breakers >> Emax 2
