Product Description

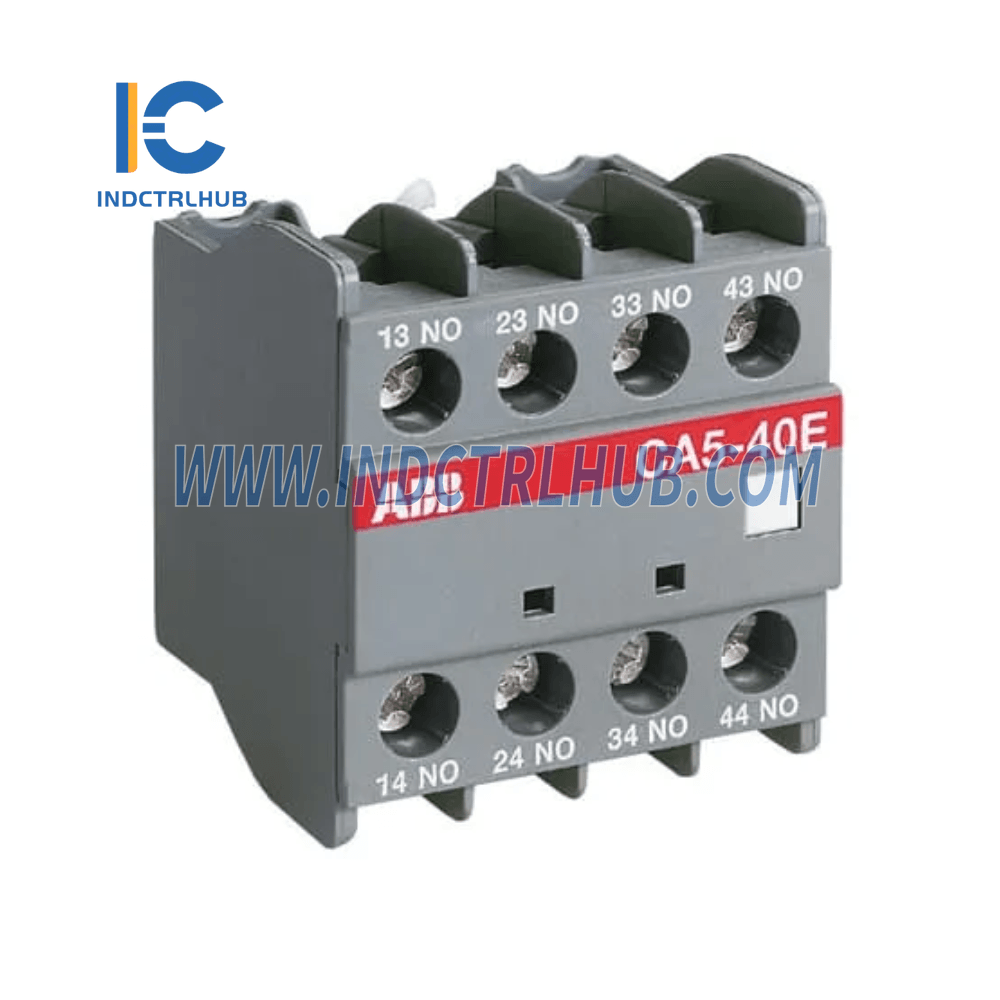

ABB CA5-22E Auxiliary Contact Block
General Information
| Attribute |
Details |
| Model |
CA5-22E |
| Invoice Description |
CA5-22E Auxiliary Contact Block |
| Product Range |
A Contactors |
| Country of Origin |
Czech Republic (CZ) - Imported by ABB India |
| Mounting Type |
Front mounting |
| Applicable Contactors |
A 9...A 75 |
Electrical Specifications
| Attribute |
Details |
| Rated Operational Voltage |
Auxiliary Circuit: 690 V, Main Circuit: 24 V |
| Rated Insulation Voltage (Ui) |
600 V (UL/CSA), 690 V (IEC 60947-5-1, VDE 0110 Gr. C) |
| Rated Frequency (f) |
Supply Circuit: 50/60 Hz |
Rated Operational Current (Ie)
-
DC-13:
- (24 V): 6 A / 144 VA
- (48 V): 2.8 A / 134 VA
- (72 V): 1 A / 72 VA
- (125 V): 0.55 A / 69 VA
- (250 V): 0.3 A / 75 VA
-
AC-15:
- (24/127 V): 6 A
- (220/240 V): 4 A
- (380/440 V): 3 A
- (500 V): 2 A
- (690 V): 2 A
| Rated Breaking Capacity (IEC 60947-5-1) | 10 × Ie AC-15 |
| Max Mechanical Switching Frequency | 3600 cycles/hour |
| Max Electrical Switching Frequency | 1200 cycles/hour |
Mechanical Specifications
| Attribute |
Details |
| Number of Contacts (NO) |
2 |
| Number of Contacts (NC) |
2 |
| Terminal Type |
Screw Terminals |
Packaging Details
| Attribute |
Details |
| Package Dimensions |
129.5 × 65 × 43 mm |
| Package Gross Weight |
0.12 kg |
| HSN Number |
85389099 |
| GST Percentage |
18% |
