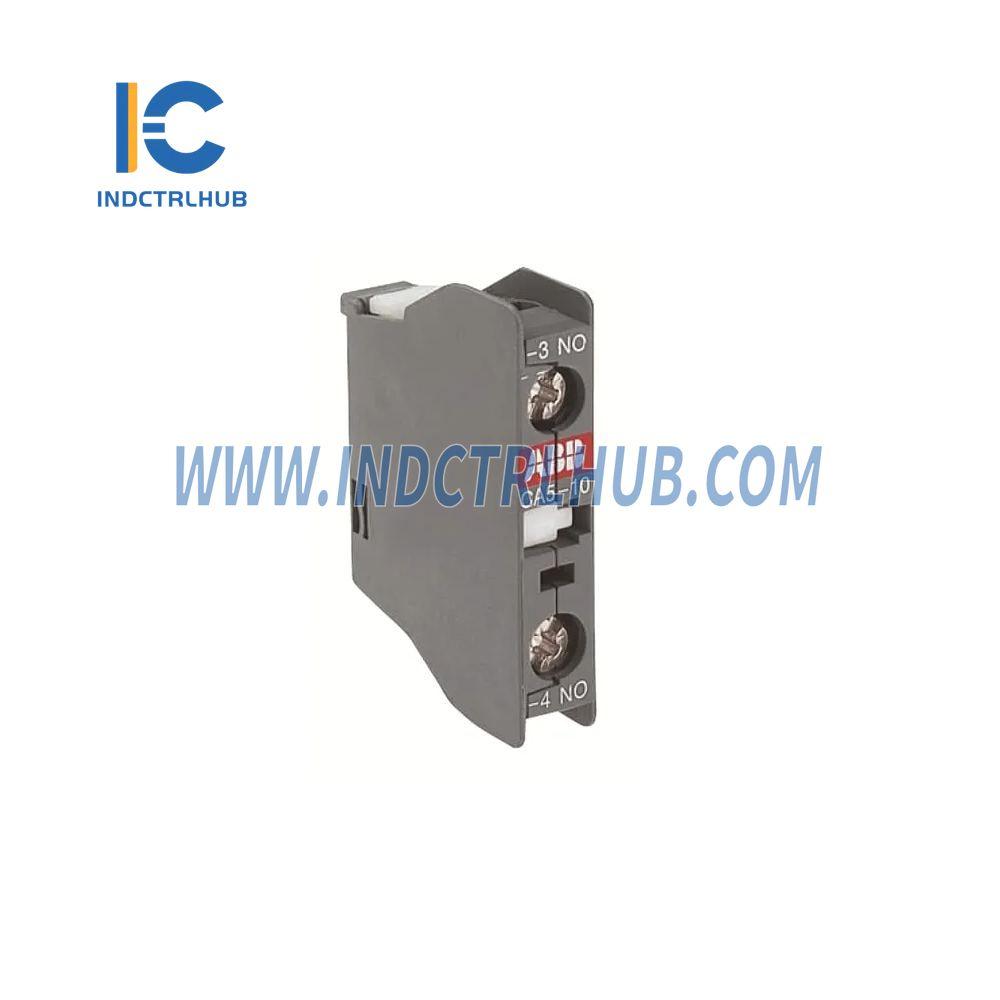

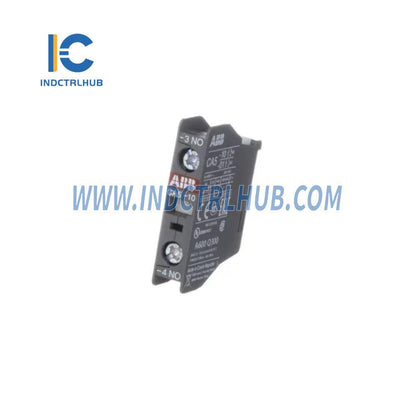

1SBN010010R1010 | ABB CA5-10 Auxiliary Contact Block

1SBN010010R1010 | ABB CA5-10 Auxiliary Contact Block

  • Manufacturer: ABB

  • Product No.: 1SBN010010R1010

  • Condition:1000 in stock

  • Product Type: Auxiliary Contact Block

  • Product Origin: Czech Republic

  • Payment: T/T, Western Union

  • Weight: 1430g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Extended Product Type: CA5-10
  • Invoice Description: CA5-10 Auxiliary Contact Block
  • Product Range: A Contactors
  • Mounting Type: Front mounting
  • Country of Origin: Czech Republic (CZ) - Imported by ABB India Limited

Key Features

  • Primary Use: Auxiliary contact block for A contactors
  • Compatibility: Mountable on A 9...A 75 contactors
  • Contacts Configuration:
    • 1 Normally Open (NO)
    • 1 Normally Closed (NC)
  • Applications: Enhancing control circuits and providing auxiliary switching

Electrical Specifications

Specification Details
Rated Operational Voltage Auxiliary Circuit: 690 V, Main Circuit: 24 V
Rated Insulation Voltage (Ui) UL/CSA: 600 V, IEC 60947-5-1: 690 V
Rated Breaking Capacity (AC-15) 10 x Ie
Rated Operational Current (AC-15) Up to 6 A (24/127 V), 4 A (220/240 V), 3 A (380/440 V), 2 A (500/690 V)
Rated Operational Current (DC-13) Up to 6 A (24 V), 2.8 A (48 V), 0.55 A (125 V), 0.3 A (250 V)
Rated Frequency Supply Circuit: 50/60 Hz

Performance and Durability

Specification Details
Max Mechanical Switching Frequency 3600 cycles/hour
Max Electrical Switching Frequency 1200 cycles/hour

Physical Dimensions and Weight

Dimension Value
Package Width 65 mm
Package Length 129.5 mm
Package Height 9.5 mm
Package Gross Weight 1.43 kg

Additional Information

  • Terminal Type: Screw Terminals
  • HSN Number: 85389099
  • GST Percentage: 18%
View full details

Product Description

General Information

  • Extended Product Type: CA5-10
  • Invoice Description: CA5-10 Auxiliary Contact Block
  • Product Range: A Contactors
  • Mounting Type: Front mounting
  • Country of Origin: Czech Republic (CZ) - Imported by ABB India Limited

Key Features

  • Primary Use: Auxiliary contact block for A contactors
  • Compatibility: Mountable on A 9...A 75 contactors
  • Contacts Configuration:
    • 1 Normally Open (NO)
    • 1 Normally Closed (NC)
  • Applications: Enhancing control circuits and providing auxiliary switching

Electrical Specifications

Specification Details
Rated Operational Voltage Auxiliary Circuit: 690 V, Main Circuit: 24 V
Rated Insulation Voltage (Ui) UL/CSA: 600 V, IEC 60947-5-1: 690 V
Rated Breaking Capacity (AC-15) 10 x Ie
Rated Operational Current (AC-15) Up to 6 A (24/127 V), 4 A (220/240 V), 3 A (380/440 V), 2 A (500/690 V)
Rated Operational Current (DC-13) Up to 6 A (24 V), 2.8 A (48 V), 0.55 A (125 V), 0.3 A (250 V)
Rated Frequency Supply Circuit: 50/60 Hz

Performance and Durability

Specification Details
Max Mechanical Switching Frequency 3600 cycles/hour
Max Electrical Switching Frequency 1200 cycles/hour

Physical Dimensions and Weight

Dimension Value
Package Width 65 mm
Package Length 129.5 mm
Package Height 9.5 mm
Package Gross Weight 1.43 kg

Additional Information

  • Terminal Type: Screw Terminals
  • HSN Number: 85389099
  • GST Percentage: 18%
