Product Description
General Information

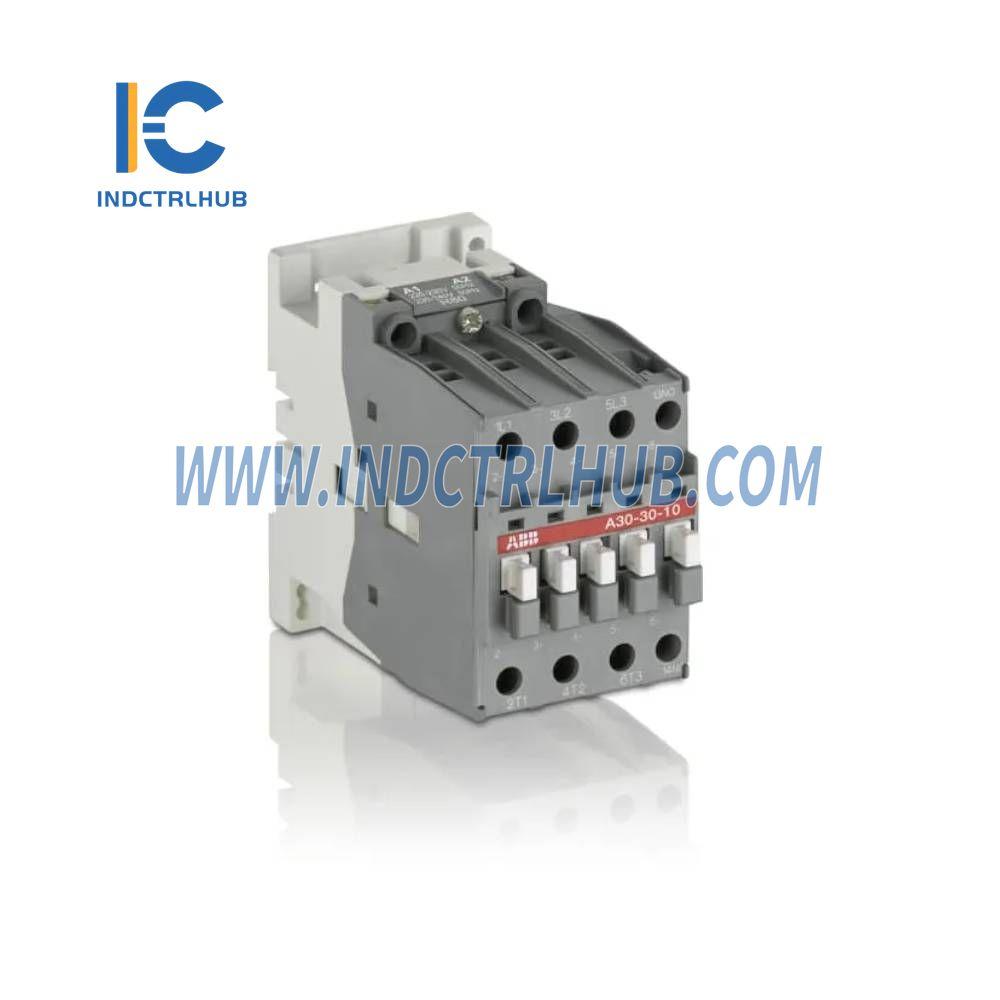

- Extended Product Type: A30-30-01 110V 50Hz / 110-120V 60Hz
- Product Class: Block Contactors
- Product Range: A Contactors
- Invoice Description: A30-30-01 110V 50Hz / 110-120V 60Hz Contactor
- Country of Origin: Bulgaria (BG) - Imported by ABB India Limited
Key Features
- Primary Use: Controlling 3-phase motors and power circuits up to 690 V AC or 220 V DC
- Applications: Isolation, capacitor switching, lighting
-
Design:
- Block type with 3 main poles
- 1 built-in auxiliary contact
- Front and side-mounted add-on auxiliary contact blocks
- Control Circuit: AC operated with laminated magnet circuit
- Accessories: Wide range available
Electrical Specifications
| Specification | Details |
|---|---|
| Rated Operational Voltage | Main Circuit 690 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz: 110 V, 60 Hz: 110-120 V |
| Rated Insulation Voltage (Ui) | IEC: 1000 V, UL/CSA: 600 V |
| Rated Making Capacity (AC-3) | 10 x Ie |
| Rated Breaking Capacity (AC-3) | 8 x Ie |
| Rated Operational Current (AC-3) | Up to 32 A (55 °C, 380-440 V), up to 21 A (55 °C, 690 V) |
| Rated Operational Current (AC-1) | Up to 55 A (40 °C, 690 V) |
| Rated Operational Power (AC-3) | 9 kW (240 V), 15 kW (415 V), 18.5 kW (440 V, 690 V) |
| Rated Operational Power (AC-6b) | Up to 22 KVAR (400 V, 40 °C, 50/60 Hz) |
| Max Mechanical Switching Frequency | 3600 cycles/hour |
| Max Electrical Switching Frequency | AC-1: 600 cycles/hour, AC-3: 1200 cycles/hour |
| Coil Consumption | Pull-in: 125 VA (50 Hz), 120 VA (60 Hz); Holding: 12.3 VA |
| Rated Frequency | 50/60 Hz |
Thermal and Environmental Specifications
| Specification | Details |
|---|---|
| Ambient Air Temperature | Operation: -40 to +55 °C |
| Storage Temperature | -60 to +80 °C |
| Conventional Free-air Thermal Current | Up to 65 A at 40 °C (IEC 60947-4-1) |
| Degree of Protection | IP20 |
Physical Dimensions and Weight
| Dimension | Value |
|---|---|
| Package Width | 101 mm |
| Package Length | 115 mm |
| Package Height | 61 mm |
| Package Gross Weight | 0.71 kg |
Additional Information
- Terminal Type: Screw Terminals
- Number of Main Contacts (NO): 3
- Number of Auxiliary Contacts (NC): 1
- HSN Number: 85364900
- GST Percentage: 18%
