Product Description
Product Details

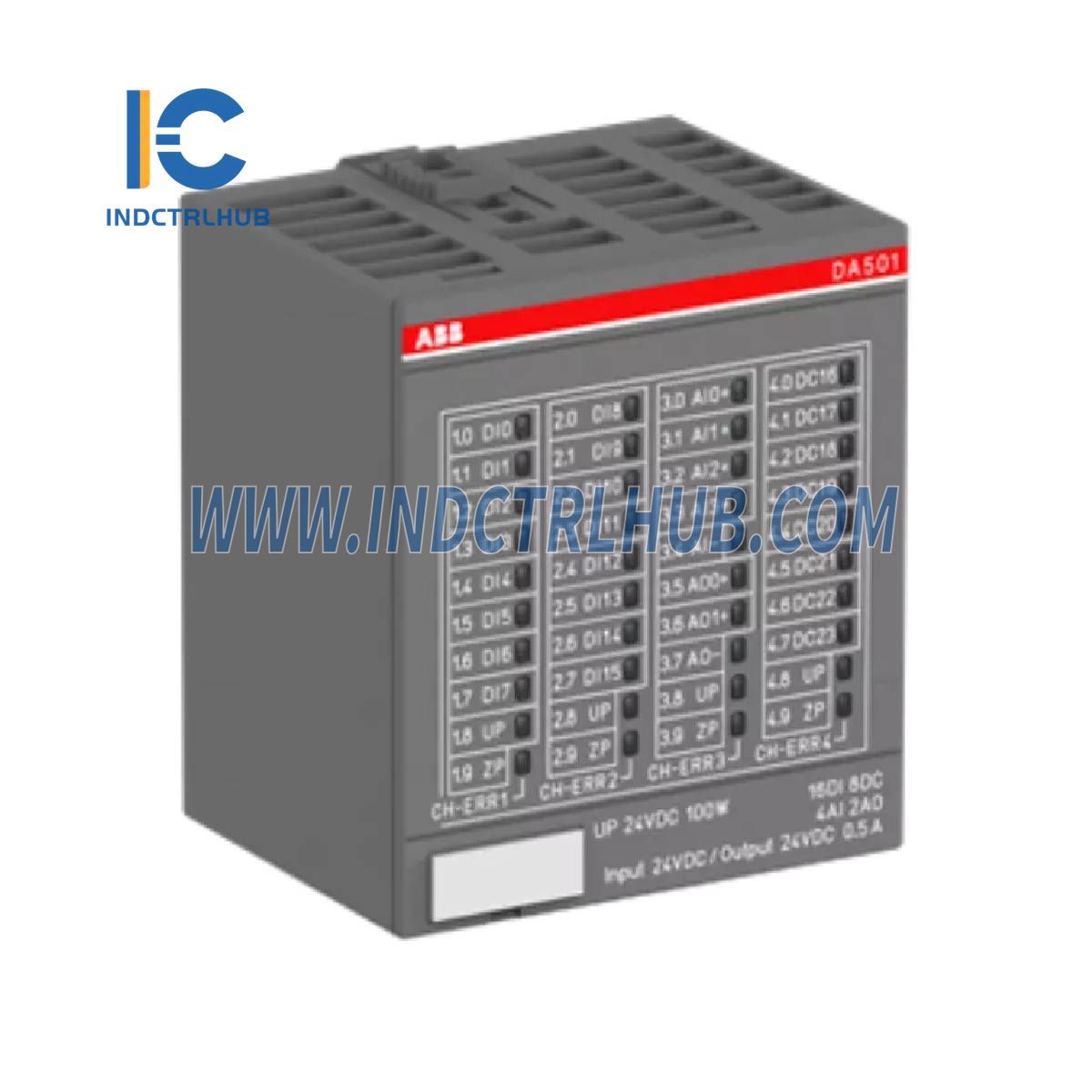

- Manufacturer: ABB
- Model/Part Number: DA501 1SAP250700R0001
- Description: Digital/Analog I/O Module
General Information
| Attribute | Details |
|---|---|
| Extended Product Type | DA501 |
| Product ID | 1SAP250700R0001 |
| ABB Type Designation | DA501 |
| EAN | 4016779681094 |
| Catalog Description | Digital/Analog I/O module - 16 DI: 24VDC, 4 AI (U, I, RTD), 2 AO (U, I), 8 configurable DI/DO (24VDC 0.5A) |
Ordering & Availability
| Attribute | Details |
|---|---|
| Customs Tariff Number | 85389091 |
| Invoice Description | Digital/Analog I/O module |
| Made to Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | Piece |
Dimensions & Weight
| Attribute | Details |
|---|---|
| Product Net Depth / Length | 62 mm |
| Product Net Height | 76 mm |
| Product Net Width | 67.5 mm |
| Product Net Weight | 0.121 kg |
| Gross Weight | 0.145 kg |
| Package Level 1 Dimensions | 84 mm (Depth) x 72 mm (Height) x 71 mm (Width) |
| Package Level 1 Units | 1 carton |
Technical Specifications
| Attribute | Details |
|---|---|
| Function | 16 DI: 24VDC, 4 AI (U, I, RTD), 2 AO (U, I), 8 configurable DI/DO (24VDC 0.5A) |
| Analog Inputs | 4 |
| Analog Outputs | 2 |
| Input Signal | U, I, RTD, DI |
| Output Signal | U, I |
| Resolution | Analog Input 13-bit, Analog Output 13-bit |
| Number of Digital Inputs | 16 |
| Number of Configurable Digital I/Os | 8 |
| Input Voltage Type | DC |
| Input Voltage (Uin) | 24 V DC |
| Input Current | 5 mA |
| Maximum Input Voltage | 30 V |
| Delay Time (τ) | 0.1 – 32 ms |
| Output Type | Transistor |
| Output Voltage (Uout) | 24 V DC |
| Output Current | 0.5 A |
| Degree of Protection | Housing IP20 |
| Rated Voltage (Ur) | 24 V DC |
| Supply Voltage Range | 20.4 – 28.8 V DC |
| Operating Temperature | 0 … +60 °C |
| Storage Temperature | -40 … +70 °C |
Additional Information
| Attribute | Details |
|---|---|
| Product Main Type | DA501 |
| Product Name | Distributed Automation I/Os |
| Classification (ETIM/eClass/UNSPSC) | PLC Analog/Digital I/O Module |
