Product Description
Product Details

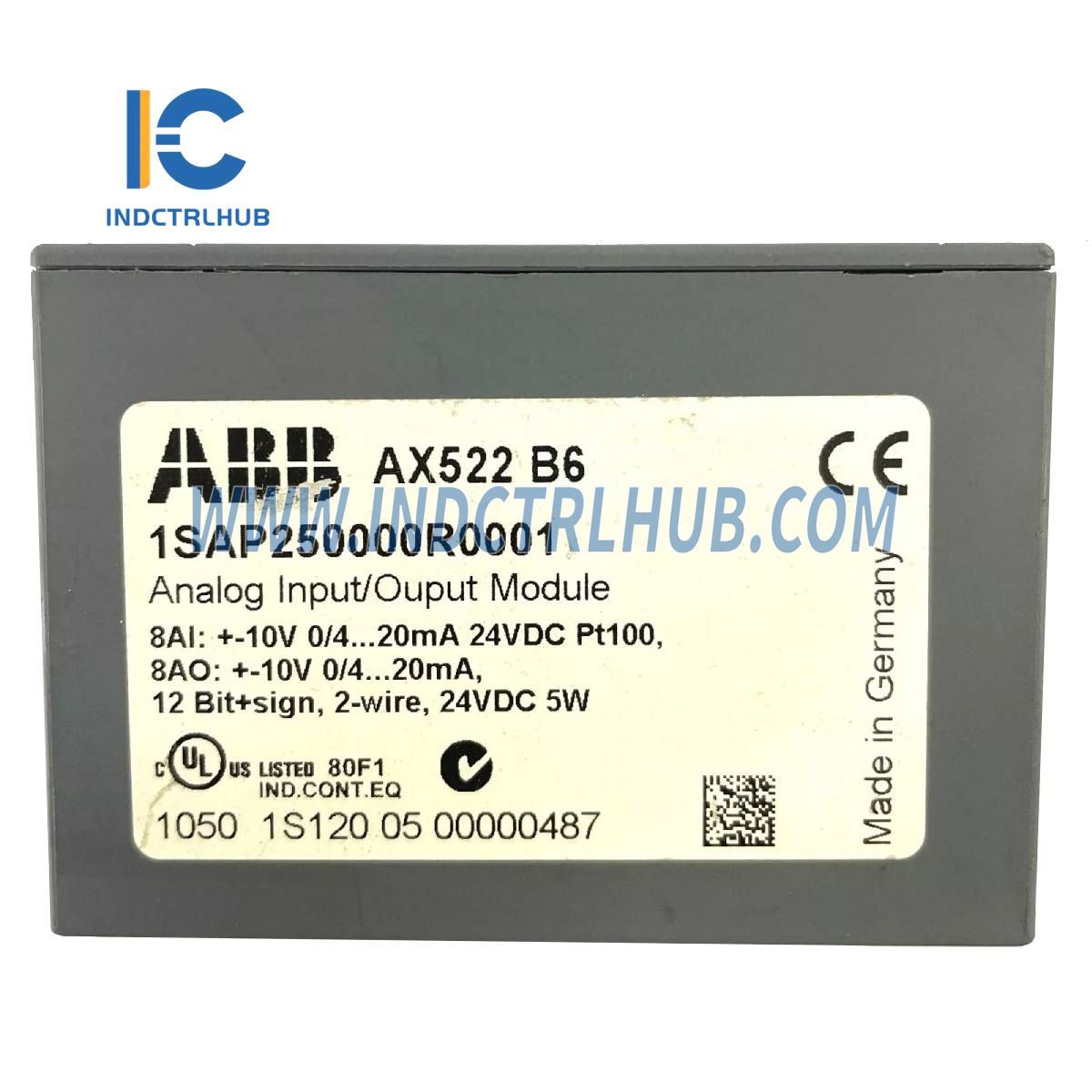

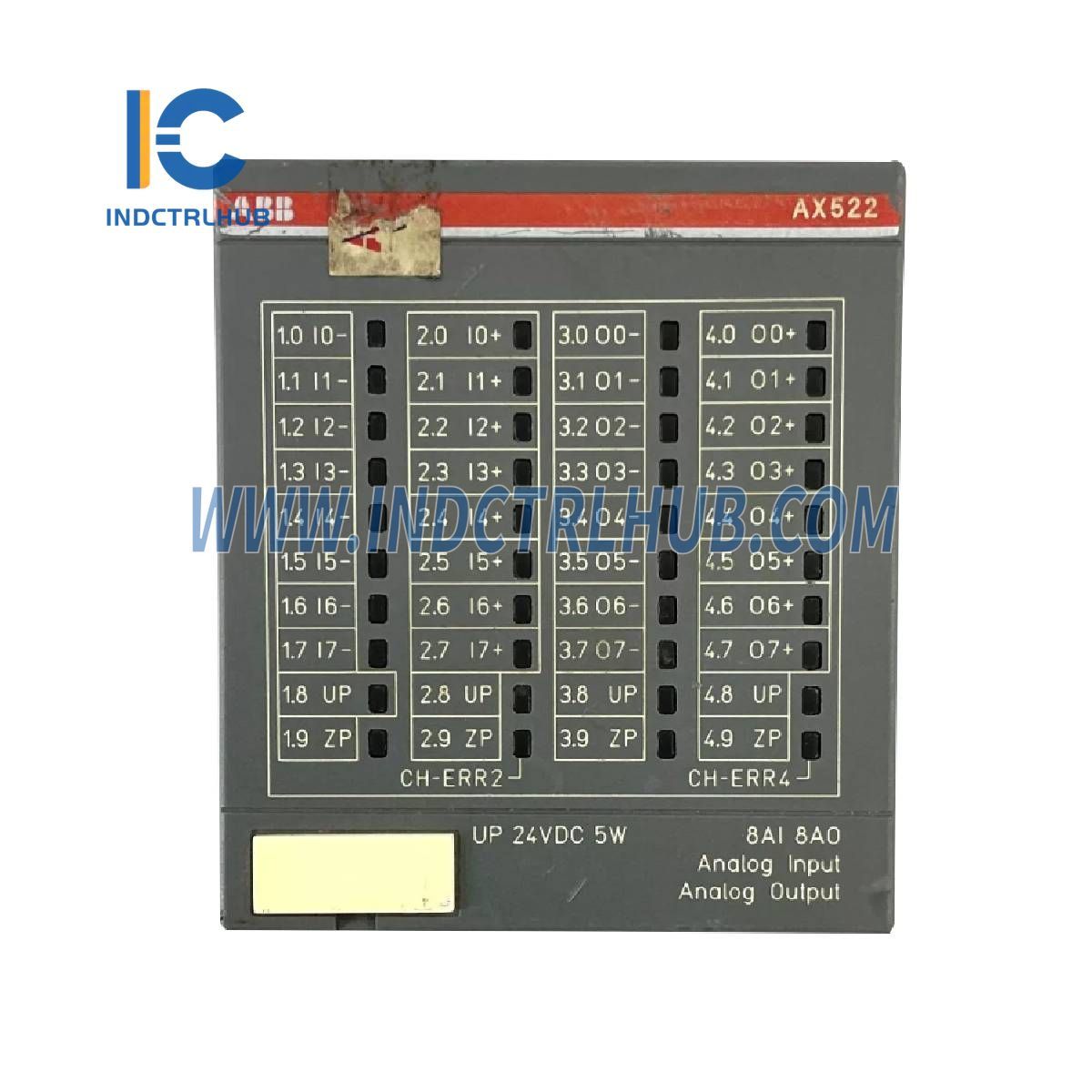

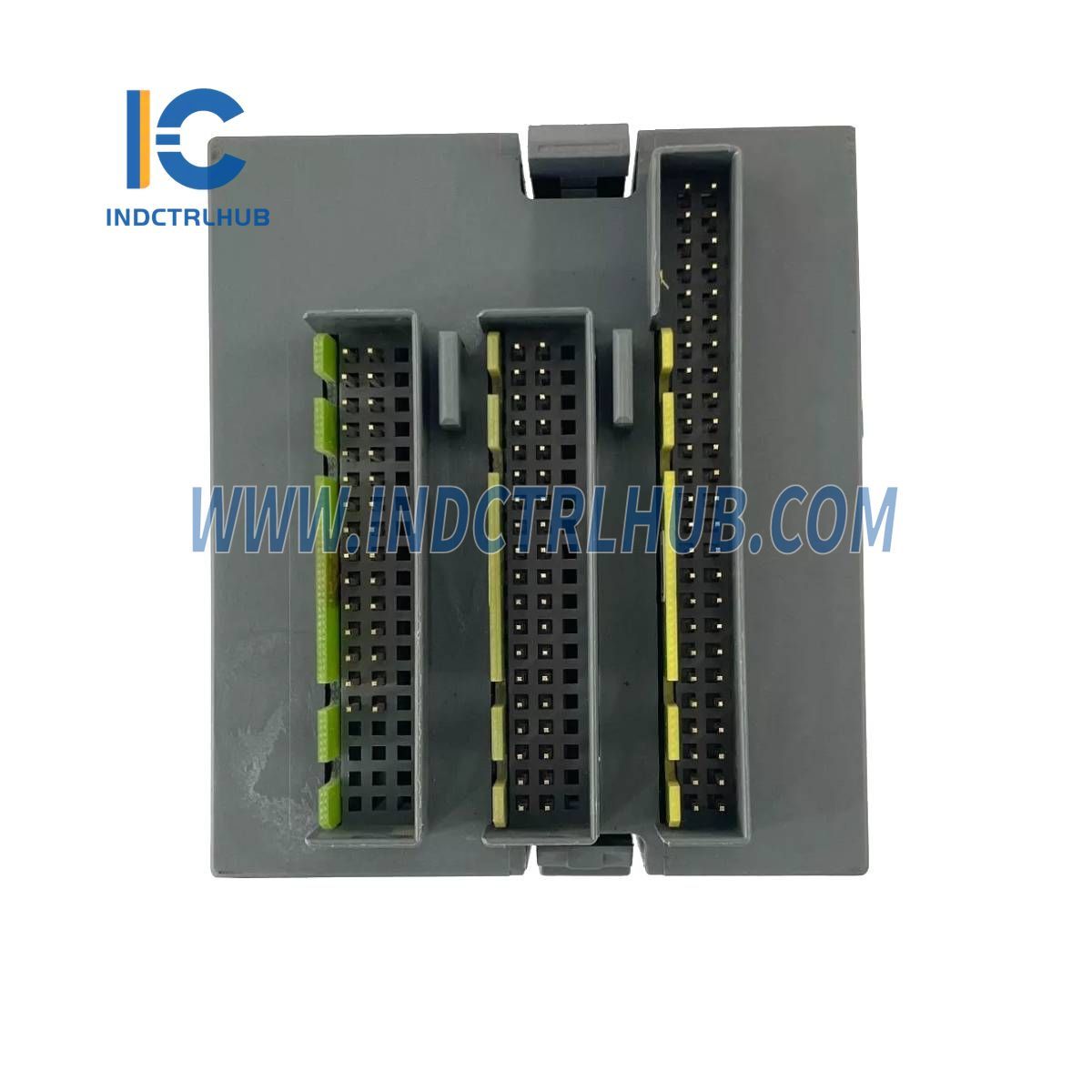

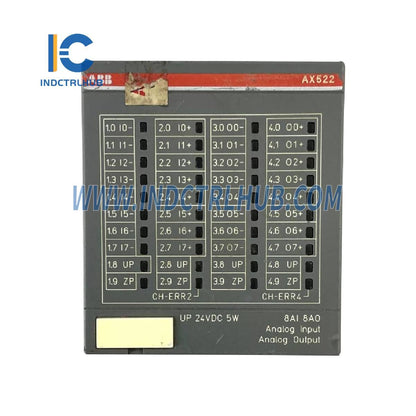

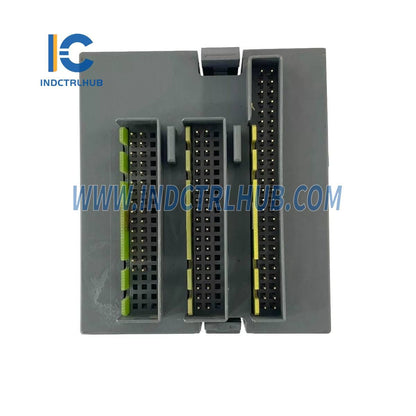

- Manufacturer: ABB
- Model/Part Number: AX522 (1SAP250000R0001)
- Description: Analog Input/Output Module
General Information
| Attribute | Details |
|---|---|
| Extended Product Type | AX522 |
| Product ID | 1SAP250000R0001 |
| ABB Type Designation | AX522 |
| EAN | 4016779649131 |
| Catalog Description | Analog input/output module. 8 AI: U, I, RTD. 4 AO: U, I. 4 AO: U (AX522) |
| Long Description | AX522: S500 Analog Input/Output Module. 8 AI: U, I, RTD. 4 AO: U, I. 4 AO: U. 1-wire. |
| Product Main Type | AX522 |
| Product Name | Distributed Automation I/Os |
Ordering & Logistics
| Attribute | Details |
|---|---|
| CN8 Code | 85389091 |
| Invoice Description | Analog input/output module. 8 AI: U, I, RTD. 4 AO: U, I. 4 AO: U (AX522) |
| Made to Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | Piece |
| Gross Weight | 0.151 kg |
Dimensions & Environmental Conditions
| Attribute | Details |
|---|---|
| Product Net Weight | 0.126 kg |
| Product Net Dimensions (W x H x D) | 67.5 mm x 76 mm x 62 mm |
| Package Dimensions (W x H x D) | 71 mm x 72 mm x 84 mm |
| Ambient Air Temperature (Operation) | 0 ... +60 °C |
| Ambient Air Temperature (Storage) | -40 ... +70 °C |
| Degree of Protection | Housing IP20 |
Technical Specifications
| Attribute | Details |
|---|---|
| Function | 8 AI: U, I, RTD. 4 AO: U, I. 4 AO: U |
| Number of Analog Configurable I/Os | 0 |
| Analog Inputs | 8 |
| Input Signal Types | Voltage (U), Current (I), Resistance Temperature Detector (RTD), Digital Input (DI) |
| Analog Outputs | 8 |
| Output Signal | 4 AO: U, I. 4 AO: U |
| Resolution | 13-bit Analog Input / 13-bit Analog Output |
| Supply Voltage | 24 V DC |
