Product Description
Product Details

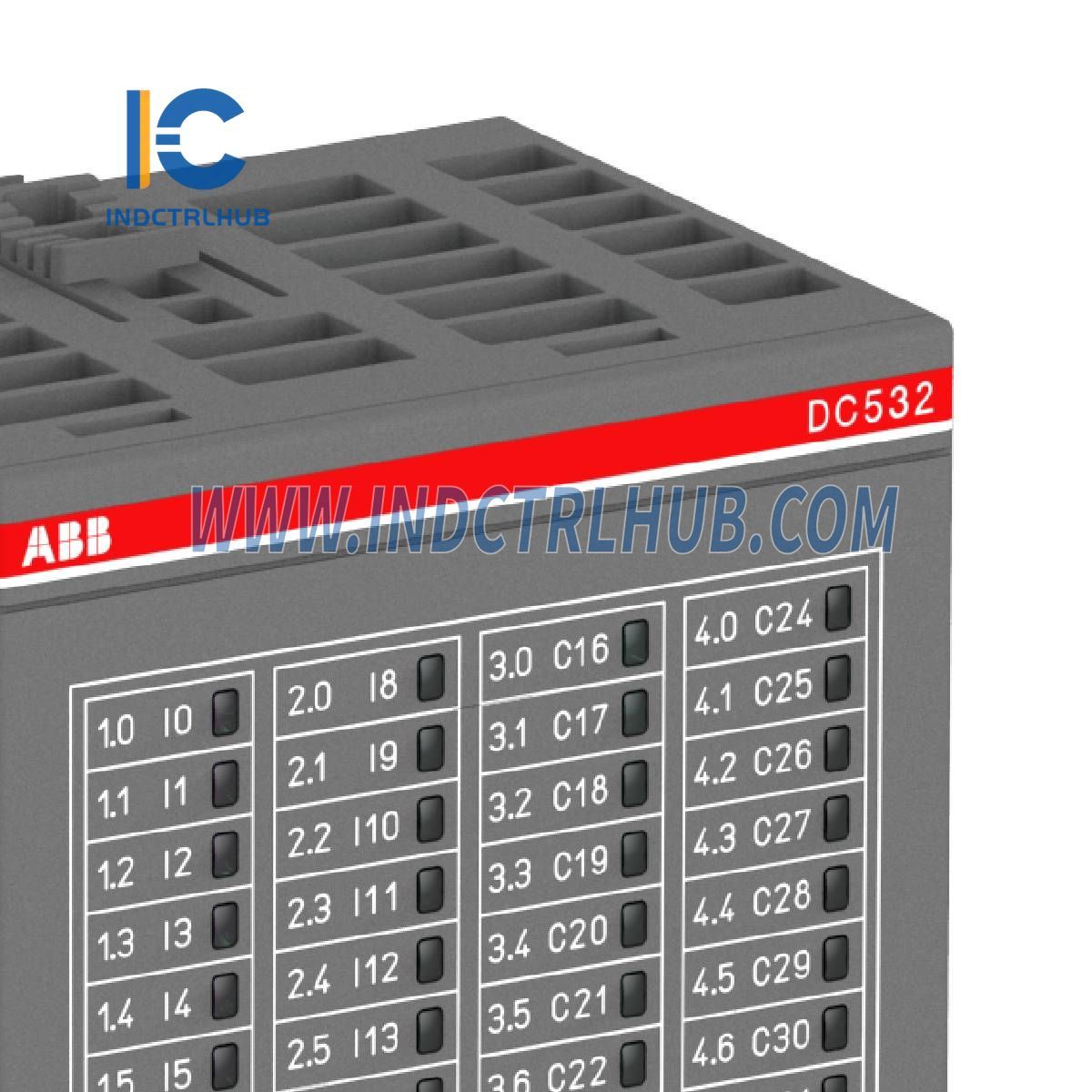

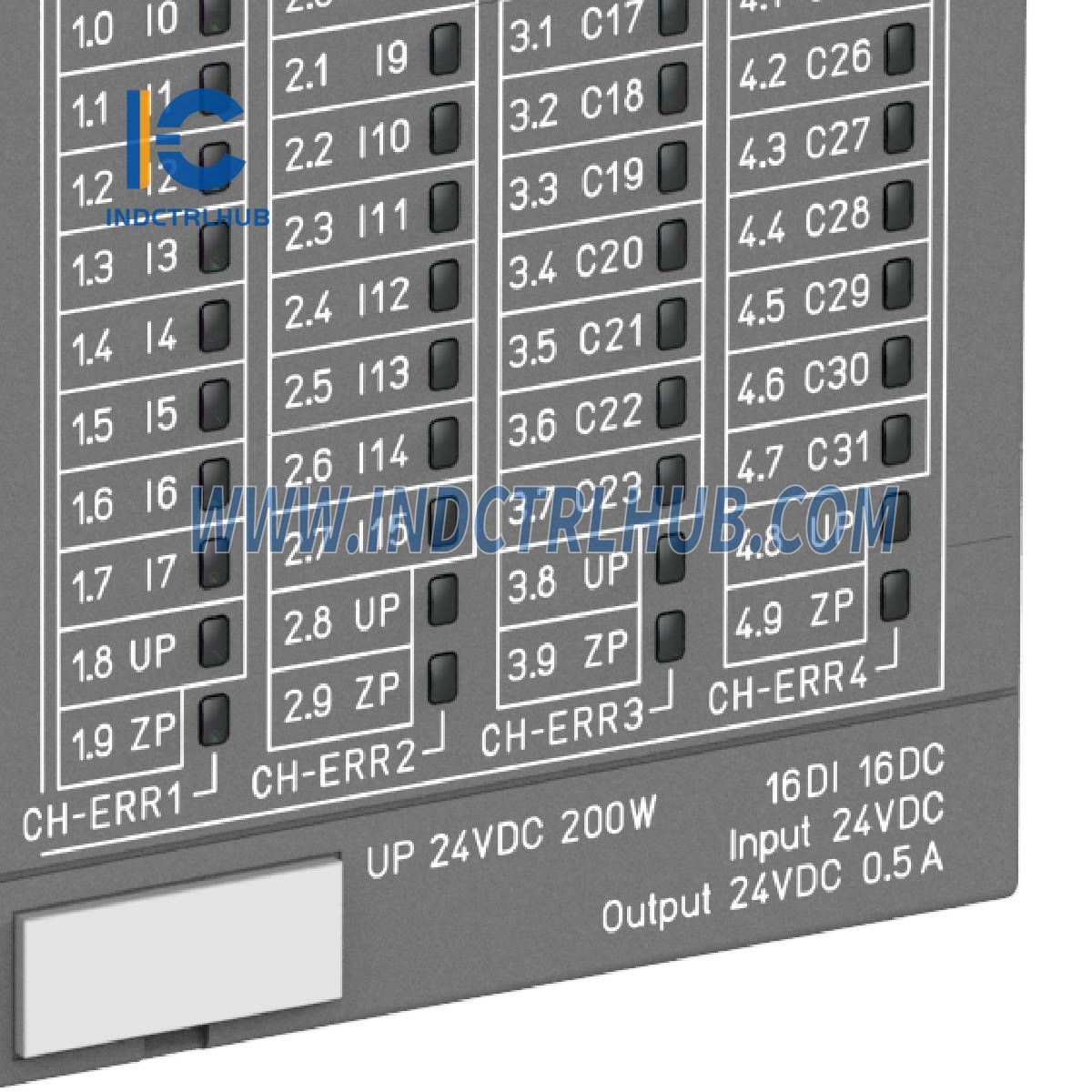

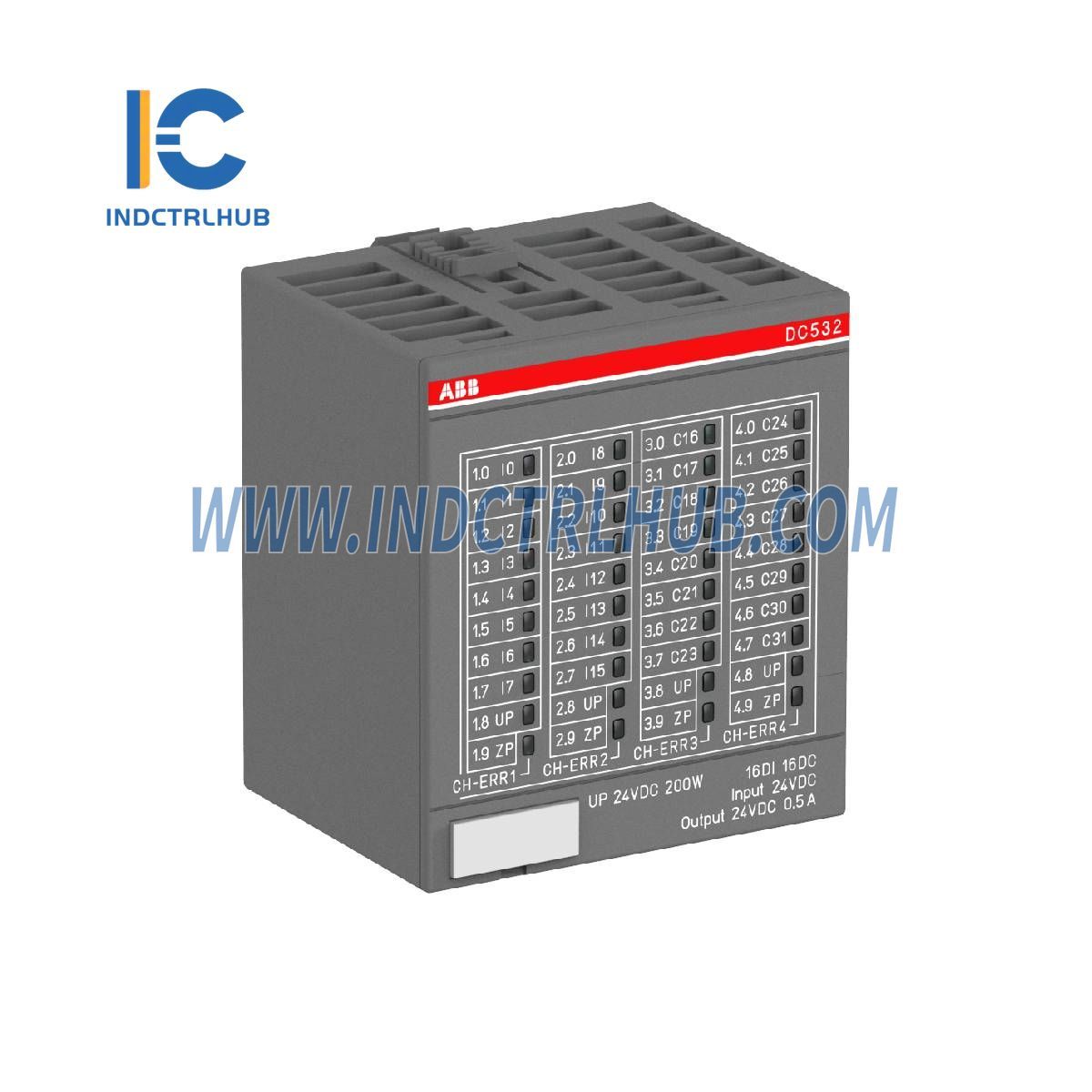

- Manufacturer: ABB
- Model/Part Number: DC532 (1SAP240100R0001)
- Description: Digital Input/Output Module (16 DI: 24VDC, 16 Configurable DI/DO: 24VDC, 0.5A)
General Information
| Attribute | Details |
|---|---|
| Product ID | 1SAP240100R0001 |
| ABB Type Designation | DC532 |
| EAN | 4016779649162 |
| Catalog Description | Digital input/output module. 16 DI: 24VDC, 16 configurable DI/DO: 24VDC 0.5A (DC532) |
| Long Description | DC532: S500 Digital Input/Output Module. 16 DI: 24VDC, 16 configurable DI/DO: 24VDC 0.5A, 1-wire |
| Product Type | Distributed Automation I/Os |
Ordering Information
| Attribute | Details |
|---|---|
| CN8 Code | 85389091 |
| Invoice Description | Digital Input/Output Module. 16 DI: 24VDC, 16 configurable DI/DO: 24VDC 0.5A (DC532) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | Piece |
Dimensions
| Attribute | Details |
|---|---|
| Product Net Weight | 0.114 kg |
| Product Net Depth / Length | 62 mm |
| Product Net Height | 76 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.138 kg |
| Package Level 1 Dimensions (L x W x H) | 84 mm × 71 mm × 72 mm |
| Package Level 1 Units | 1 carton |
Technical Specifications
| Attribute | Details |
|---|---|
| Function | 16 DI: 24VDC, 16 configurable DI/DO: 24VDC 0.5A |
| Number of Digital Inputs | 16 |
| Number of Digital Configurable I/Os | 16 |
| Input Voltage Type | DC |
| Input Current | 5 mA |
| Maximum Input Voltage | 0 – 30V |
| Delay Time (τ) | Signal Exchange 0.1 – 32 ms |
| Output Type | Transistor |
| Output Voltage Type | DC |
| Output Current | 0.5A |
| Output Voltage Range | 20.4 – 28.8V |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 – 28.8V DC |
Environmental & Compliance
| Attribute | Details |
|---|---|
| SCIP Code | 37dc1f5d-8a13-4e11-9ee5-efcbc63dab42 (Germany - DE) |
| WEEE Compliance | Business to Business (B2B) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
