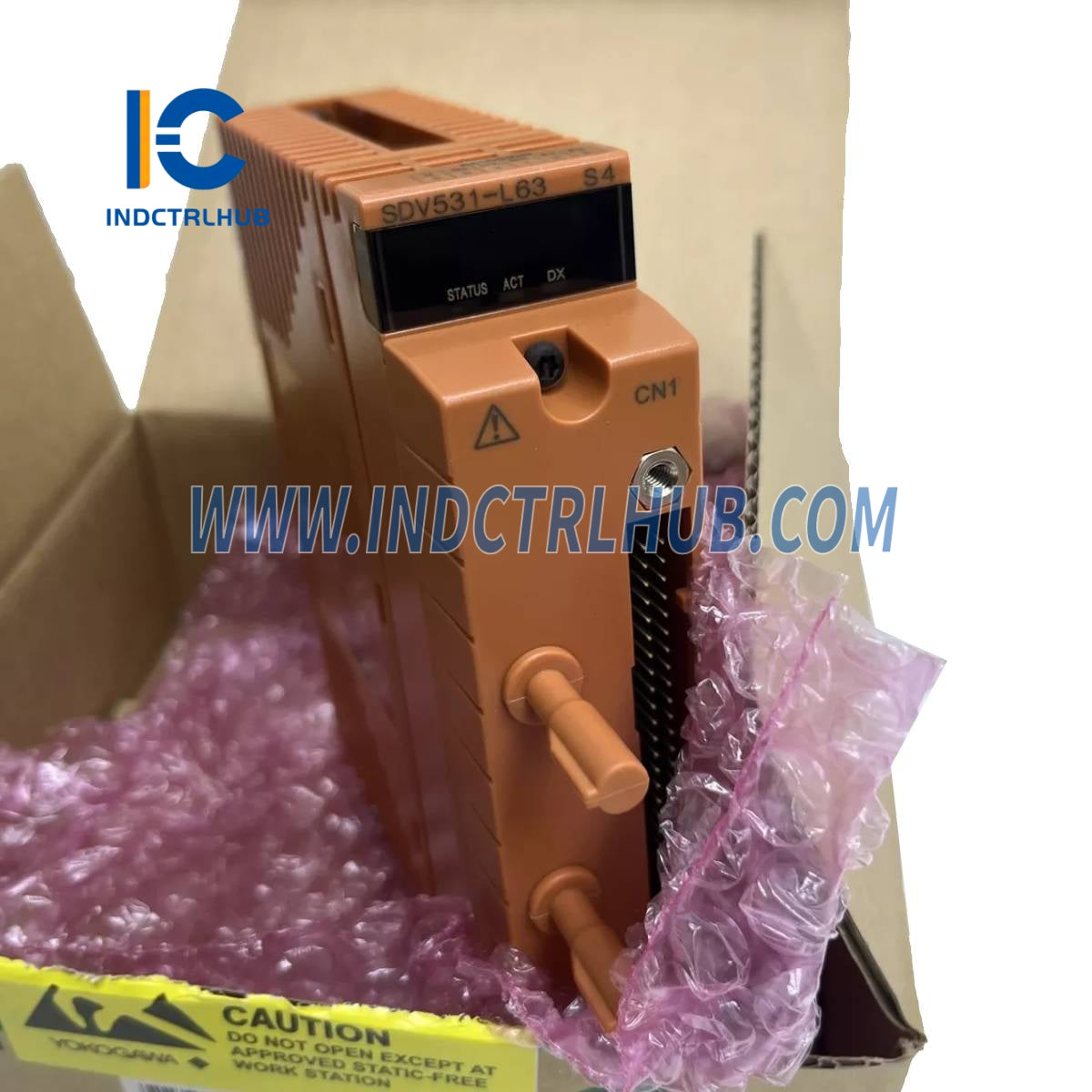

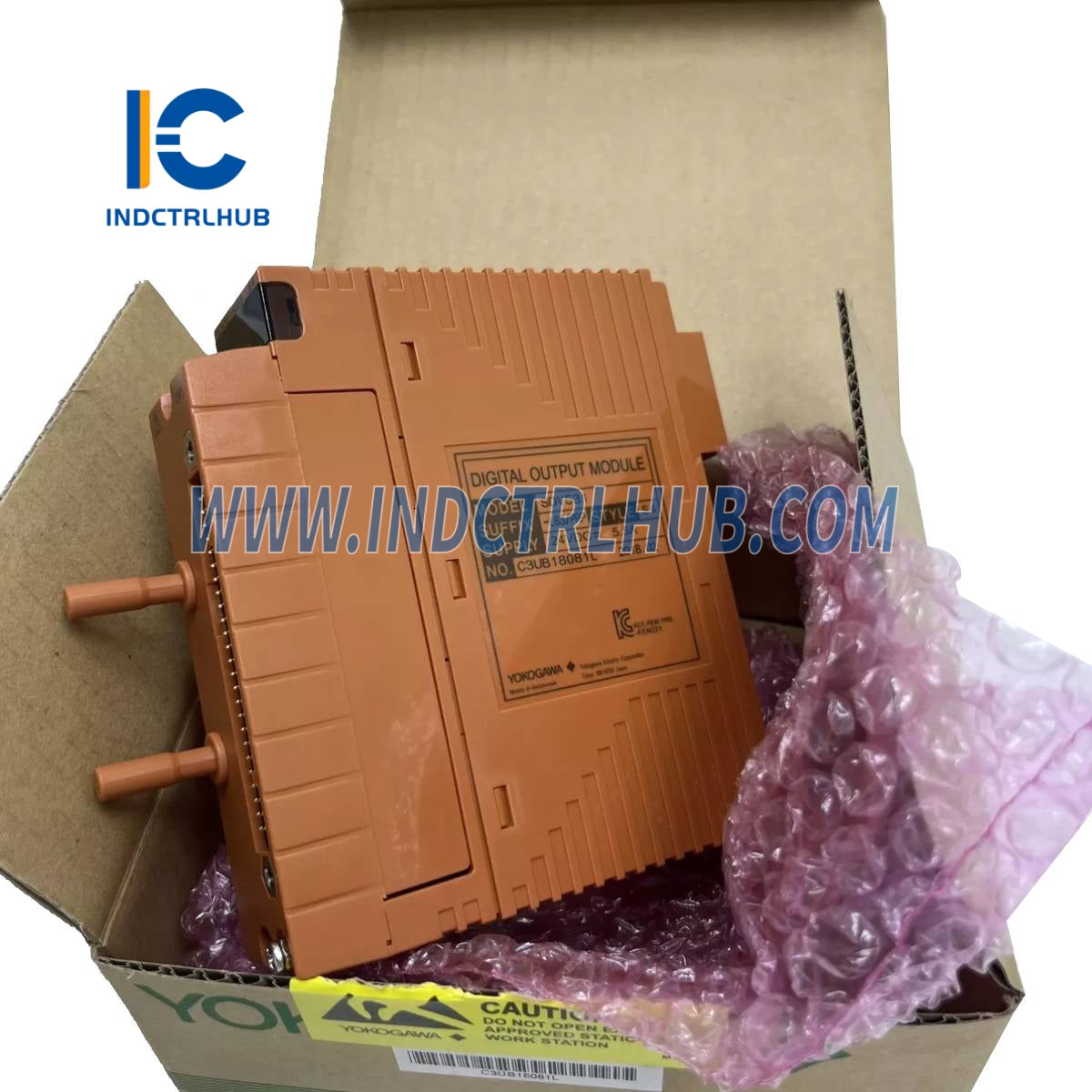

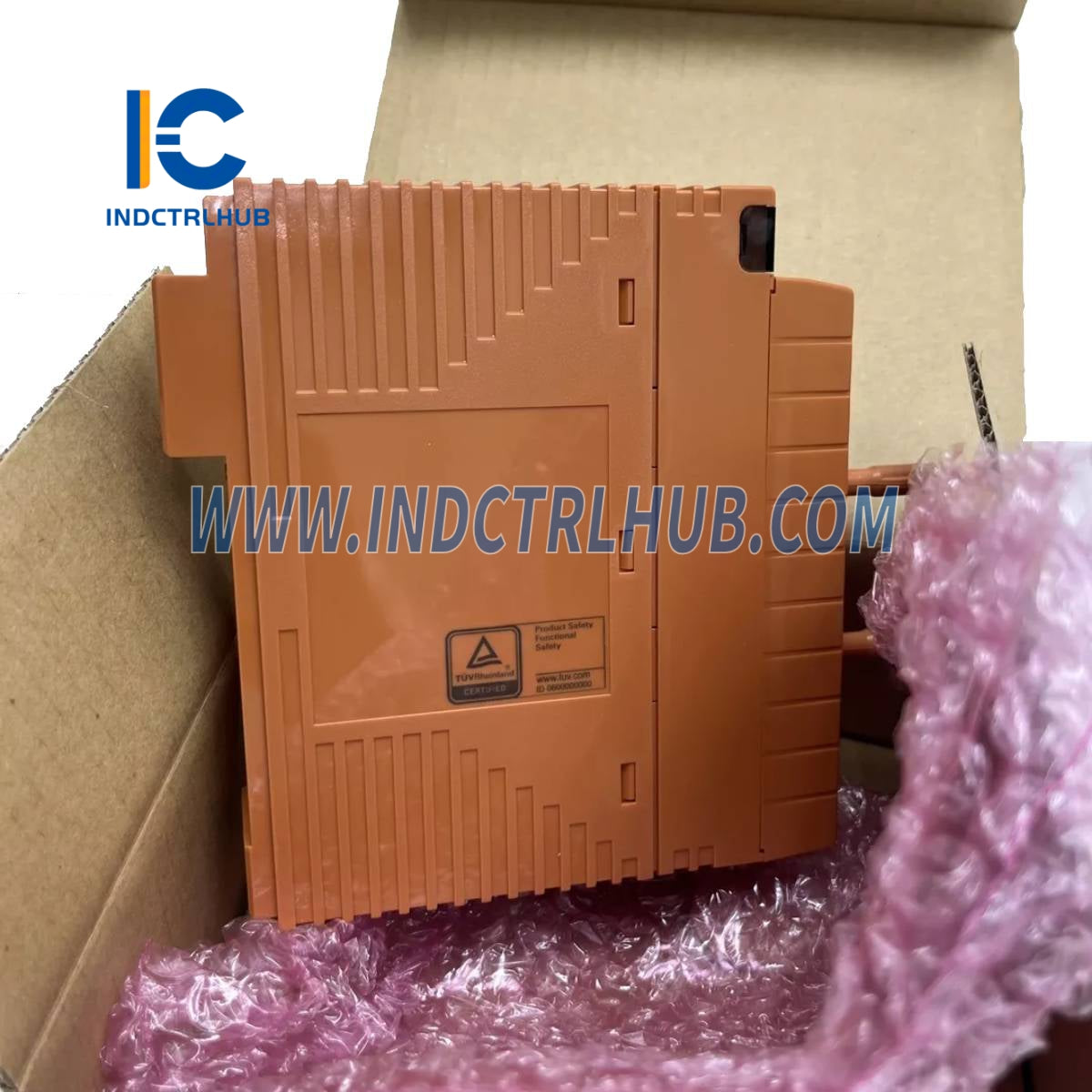

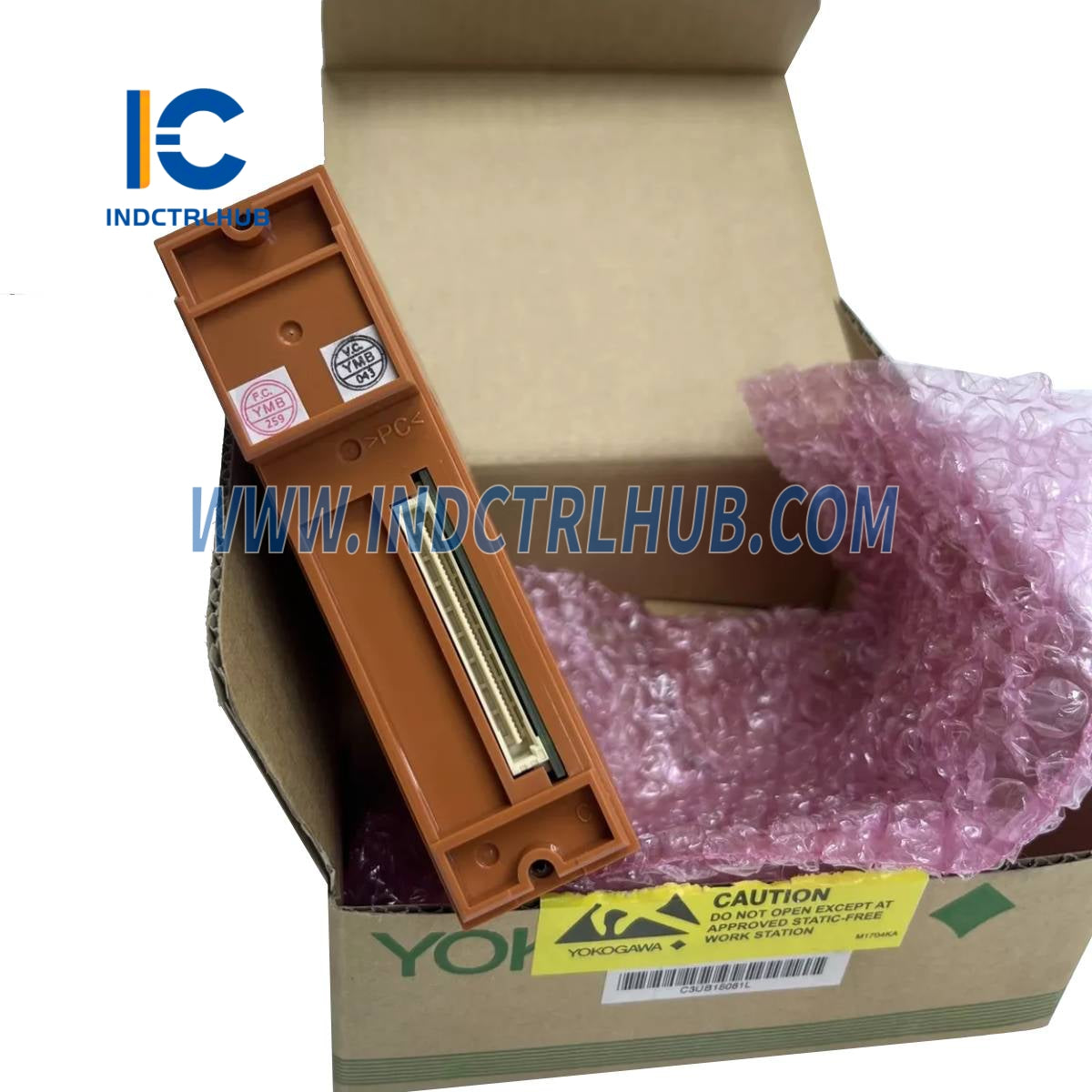

Yokogawa SDV531-L63 8-Channel Digital Output Module

Model/Part Number

SDV531-L63

Description

8-Channel Digital Output Module (24 V DC, Module Isolation, Long Distance Type)

Model

SDV531

Output Channels

8 channels, with module isolation

Output Voltage

24 V DC

Output Voltage Drop

≤ 1 V

External Power Supply Rating

24 V DC, 5 A minimum

External Power Supply Range

24 V DC +20% / –10%

Maximum Leak Current (OFF)

1.6 mA

Output Format

Current source

Maximum Load Current

0.6 A/output line (Max. 4.8 A for total 8 outputs)

Minimum Load Current

35 mA

Load Resistance Range

40 to 685 Ω

Output Response Time

≤ 30 ms

Withstand Voltage

2 kV AC (1 min) between output signals and system (negative lines collectively)

Current Consumption

Max. 280 mA (5 V DC), Max. 140 mA (24 V DC)

Weight

~0.28 kg (pressure clamp or MIL cable)~0.34 kg (with interface adapter)

External Connections

Pressure clamp terminal, MIL cable, or signal cable (AKB331, AKB651)

SDV531

Digital Output Module (8-ch, 24 V DC, Module Isolation)

-L

Long Distance Type

6

With signal cable interface adapter, no explosion protection

3

With ISA Standard G3, temperature range: –20 to 70 °C

/B4S00

Terminal block, no surge absorber (Model: STB4S-00)

/B4S10

Terminal block, with surge absorber (Model: STB4S-10)

/B4D00

Dual-redundant terminal block, no surge absorber (Model: STB4D-00)

/B4D10

Dual-redundant terminal block, with surge absorber (Model: STB4D-10)

/PRP

Prevention pin of false insertion

/CCC01

MIL cable connector cover for flat ribbon cable (Model: SCCC01)

/CCC02

MIL cable connector cover for discrete wire (Model: SCCC02)
