Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |

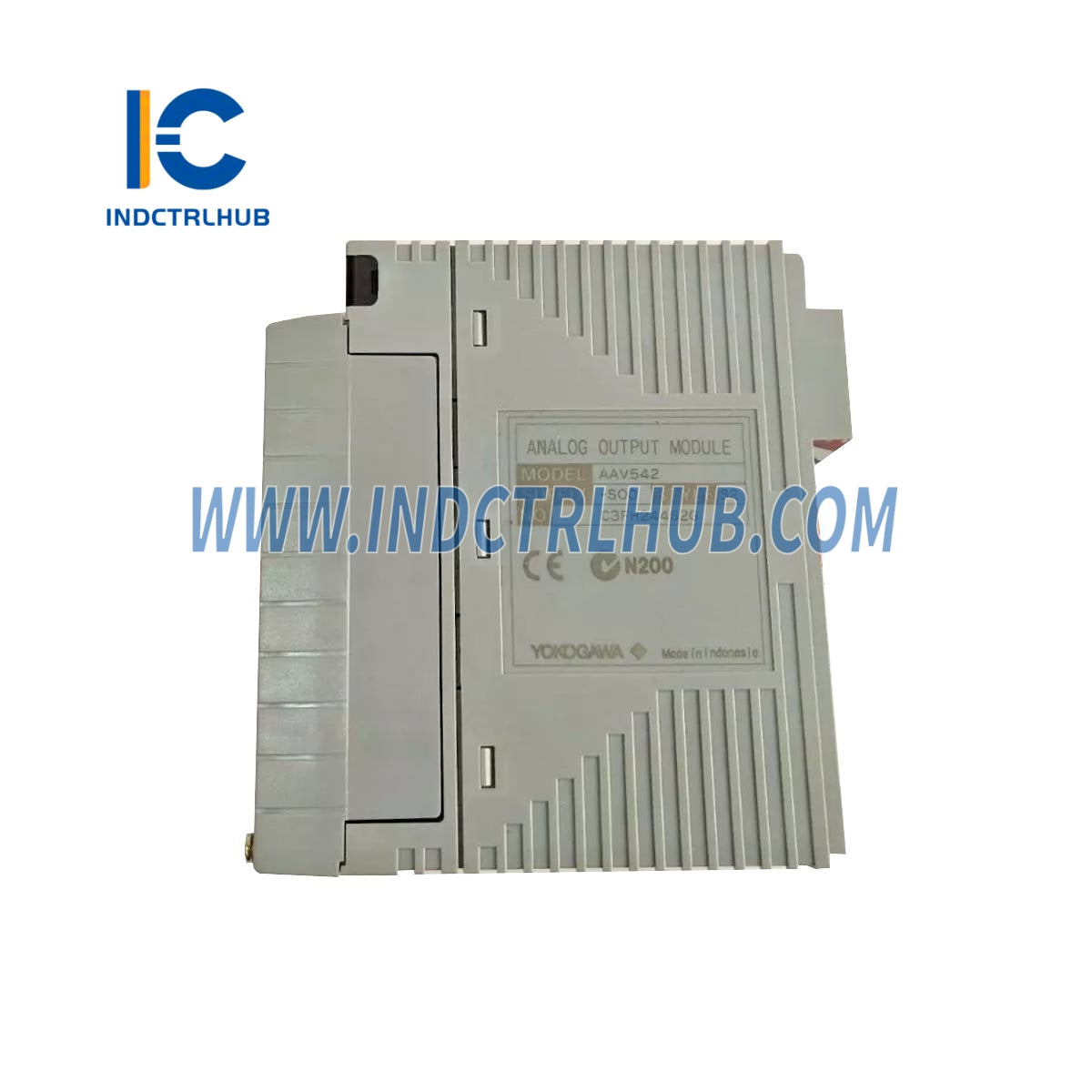

AAV542-S00 |
|
Description |
Voltage Output Module (-10 to +10 V DC, 16-Channel, Non-Isolated) |
🔹 Description
The AAV542-S00 is a 16-channel non-isolated analog voltage output module that provides signals in the range of -10 V to +10 V DC. It supports dual-redundant configuration, making it suitable for process automation systems where signal reliability is essential. The “S00” configuration indicates standard type with no explosion protection and basic temperature rating.
🔹 Technical Specifications
|
Specification |
Details |
|---|---|
|
Model Base |
AAV542 |
|
Output Channels |
16, non-isolated |
|
Output Signal |
-10 to +10 V DC |
|
Withstanding Voltage |
Not applicable (non-isolated) |
|
Allowable Load Resistance |
10 kΩ or larger |
|
Accuracy |
Larger of ±0.3 %/FS and ±12 mV |
|
Data Update Period |
10 ms |
|
Output Step Response Time |
40 ms |
|
Temperature Drift |
Larger of ±0.1 %/10 °C and ±10 mV/10 °C |
|
Maximum Current Consumption |
450 mA (5 V DC) |
|
Weight |
0.2 kg |
|
External Connections |
Pressure clamp terminal, KS cable, MIL connector cable |
🔹 Model & Suffix Code Breakdown
|
Code |
Meaning |
|---|---|
|
-S |
Standard type (no digital/HART communication) |
|
0 |
Basic type (no special temperature or coating options) |
|
0 |
No explosion protection |
🔹 Optional Accessories
|
Option Code |
Description |
|---|---|
|
/K4A00 |
With KS Cable Interface Adapter [Model: ATK4A-00] |
|
/A4S00 |
With Pressure Clamp Terminal Block [Model: ATA4S-00] |
|
/A4S10 |
With Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10] |
|
/A4D00 |
With Dual Pressure Clamp Terminal Block [Model: ATA4D-00] |
|
/A4D10 |
With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10] |
|
/CCC01 |
With Connector Cover for MIL Cable [Model: ACCC01] |
