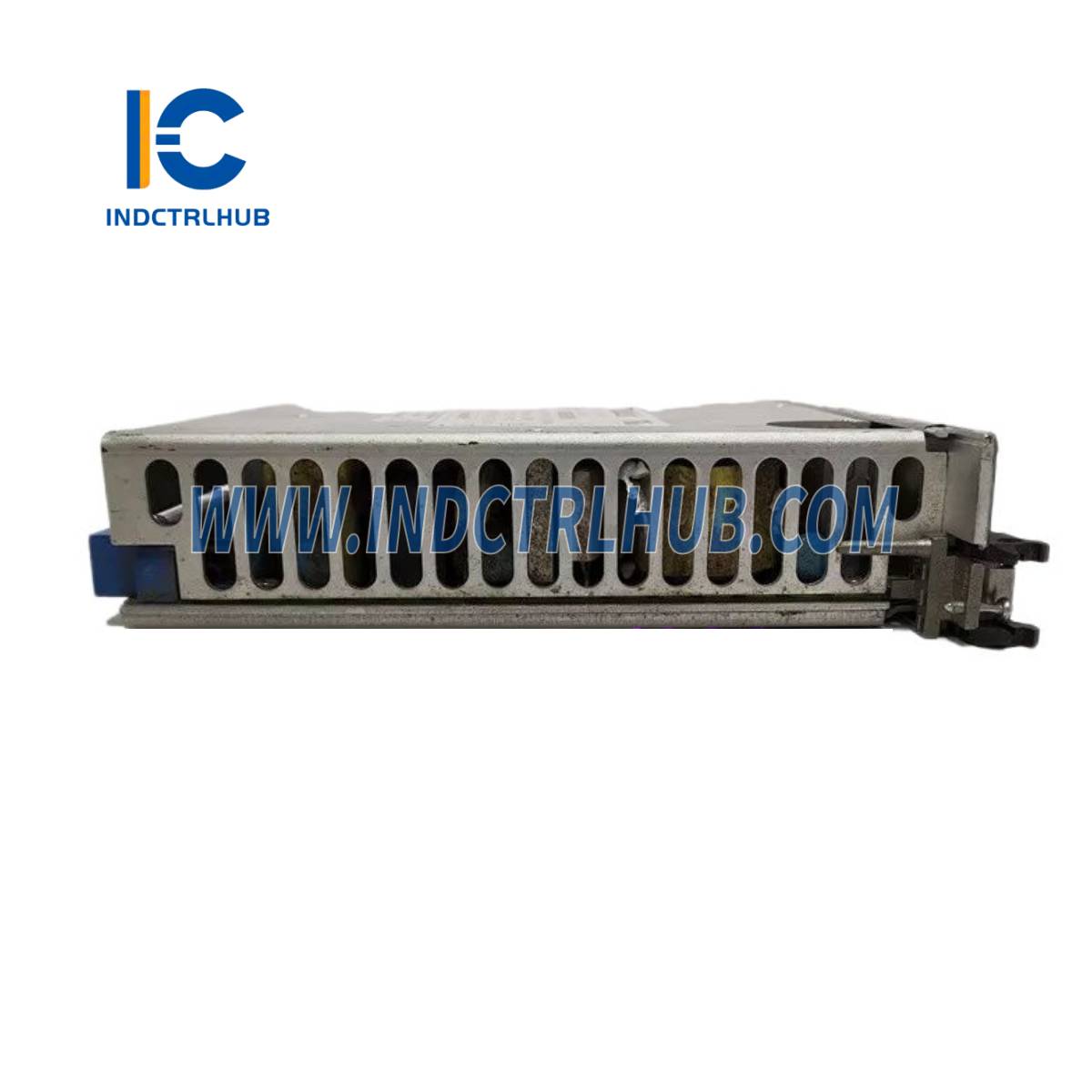

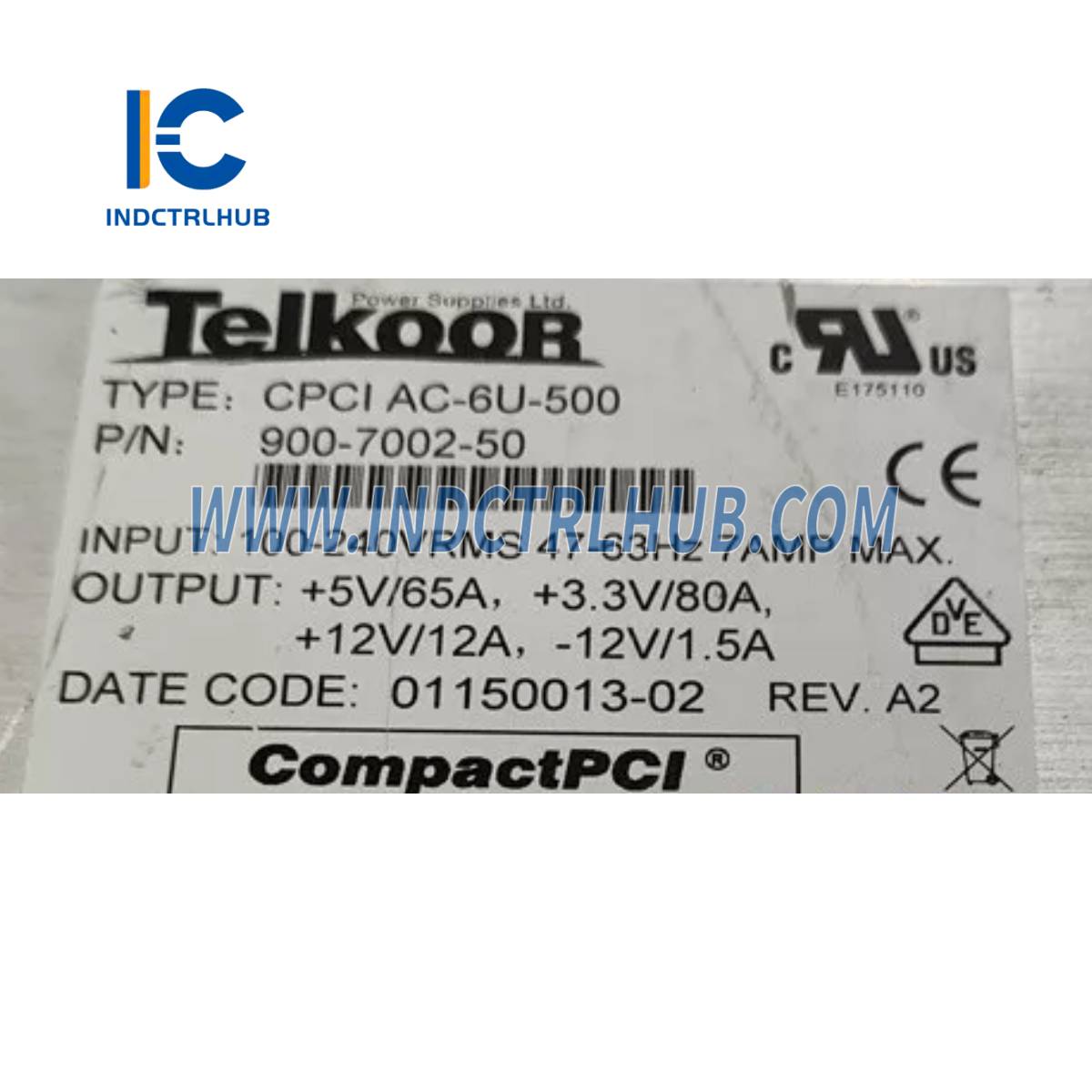

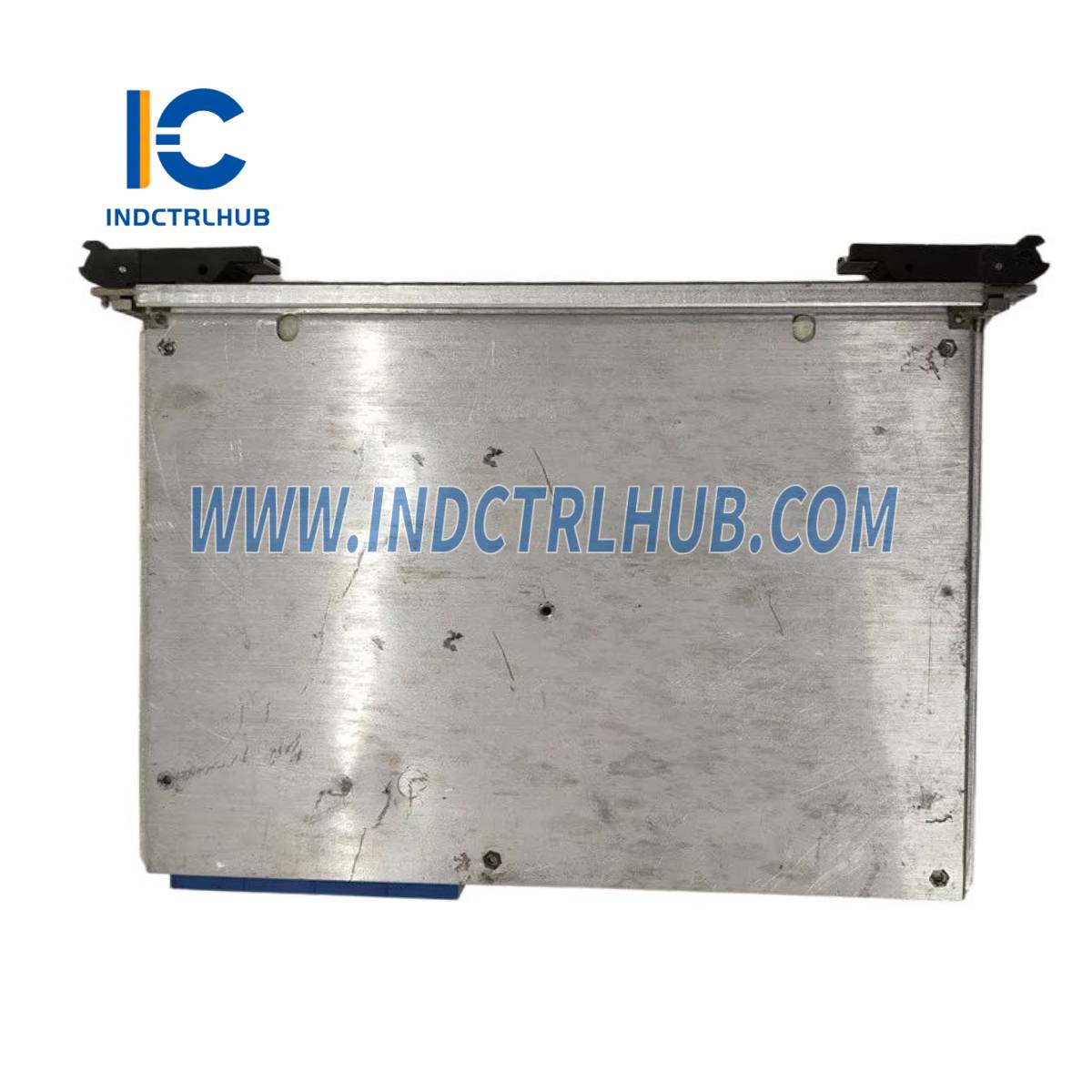

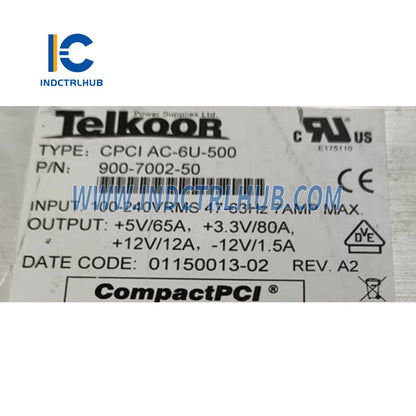

TEIKOOR CPCIAC-6U-500 900-7002-0000 Power Supplies

Model/Part Number

CPCIAC-6U-500 900-7002-0000

Description

Power Supplies

Input Voltage

85 - 264Vac, auto range, single-phase and DC input 110V-240Vdc

Frequency

47-63Hz

Inrush Current

50 A maximum at 230Vac

Power Factor

0.98 typical at 230Vac, full load  0.99 typical at 115Vac, full load

Efficiency

>80% at 230Vac, full load rated power  >76% at 120Vac, full load rated power

Input Protection

Internal Line Fuse: IEC type, 10A 250Vac slow blow

Brown-Out Protection

75 to 300Vac for 50Msec

Output Power

500W with 300LFM forced air cooling

Line Regulation

±1%

Load Regulation

V1, V2: ±1%  V3: 12V ±0.6V  V4: -12V ±0.6V (with minimum load of 10A on 3.3V output)

Ripple & Noise (20 MHz bandwidth, across 1uF ceramic and 120uF electrolytic capacitor paralleled)

V1: 50mV p-p  V2: 50mV p-p  V3 & V4: 120mV p-p

Overload & Short Circuit Protection

Auto Recovery  V1 & V2: 130% max  V3 & V4: 200% max

Initial Set Point Tolerance

±1%

Overshoot & Undershoot

0% at turn ON

Turn On Delay

1 sec. Maximum

Over-voltage Protection

110 to 130% with latched shutdown

Temperature Protection

System shutdown due to excessive internal temperature, automatic reset

Operating Temperature

-5ºC to +55ºC full load with 300LFM Forced Air Cooling  De-rating linearly above 55ºC by 2.5% per ºC

Storage Temperature

-40ºC to +85ºC

Humidity

Up to 95% RH non-condensing

Shock

Peak acceleration 10GPK max.

Vibration

Random vibration, 10Hz to 500Hz, 3-axis, 1.9GRMS max.

Altitude

Operation: 6K ft  Non-operation: 40K ft

MTBF

400,000 hours per Bellcore standard B332 Gb @ 30ºC

Dimensions

10.14”H x 1.60”W x 6.40”D (261.9mm x 40.34mm x 169.4mm)

Weight

1500g
