Product Description
Product Overview

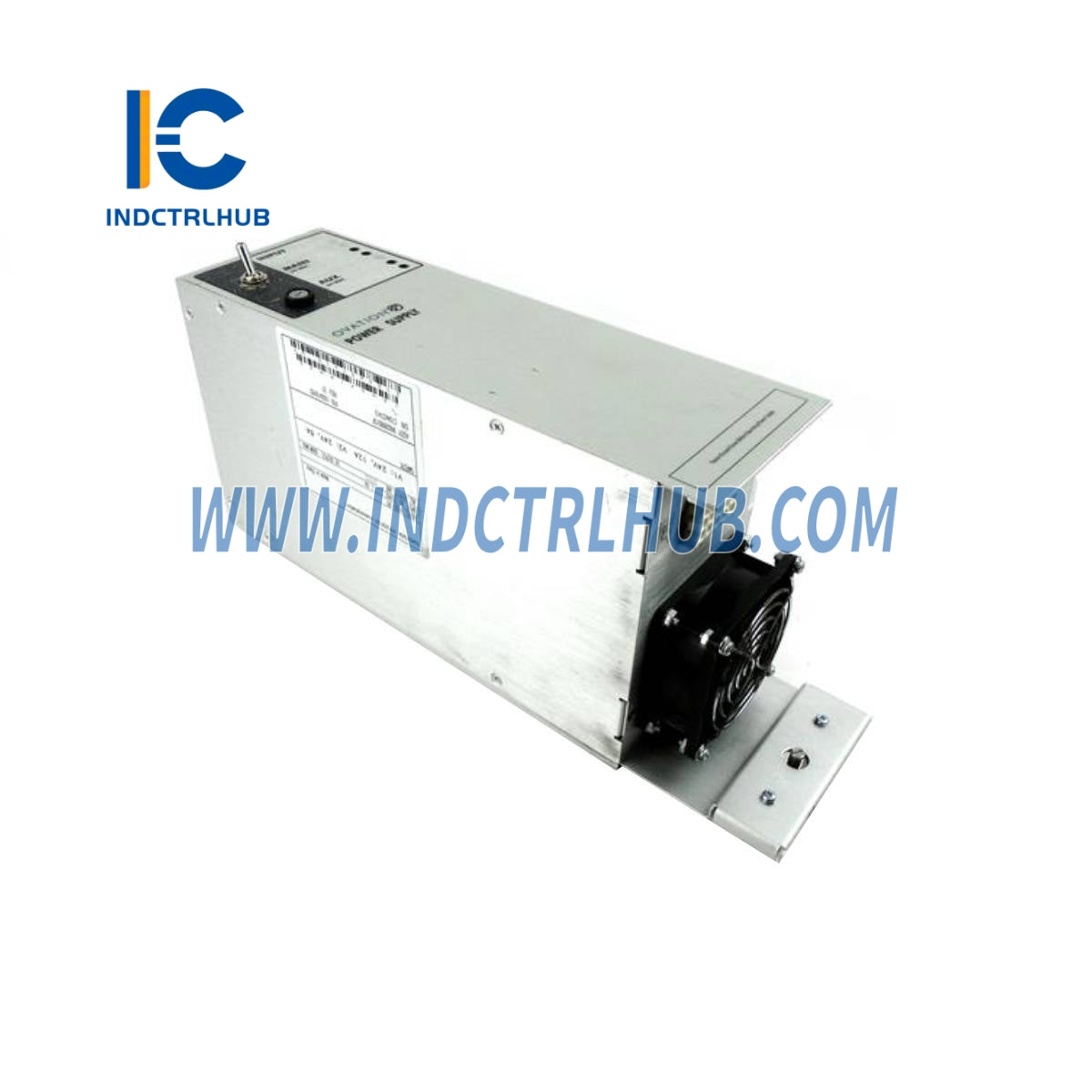

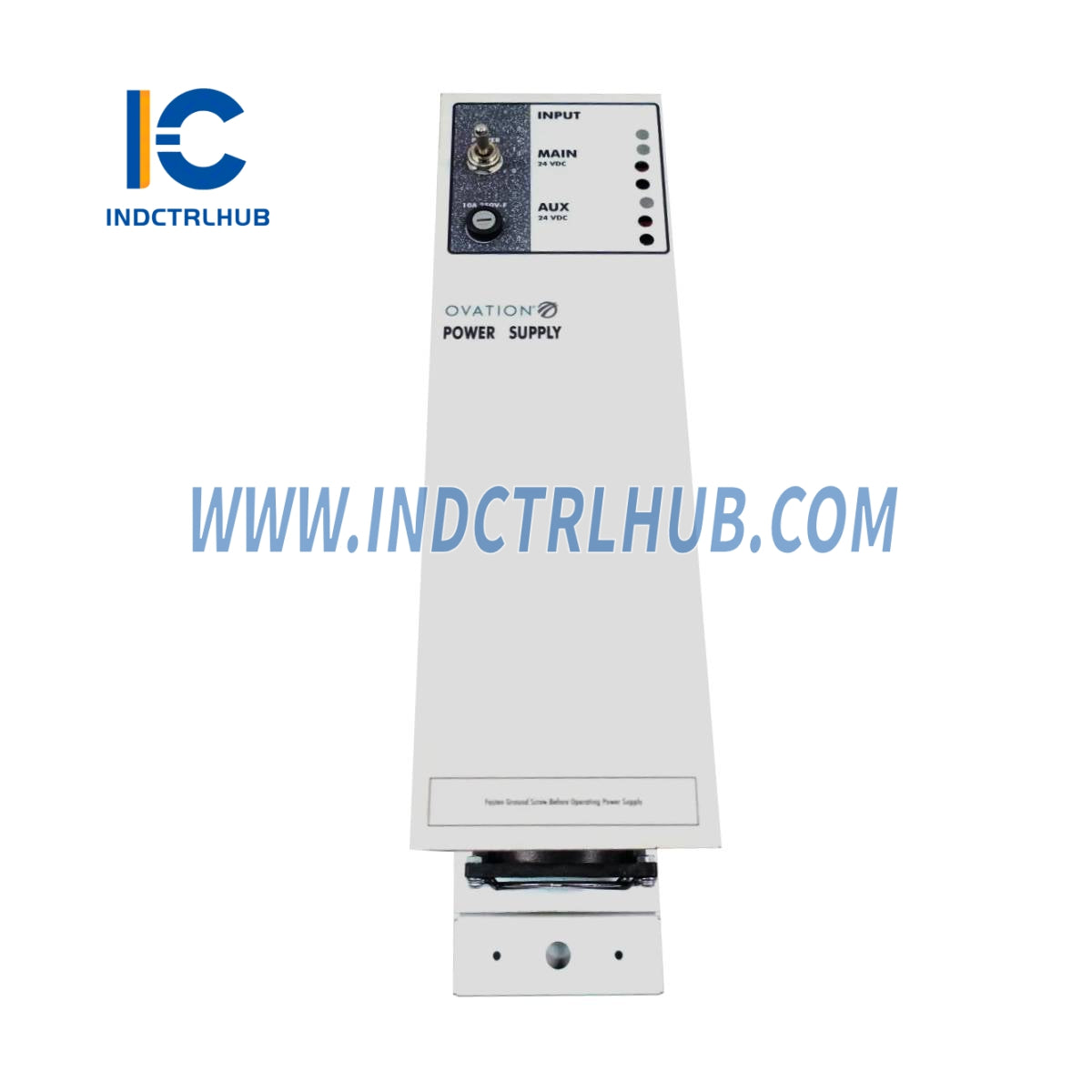

The Emerson WH5D-2FF 1X00416H03 is an Ovation Power Supply Module designed to provide reliable and efficient power to components within Emerson’s Ovation Distributed Control System (DCS). Manufactured by Emerson, a global leader in industrial automation solutions, this module delivers a stable 24 VDC output to support Ovation controllers, I/O modules, and other system devices. It features a wide input voltage range of 90-250 VDC and a maximum output capacity of 500 watts, making it suitable for critical applications in industries such as power generation, oil and gas, and process control. The WH5D-2FF designation indicates a specific configuration within the Ovation family, ensuring seamless integration and robust performance in industrial environments requiring uninterrupted power.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Emerson |
| Series | Ovation DCS |

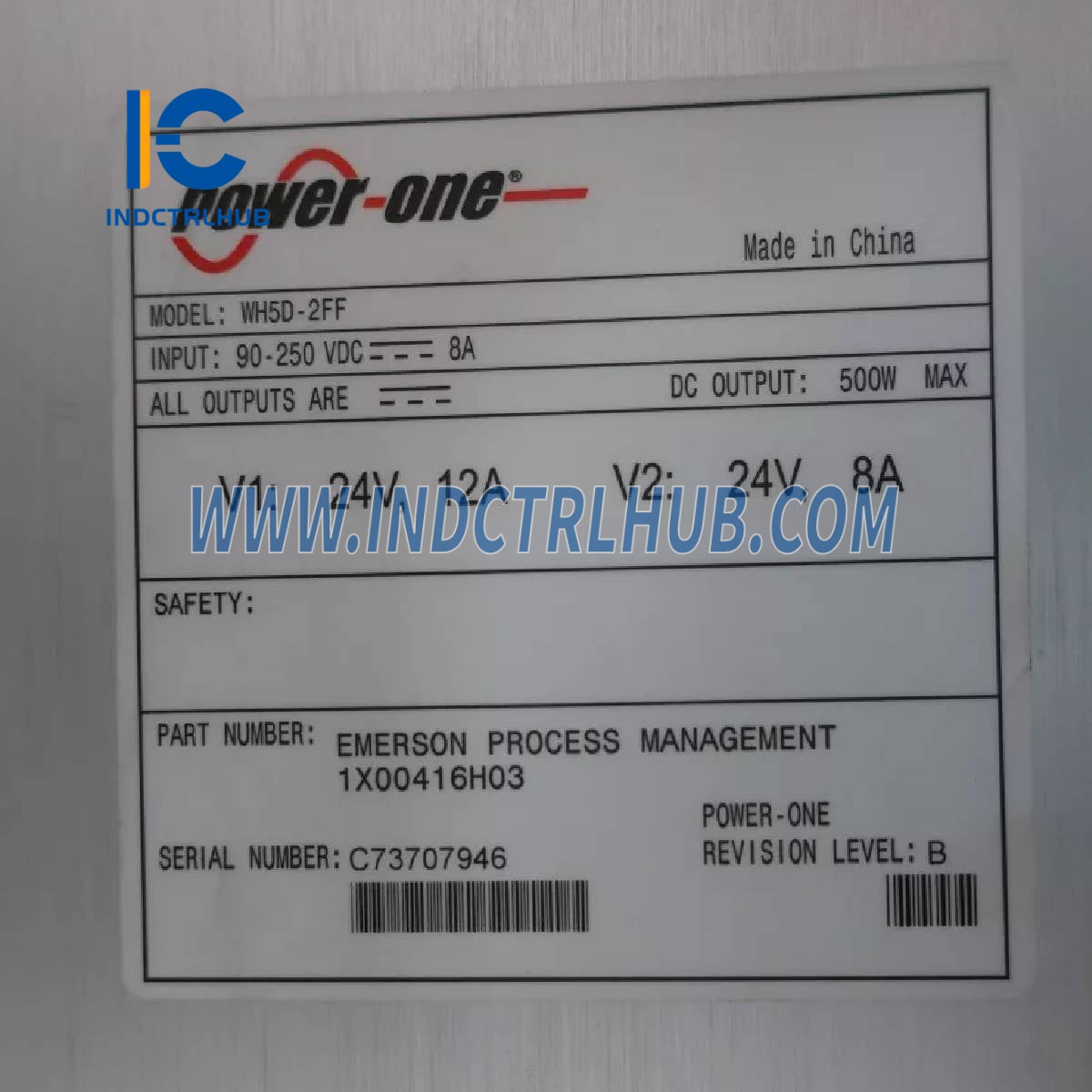

| Model/Part Number | WH5D-2FF 1X00416H03 |
| Description | Ovation Power Supply Module |
| Input Voltage | 90-250 VDC |
| Input Current | 8 A |
| Output Voltage | 24 VDC |
| Output Current | 12 A |
| Power Rating | 500 W maximum |
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Dimensions | 200 mm H x 100 mm W x 150 mm D (7.87 in x 3.94 in x 5.91 in) |
| Weight | 1.5 kg (3.3 lb) |
