Product Description
Product Overview

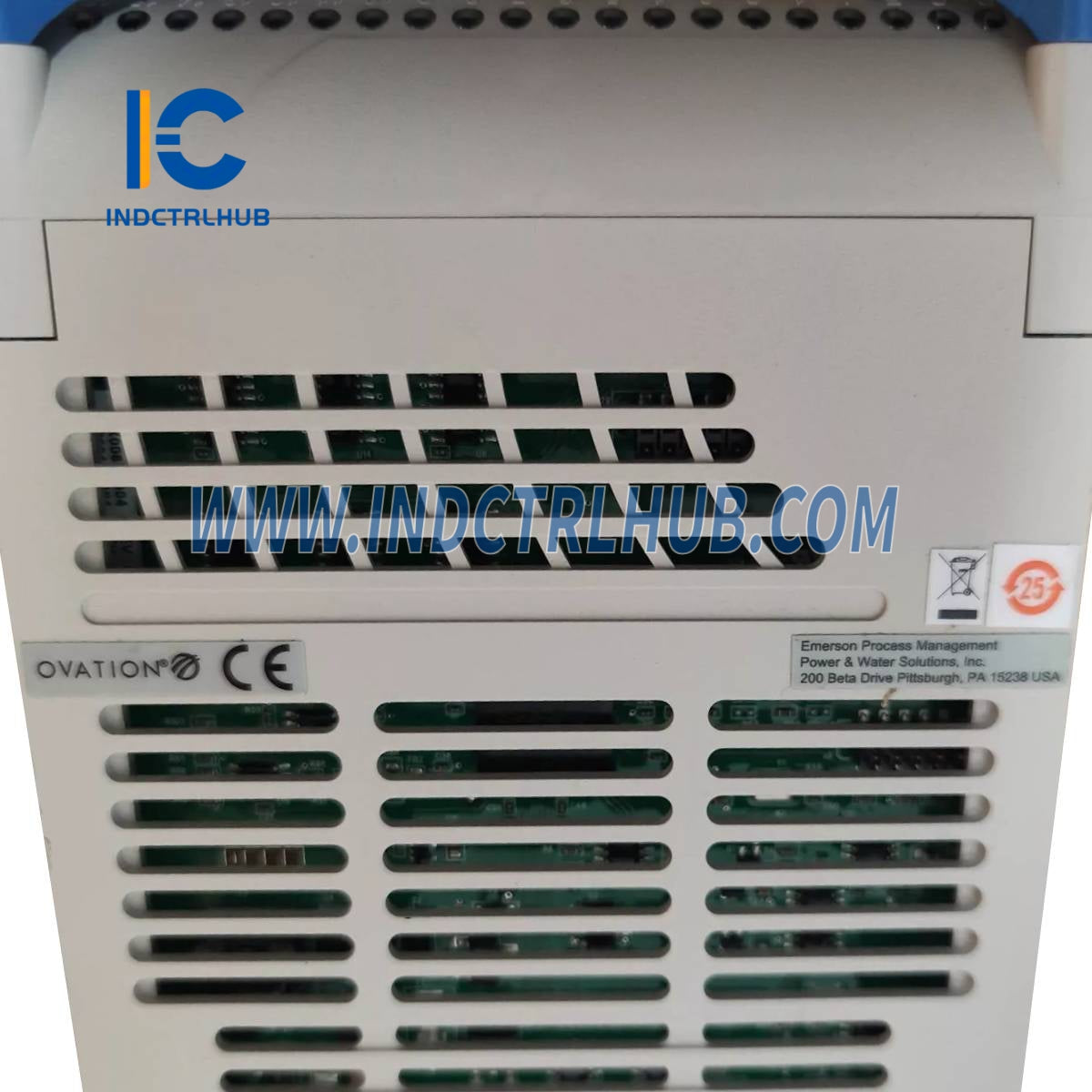

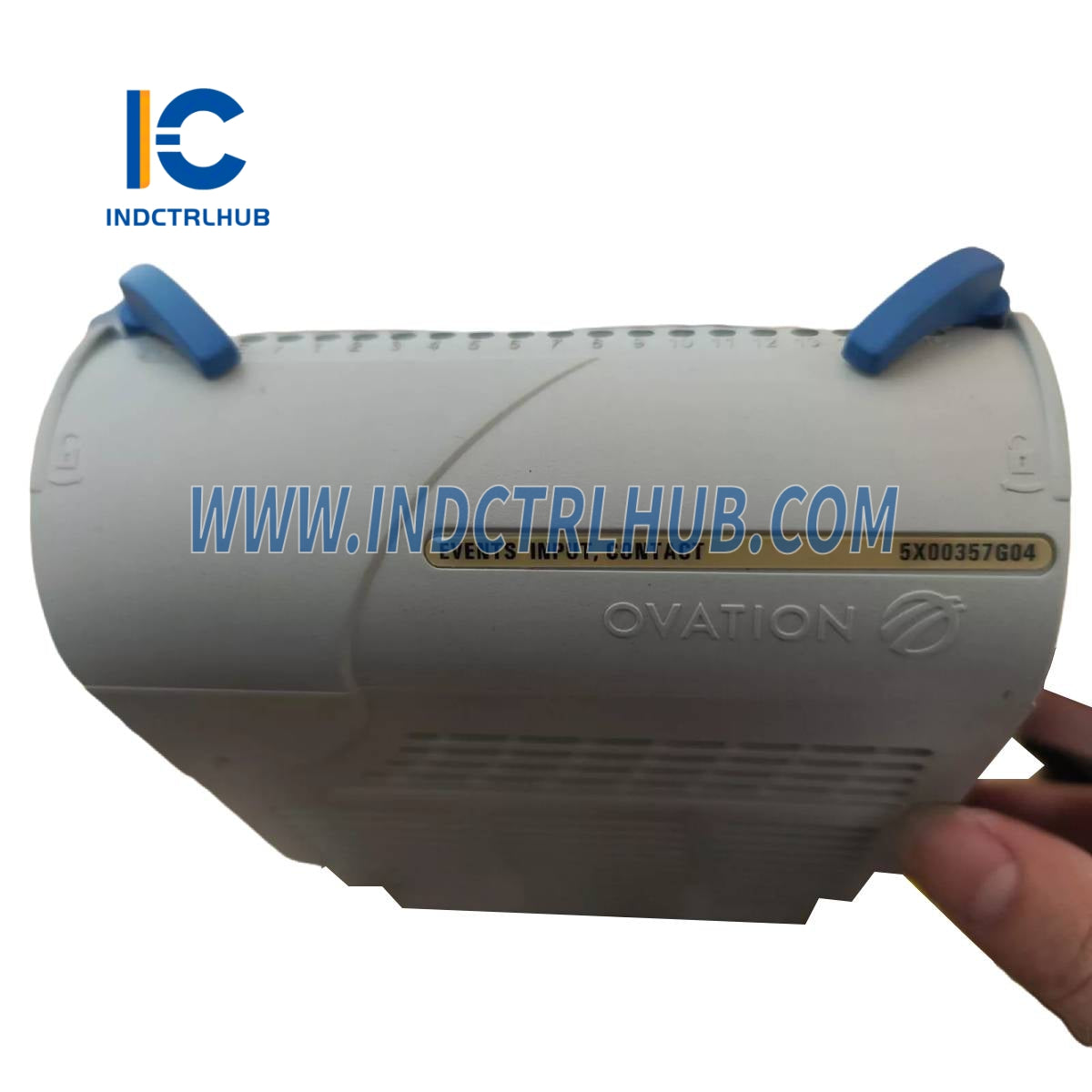

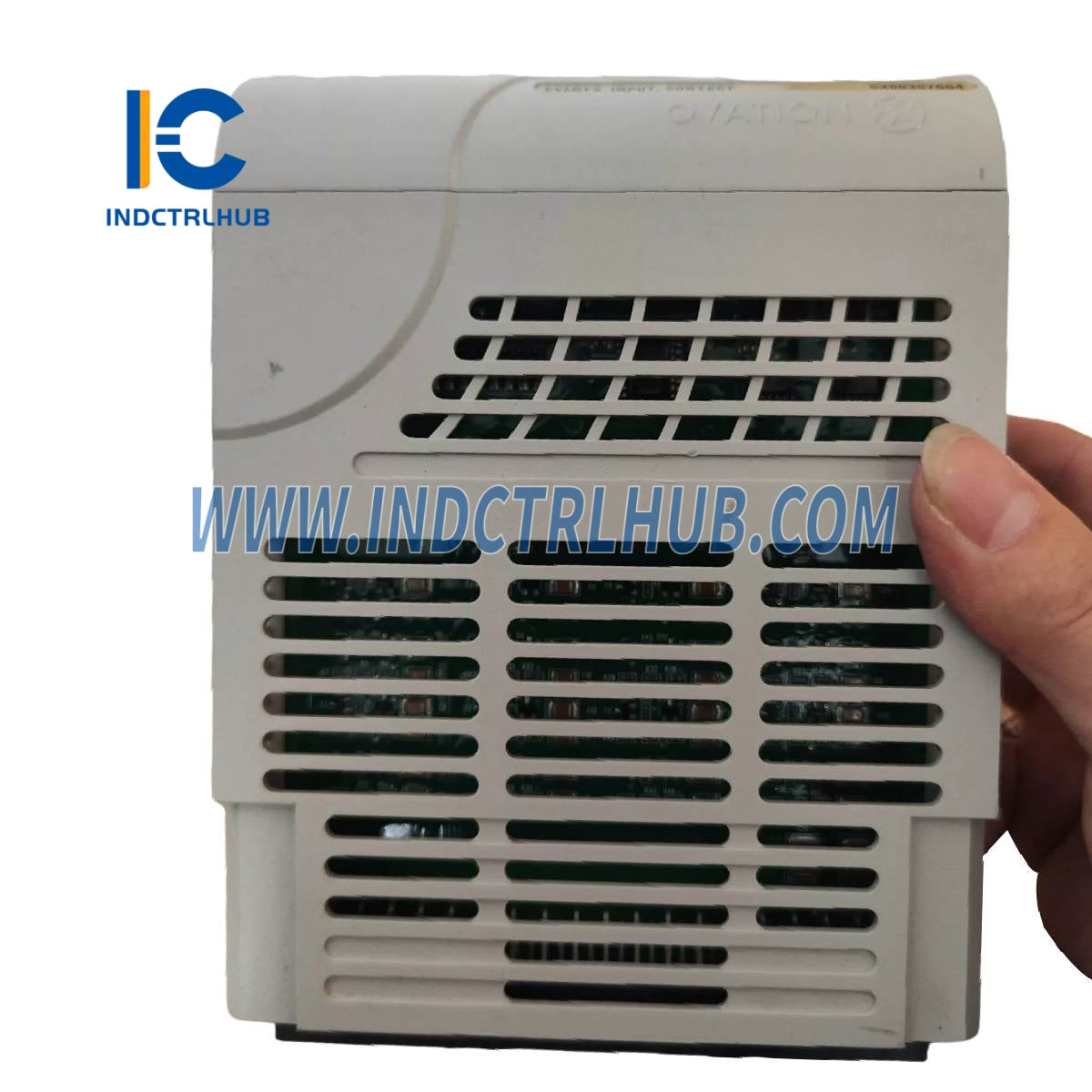

The Emerson 5X00357G04 is an Enhanced Events Input Module designed for the Ovation Distributed Control System (DCS). Manufactured by Emerson, this module is engineered to capture and process digital input signals with advanced capabilities for Sequence of Events (SOE) recording. It supports precise time-stamping and wire-break detection, making it ideal for industrial applications such as power generation, oil & gas, and water treatment, where detailed event logging is critical for diagnostics and operational reliability. The “G04” suffix indicates a specific configuration, typically with 48 V DC on-card contact wetting, distinguishing it from other variants like G05 (24 V DC).
Technical Specifications
The 5X00357G04 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 5X00357G04 |
| Manufacturer | Emerson |
| Description | Enhanced Events Input Module |
| Series | Ovation DCS |
| Input Type | Digital, 48 V DC on-card contact wetting |
| Number of Channels | 16 |
| Power Supply | 24 V DC (via Ovation controller or power bus) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 0.5 kg (1.1 lbs) |
Additional Details
The 5X00357G04 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Captures and time-stamps digital events with wire-break detection |
| Mounting | Plugs into Ovation I/O base or rack |
| Connectivity | Terminal block for field wiring, bus connection to controller |
| Features | 1 ms event resolution, wire-break detection, hot-swappable |
| Certifications | Designed for industrial safety standards (e.g., CE, UL) |
