Product Description
Product Overview

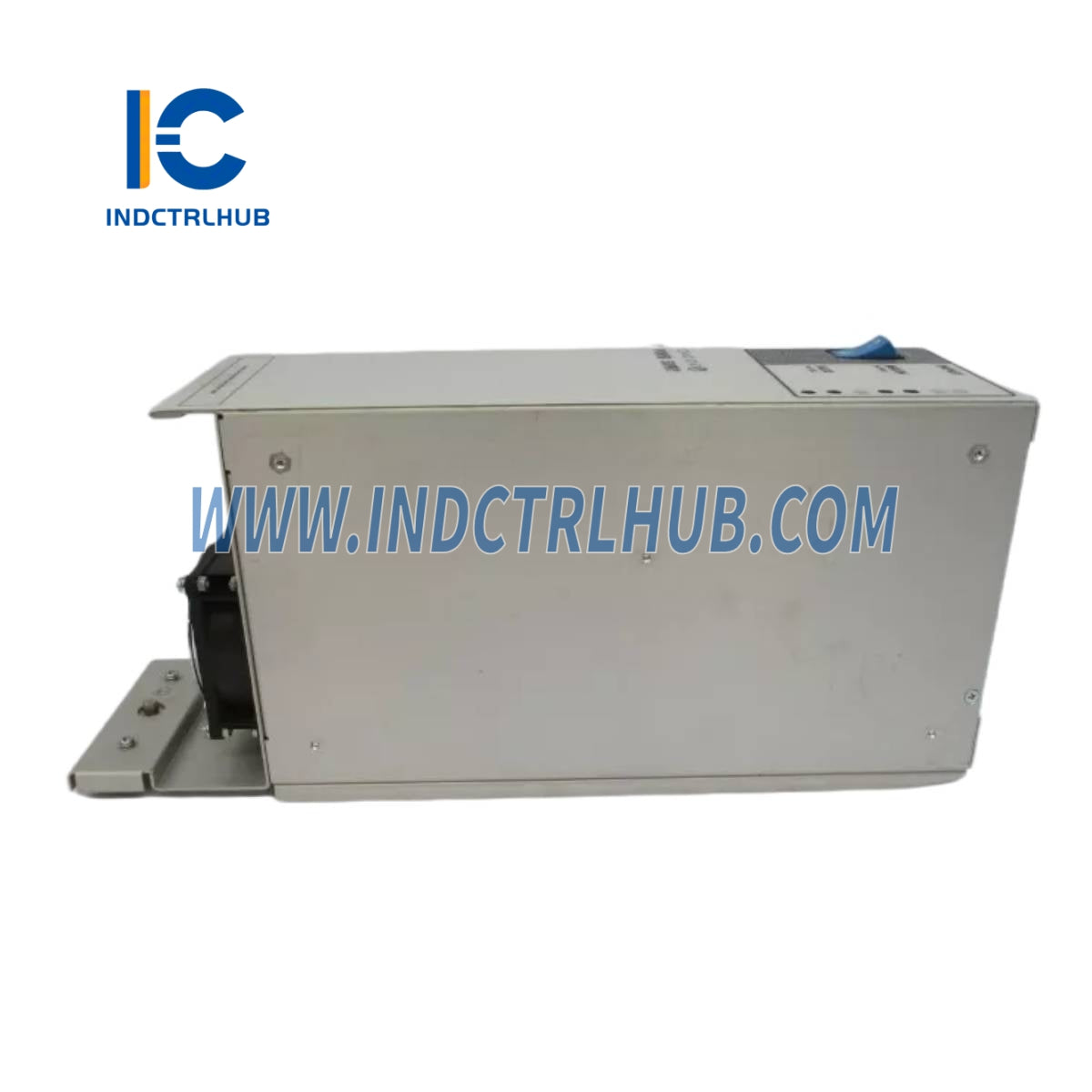

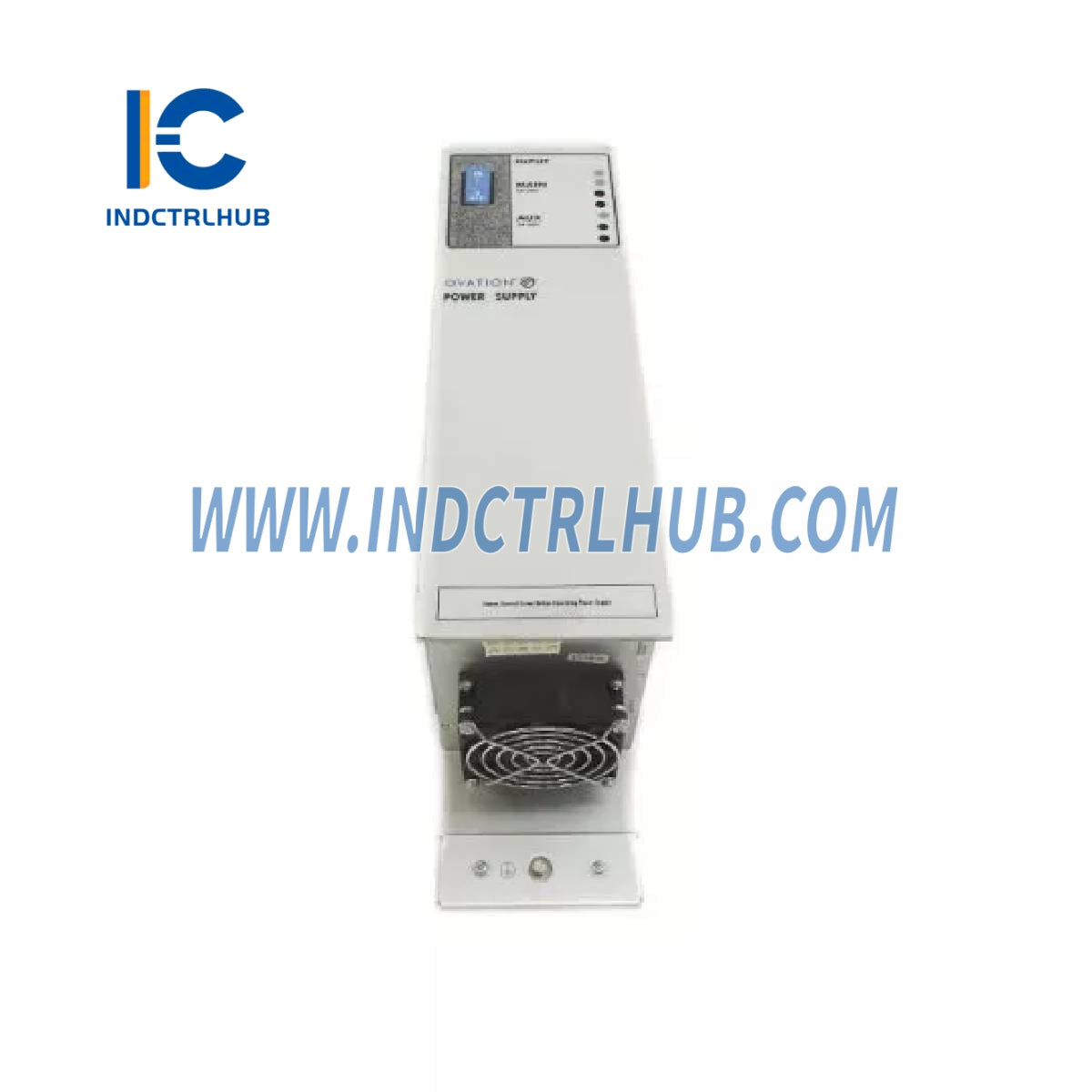

The Emerson 1X00024H01 WH1-2FF is a Power Supply Module designed for the Ovation Distributed Control System (DCS). Manufactured by Emerson, this module, branded under the WH1-2FF model by Magnetek (a supplier for Emerson), converts AC input voltage into stable DC outputs to power Ovation system components. It is widely used in industrial applications such as power generation, water treatment, and process automation, ensuring reliable and efficient energy delivery in demanding environments. The 1X00024H01 part number identifies this specific unit within the Ovation family.
Technical Specifications
The 1X00024H01 WH1-2FF has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|

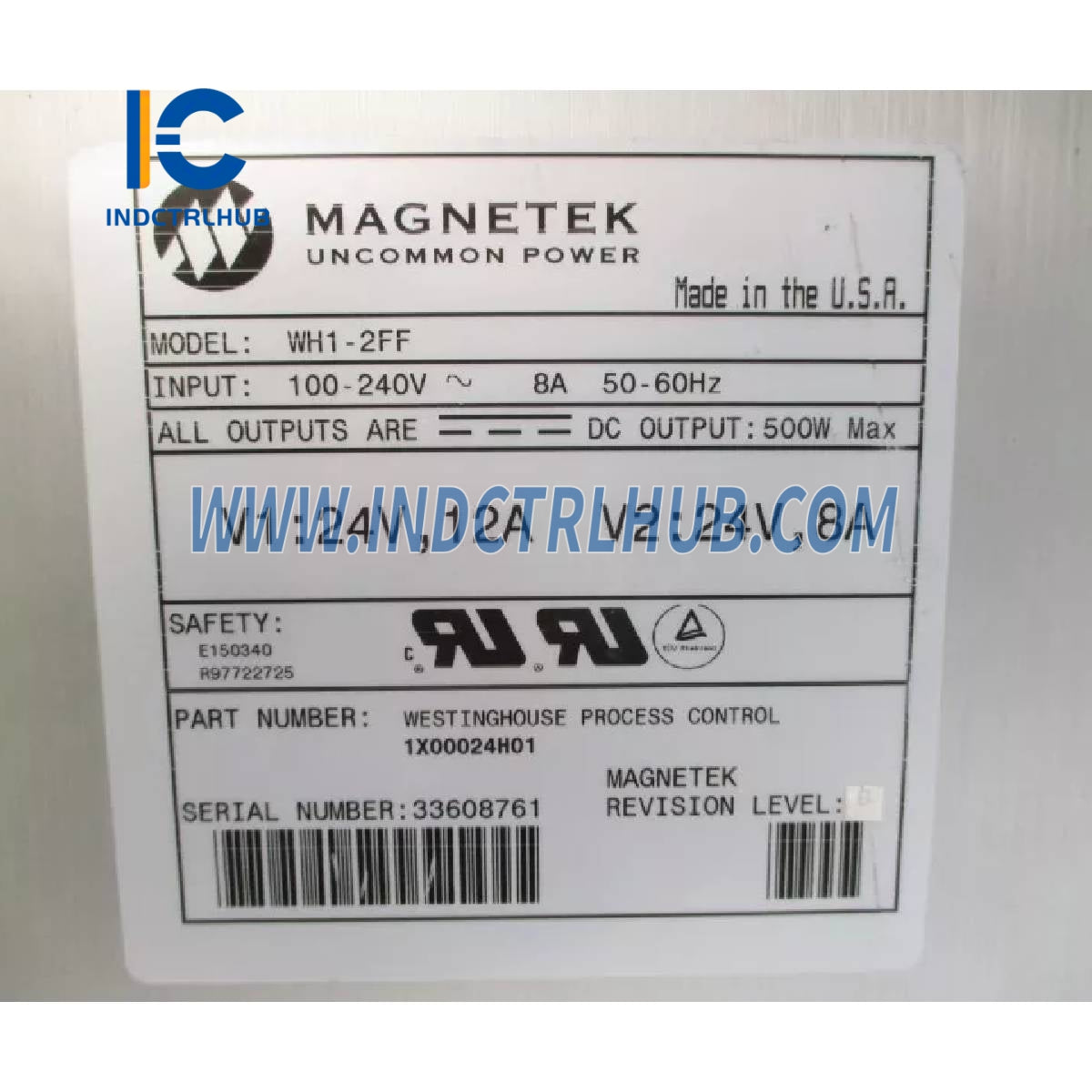

| Model/Part Number | 1X00024H01 WH1-2FF |
| Manufacturer | Emerson |
| Description | Power Supply Module |
| Series | Ovation DCS |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| Input Current | 8 A |
| Output Voltage | 24 V DC (dual channel) |
| Output Current | 12 A per channel |
| Output Power | 500 W maximum |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 2.5 kg (5.5 lbs) |
Additional Details
The 1X00024H01 WH1-2FF includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Converts AC input to dual 24 V DC outputs for Ovation system power |
| Mounting | DIN-rail or panel mountable |
| Connectivity | Terminal blocks for input/output wiring |
| Features | Overload protection, high efficiency (>90%), status indicators |
| Certifications | Designed for industrial safety standards (e.g., CE, UL, RoHS compliant) |
