Product Description
Product Overview

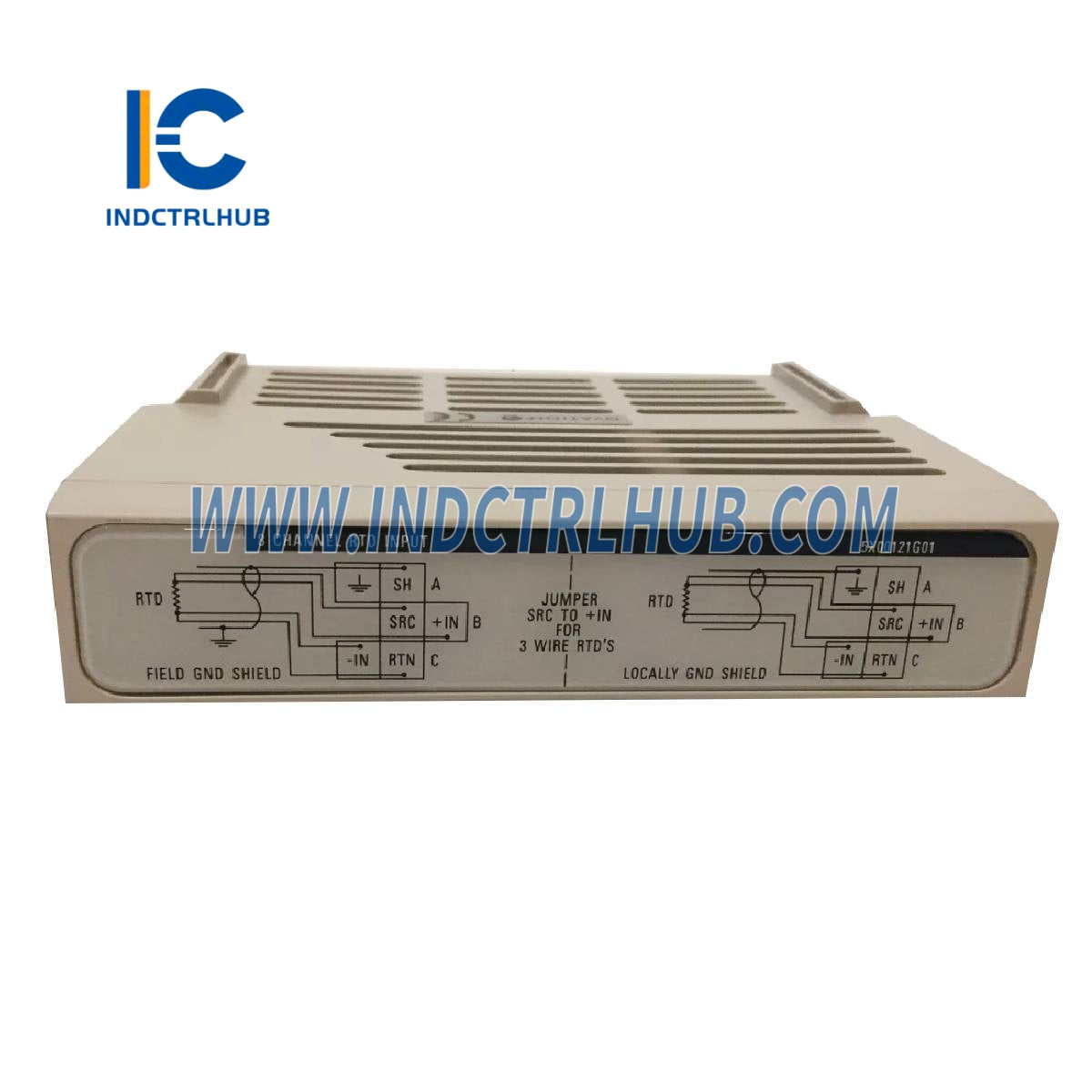

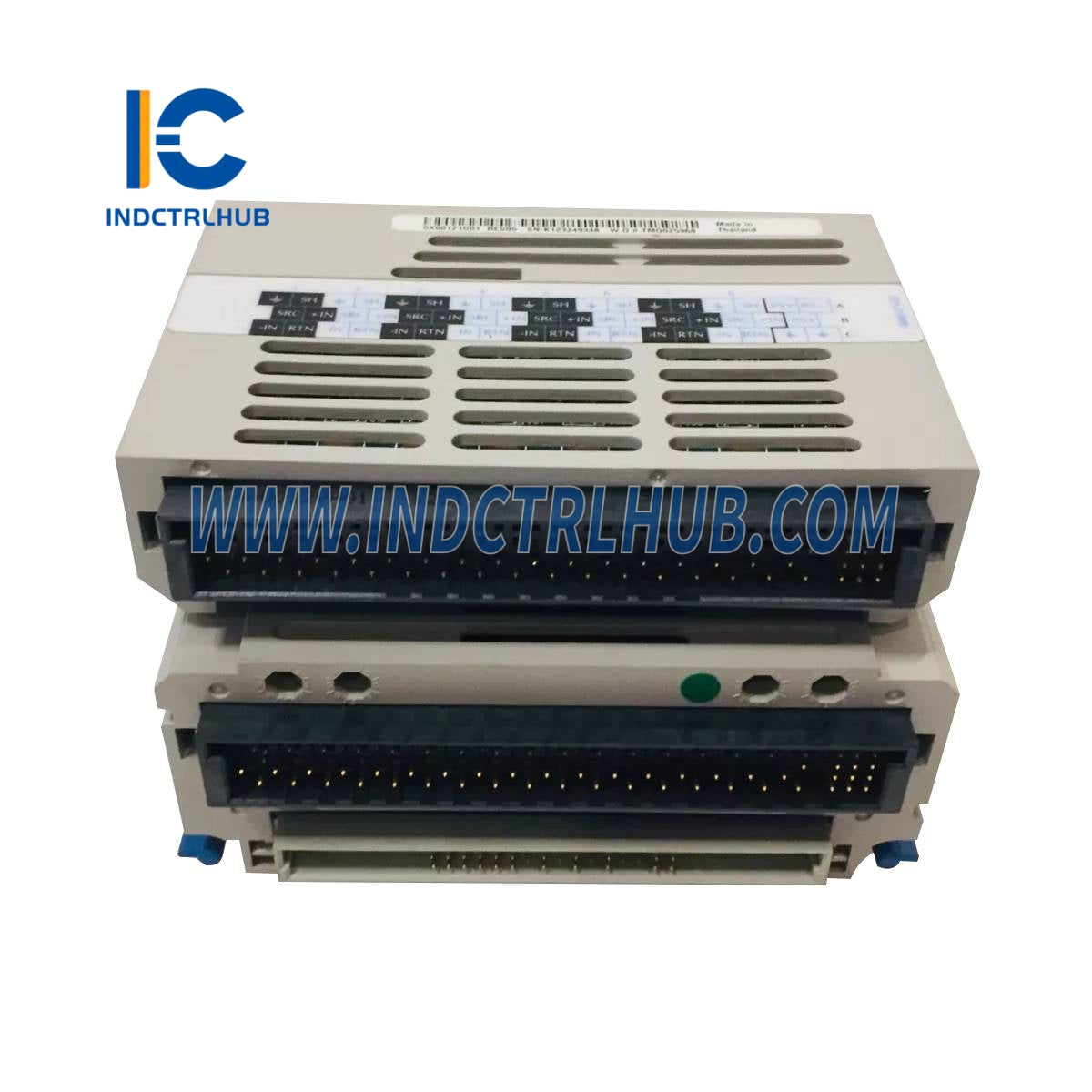

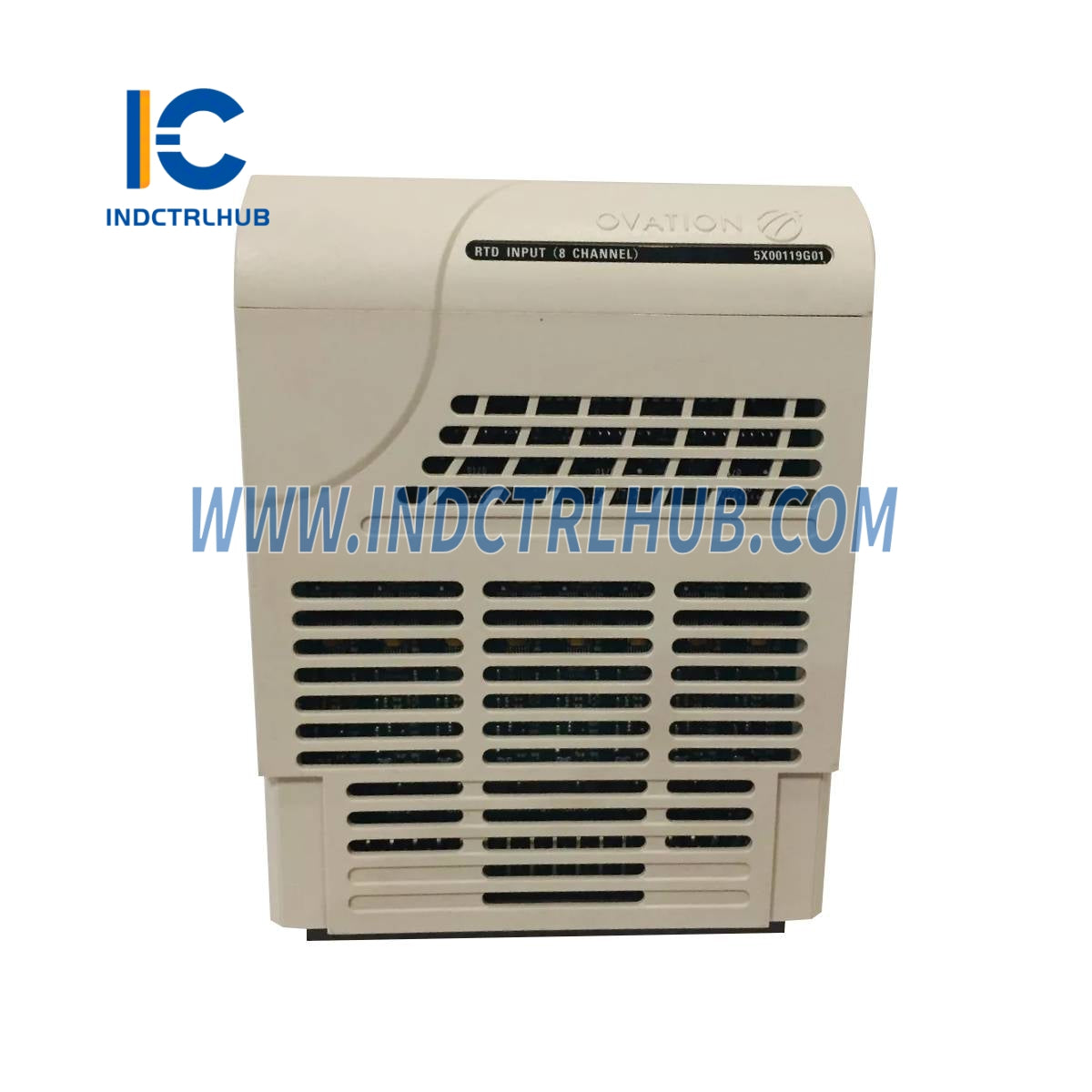

The Emerson 5X00119G01+5X00121G01 is an Ovation 8-Channel RTD Input Module assembly designed for use within Emerson’s Ovation Distributed Control System (DCS). This assembly combines the 5X00119G01 (RTD Input Electronic Module, EMOD) with the 5X00121G01 (RTD Input Personality Module, PMOD) to provide precise measurement and conversion of Resistance Temperature Detector (RTD) signals into digital data. Manufactured by Emerson, a leader in automation technologies, this module interfaces with RTD sensors to monitor temperature in industrial applications such as power generation, oil and gas, and process control. It transmits digitized data to Ovation controllers, supporting high-accuracy temperature monitoring with robust integration into the DCS ecosystem.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Emerson |
| Series | Ovation DCS |
| Model/Part Number | 5X00119G01 (EMOD) + 5X00121G01 (PMOD) |
| Description | Ovation 8-Channel RTD Input Module |
| Input Type | RTD (Resistance Temperature Detector, e.g., Pt100, Pt1000) |
| Number of Channels | 8 |
| Power Supply | 24 VDC (via Ovation backplane) |
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Mounting Type | Rack-mounted (Ovation I/O rack) |
| Dimensions | 130 mm H x 35 mm W x 105 mm D (5.12 in x 1.38 in x 4.13 in) |
| Weight | 0.3 kg (0.66 lb) |
