Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |

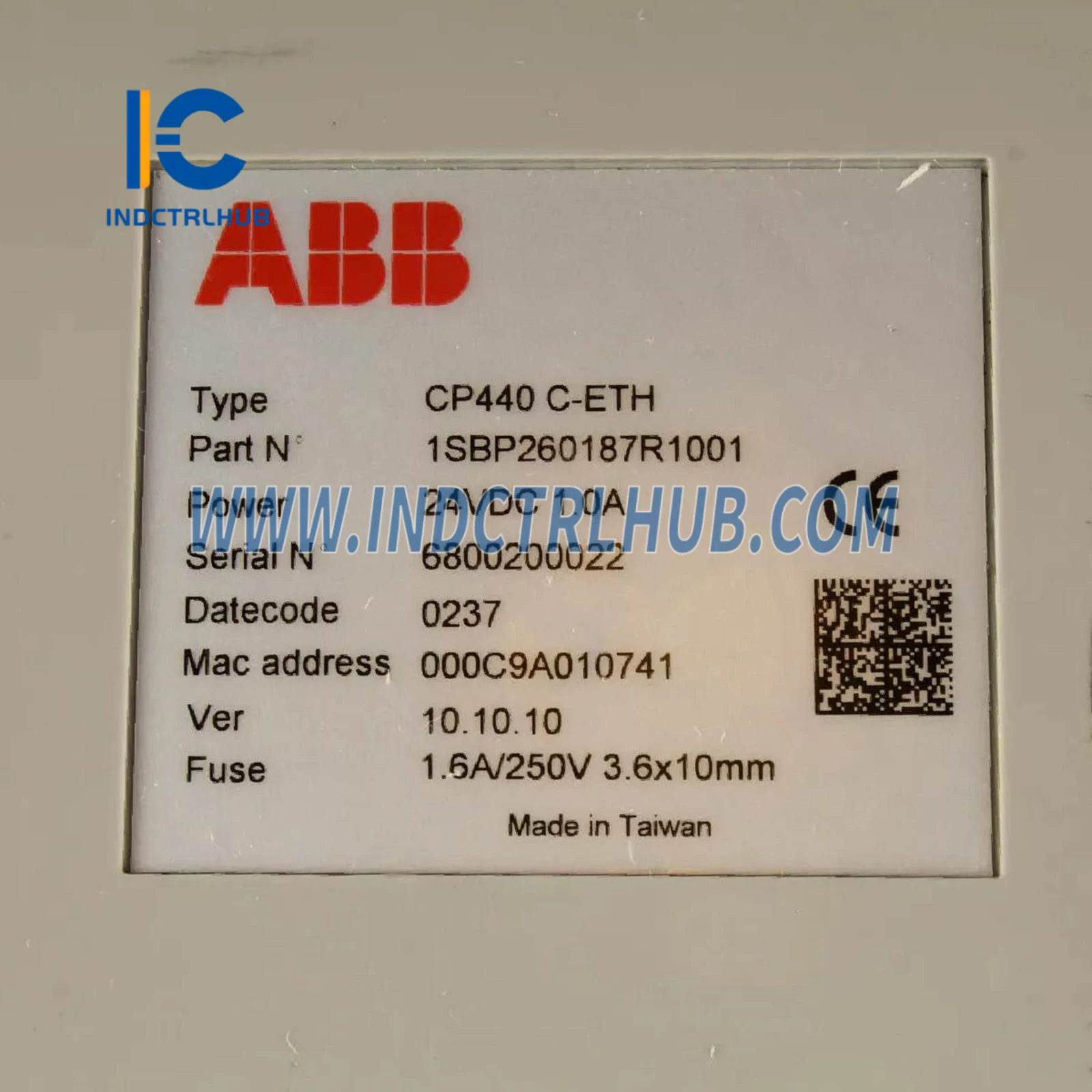

CP440C-ETH (1SBP260187R1001) |
|
Extended Product Type |
CP440C-ETH |
|
ABB Type Designation |
CP440C-ETH |
|
Catalog Description |

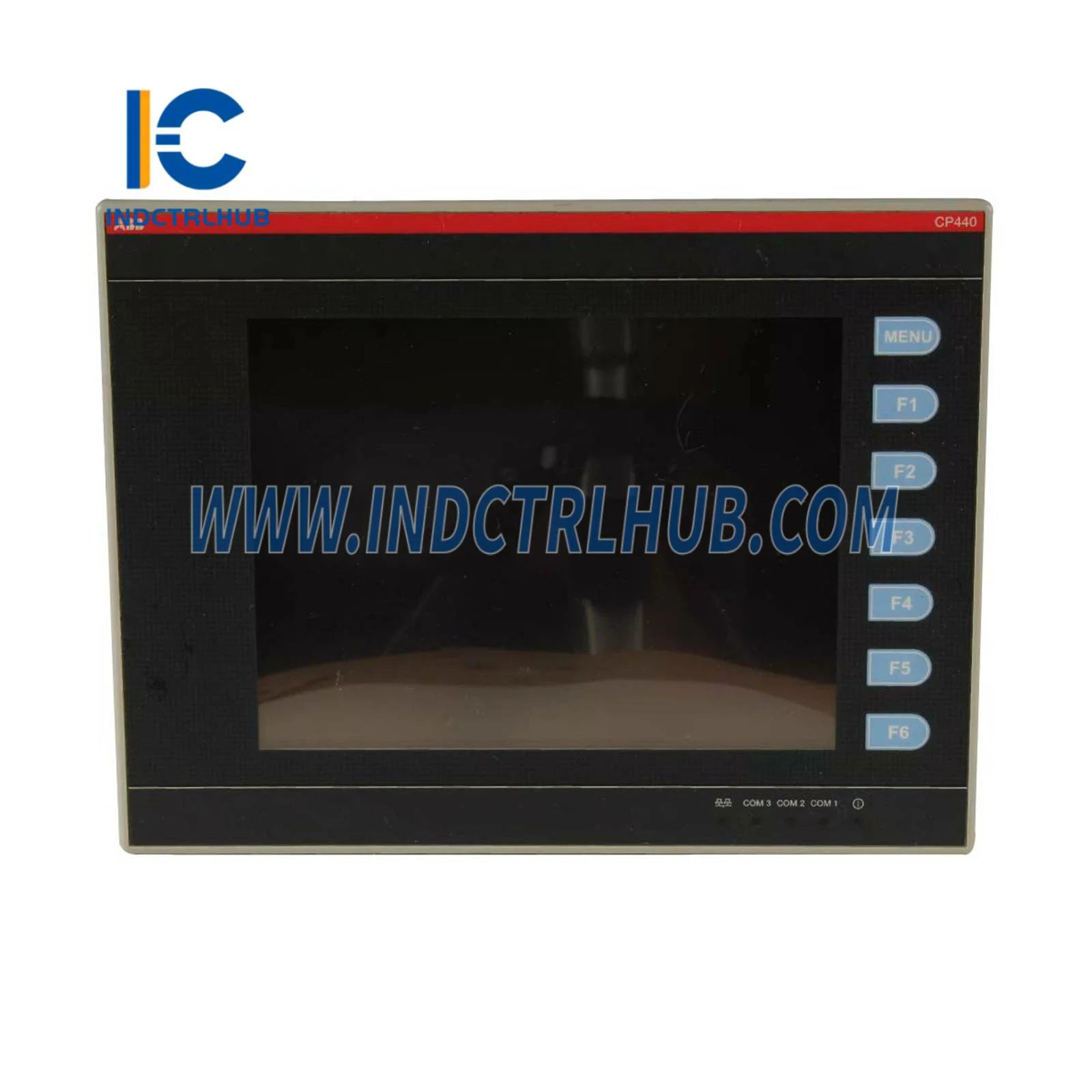

CP440C-ETH: CP400, control panel 1 menu + 6 definable keys, 7.5” STN touchscreen, 64K colors |
|
Long Description |
CP440C-ETH Control Panel, 1 menu, 6 defined keys, 7.5” STN touchscreen, 64K colors |
|
Product Main Type |
CP440 |
|
Product Name |
Control Panel |
Ordering Information
|
Parameter |
Value |
|---|---|
|
EAN |
3471522601872 |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Customs Tariff Number |
85381000 |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Weight |
1.2 kg |
|
Viewing Area Height |
115.8 mm |
|
Viewing Area Length |
153.7 mm |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Air Temperature (Operation) |
0 to +50°C |
|
Ambient Air Temperature (Storage) |
-10 to +60°C |
Battery Information
|
Parameter |
Value |
|---|---|
|
Type |
Portable |
|
Button Cell |
Yes |
|
Weight |
0.0037 kg |
|
Contains Hg |
<0.001% |
|
Contains Cd |
<0.002% |
Display & Interface
|
Parameter |
Value |
|---|---|
|
Display Type |
STN Touch + Keys |
|
Screen Color |
64K colors |
|
Screen Resolution |
640 x 480 px |
|
Screen Size |
7.5” (4:3 aspect ratio) |
|
Screen Type |
TFT color, CCFL backlight, touch screen |
|
Number of Characters Per Line |
80 |
|
Number of Display Lines |
60 |
|
Number of Function Keys |
6 |
|
Number of LEDs |
0 |
Communication & Interfaces
|
Parameter |
Value |
|---|---|
|
Communication Interface |
Ethernet |
|
Communication Speed |
4.8 – 187.5 kBd |
|
Fieldbus Interface Type |
Modbus RTU, AC500, Modbus ASCII (others on request) |
|

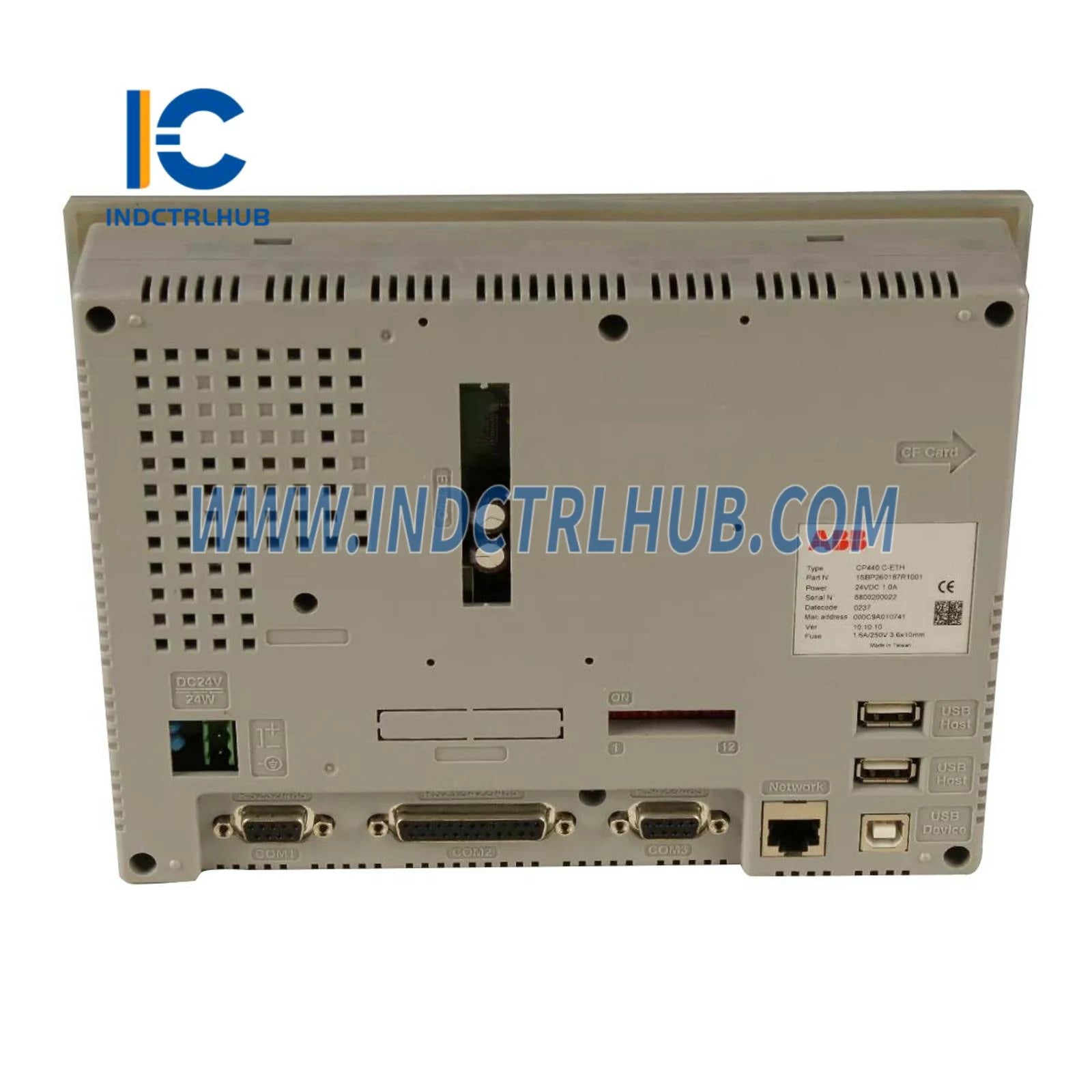

Serial Port 1 Type |
RS232/RS485 |
|
Serial Port 2 Type |
RS232/RS422/RS485 |
|
Serial Port 3 Type |
RS232/RS485 |
|
Profibus |
No |
|
USB Port 1 Type |
2 Host (Ver. 2.0) |
|
USB Port 2 Type |
1 Device (Ver. 2.0) |
Power & Electrical
|
Parameter |
Value |
|---|---|
|
Power Supply |
24 V DC |
|
Power Consumption |
24 VA |
|
Supply Voltage |
20.4 – 27.6 V DC |
|
Fuse Size |
3.6 x 10 mm |
|
Fuse Type |
SLEEK.36ESr |
Memory & Software
|
Parameter |
Value |
|---|---|
|
Memory Size (User Data) |
512 kB |
|
Memory Size (User Program) |
8000 kB |
|
Memory Type (User Data) |
512 kB RAM |
|
Memory Type (User Program) |
8 MB ROM |
|
Programming Software |
CP400 Soft |
|
Operating Mode |
Offline, Online |
|
Software Functions |
Alarm management, Recipe management, Trends, Macro & Ladder, Sub-screen |
Mounting & Security
|
Parameter |
Value |
|---|---|
|
Mounting on DIN Rail |
No |
|
Mounting Position |
0 to 135° |
|
Mounting Type |
Front face |
|
Security |
Password protection with 9 user levels |
Service Life & Certifications
|
Parameter |
Value |
|---|---|
|
Service Life |
45,000 hours |
|
Real-time Clock |
Yes |
|
Release Type |
V10.10.10 |
|
RoHS Compliance |
1SBD340002R0202 |
|
CE Declaration of Conformity |
1SBD240578C1000 |
|
UL Certificate |
NRAQ.E240320 |
|
cUL Certificate |
1SAA960000-1709 |
|
Data Sheet (Technical Information) |
1SBC159107L0202 |
Classifications
|
Parameter |
Value |
|---|---|
|
E-nummer |
4517244 |
