Product Description
Product Overview

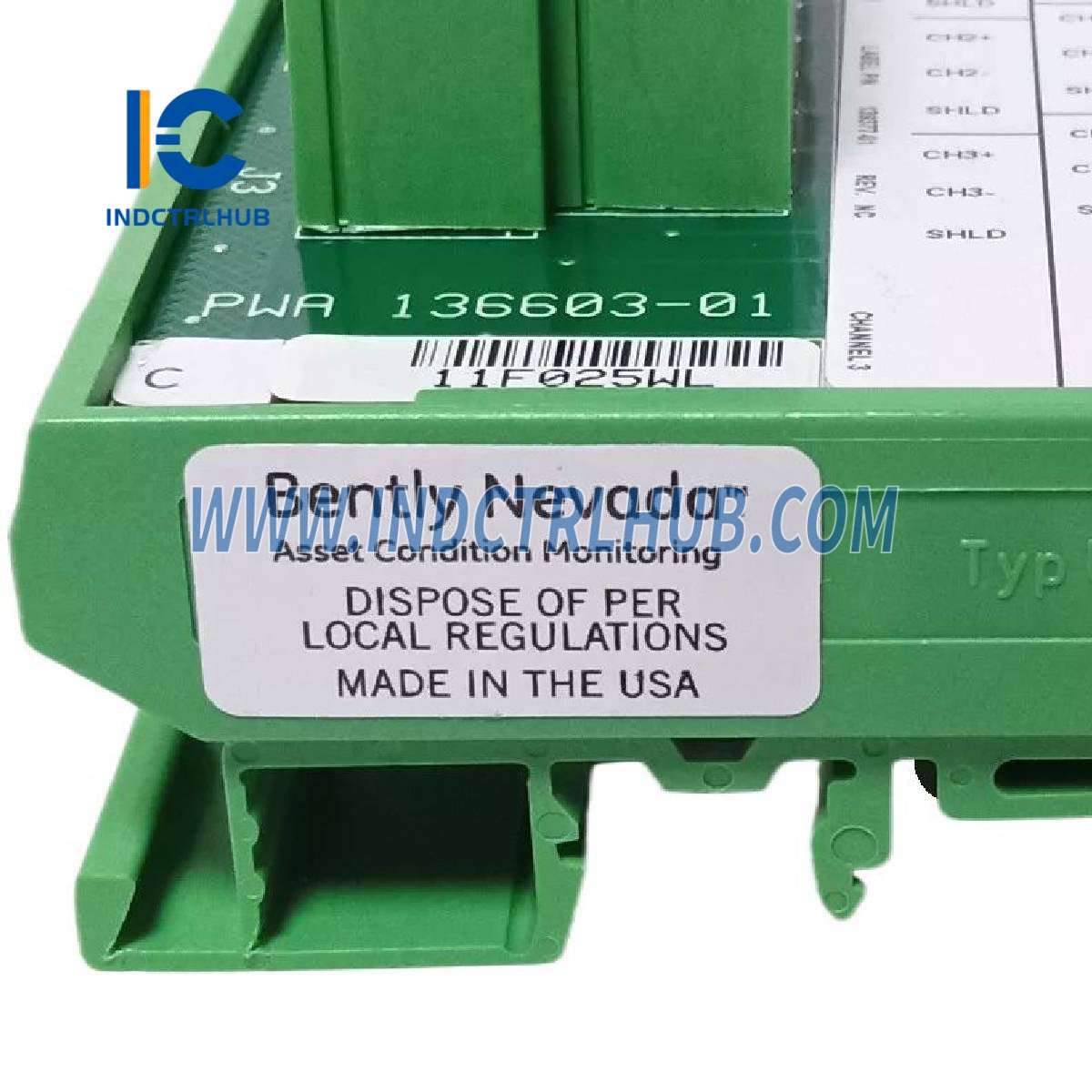

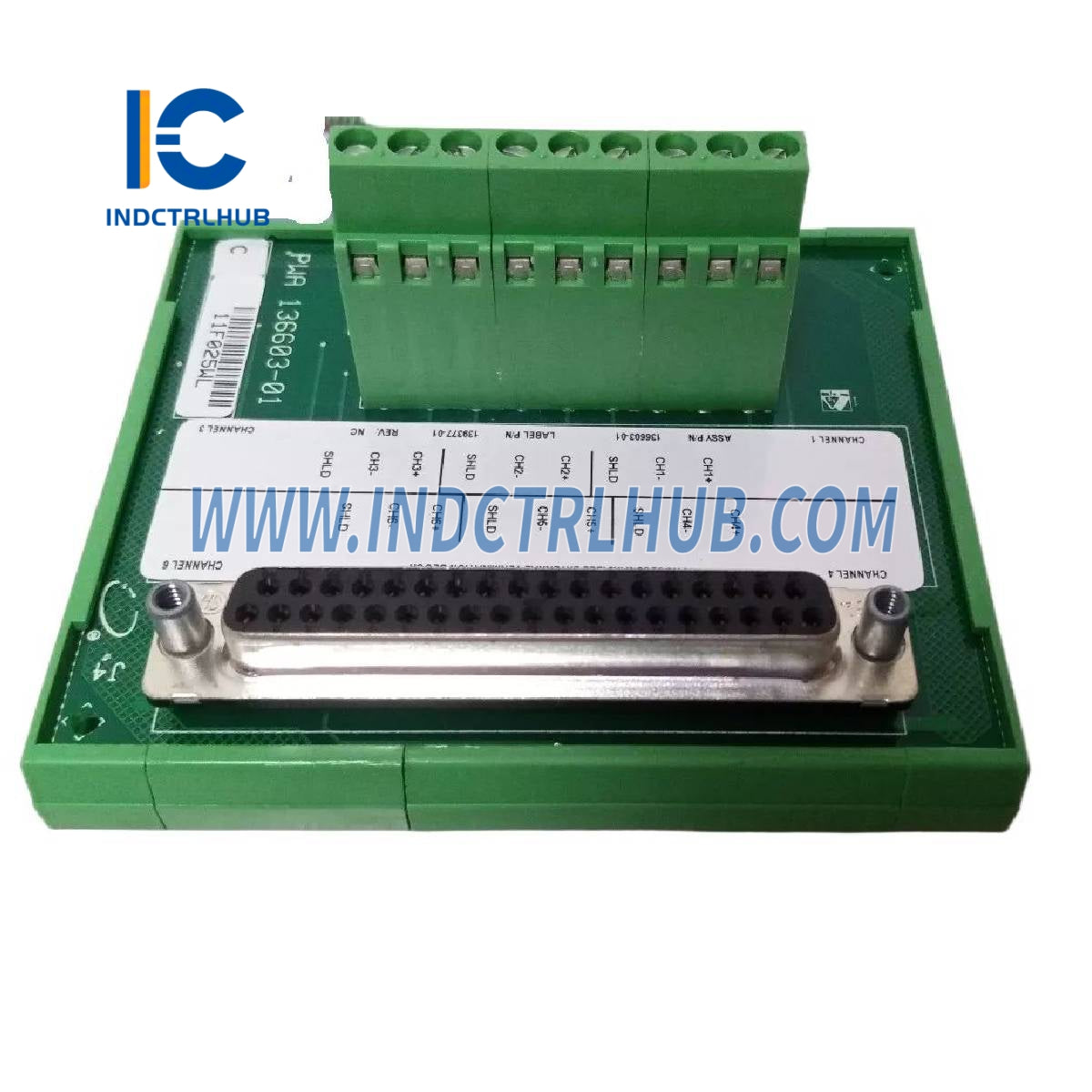

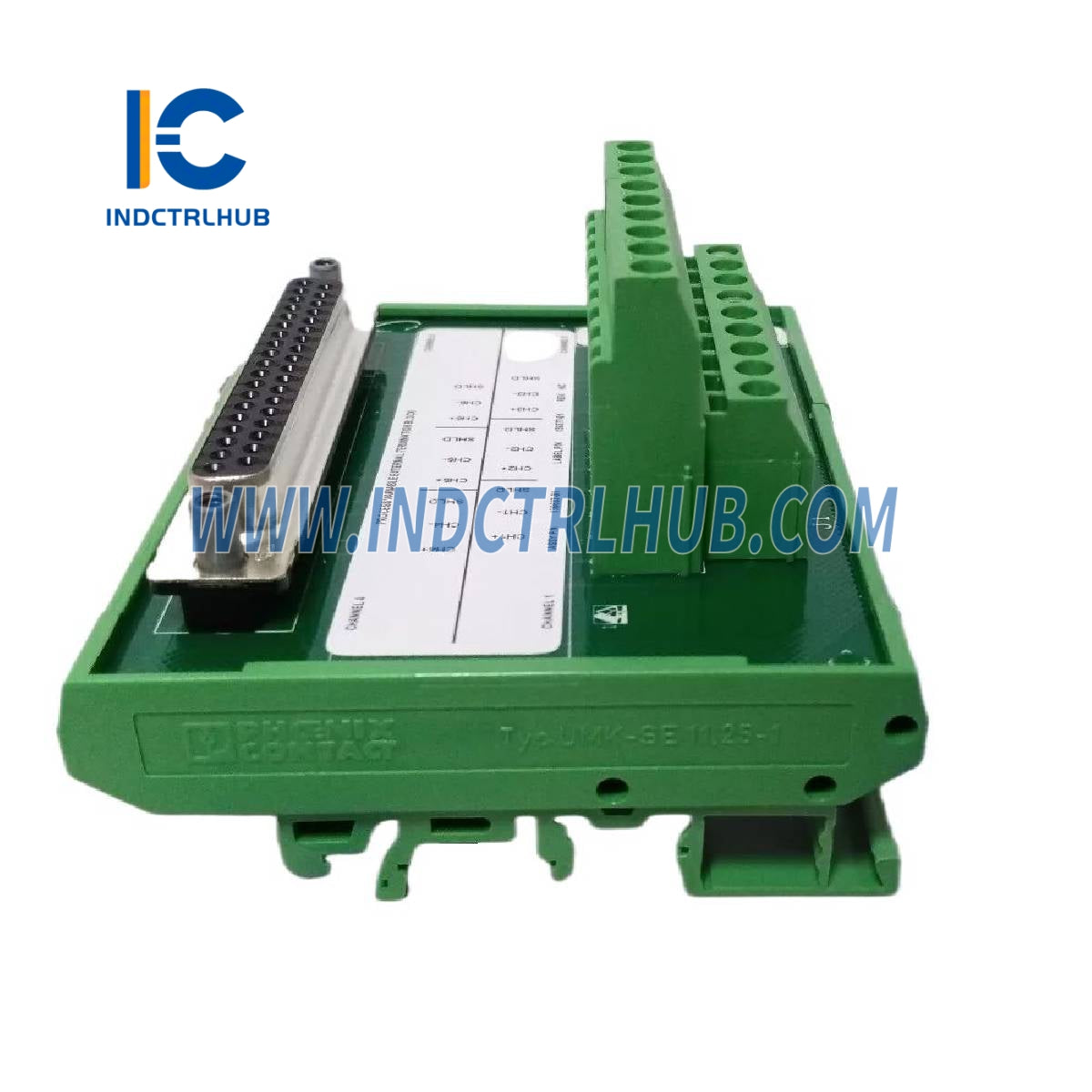

The Bently Nevada 136603-01 is a Process Variable I/O Module with External Terminations, part of the 3500/62 series within the 3500 Machinery Protection System. Manufactured by Bently Nevada, a Baker Hughes company renowned for condition monitoring solutions, this six-channel module is designed to process critical machine parameters such as pressures, flows, temperatures, and levels. It accepts +4 to +20 mA current inputs or proportional voltage inputs between -10 Vdc and +10 Vdc, conditioning these signals and comparing them to user-programmable alarm setpoints to drive machinery protection alarms. Ideal for industrial applications in oil and gas, power generation, and manufacturing, the external termination design simplifies field wiring and enhances flexibility when integrated with the 3500 rack system.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500/62 |
| Model/Part Number | 136603-01 |
| Model Type | Process Variable I/O Module with External Terminations |
| Channels | 6 |
| Input Signals | +4 to +20 mA current or -10 Vdc to +10 Vdc voltage |
| Configuration | 3500 Rack Configuration Software |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | 241 mm H x 24.4 mm W x 99.1 mm D (9.5 in x 0.96 in x 3.9 in) |
| Weight | 0.45 kg (1 lb) |
