Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/40-01-00 |
|
Spare Part Numbers |
176449-01 (Monitor), 125680-01 (I/O Module) |
|
Description |
3500/40M Proximitor Monitor |
|
Series |
3500 |
🔹 Description

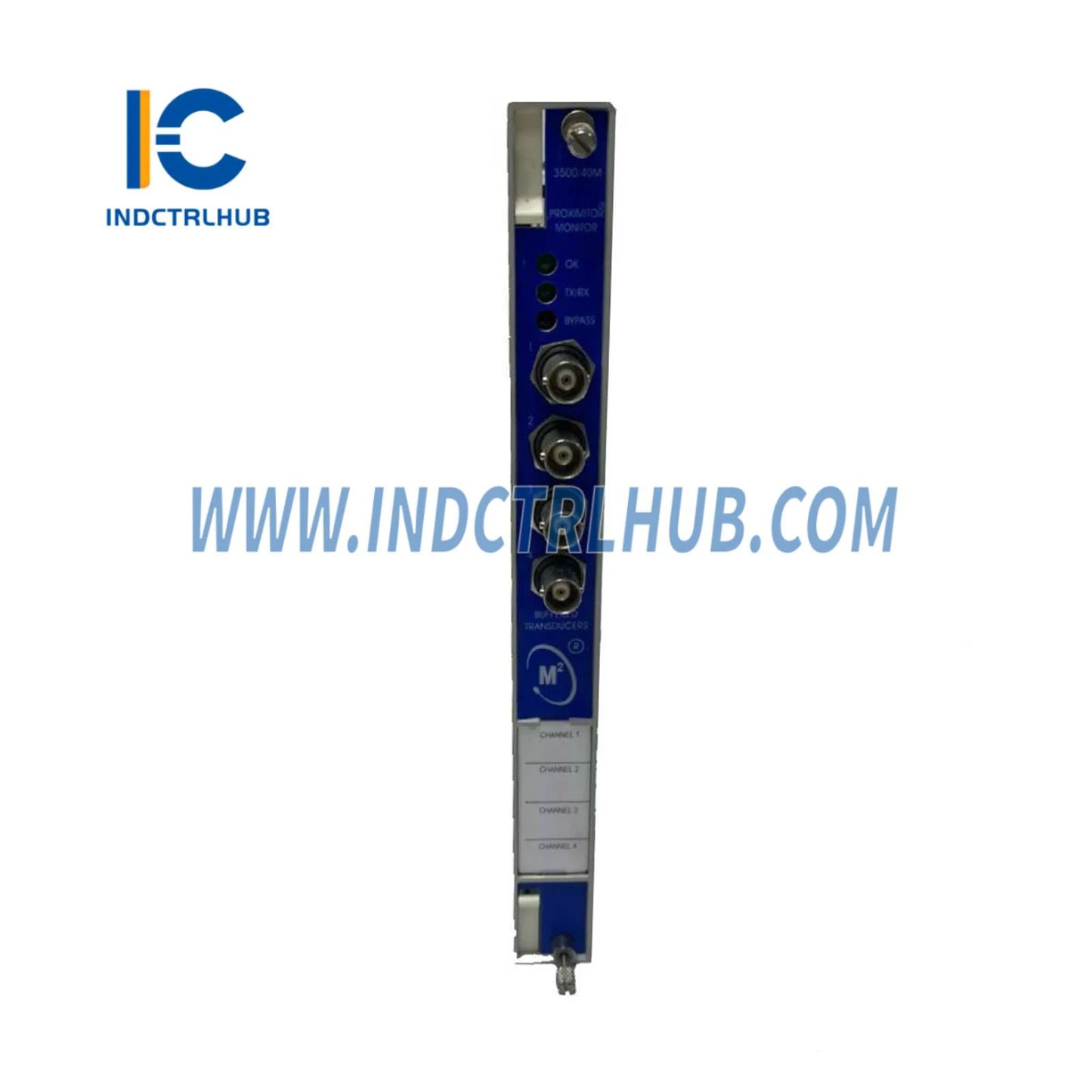

The 3500/40M Proximitor Monitor is a four-channel monitor used to process signals from Bently Nevada proximity transducers. It conditions the input to provide various measurements and compares them against programmable alarms.
Each channel can be independently configured (via the 3500 Rack Configuration Software) to perform:
-
Radial vibration
-
Thrust position
-
Differential expansion
-
Eccentricity
-
REBAM (Rolling Element Bearing Analysis)
🔹 Specifications
Inputs
|
Parameter |
Value |
|---|---|
|
Signal Type |
1 to 4 proximity transducer signals |
|
Input Impedance |
10 kΩ (Standard I/O, Proximitor & accel. input) |
|
Power Consumption |
7.7 Watts typical |
🔹 Environmental Limits
|
Condition |
Range |
|---|---|
|
Operating Temp (Non-barrier I/O) |
-30°C to +65°C (-22°F to +150°F) |
|
Operating Temp (Barrier I/O) |
0°C to +65°C (32°F to +150°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
🔹 Physical Specifications
|
Component |
Dimensions (H x W x D) |
Weight |
|---|---|---|
|
Monitor Module |
241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
0.91 kg (2.0 lb) |
|
I/O Module (non-barrier) |
241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
0.20 kg (0.44 lb) |
|
I/O Module (barrier) |
241.3 x 24.4 x 163.1 mm (9.50 x 0.96 x 6.42 in) |
0.46 kg (1.01 lb) |
🔹 Ordering Information
3500/40M-AA-BB
|
Field |
Option |
Description |
|---|---|---|
|
A |
01 |
I/O Module with Internal Termination |
|
02 |
I/O Module with External Terminations |
|
|
03 |
I/O Module with Internal Barriers and Internal Terminations |
|
|
B |
00 |
No approvals |
|
01 |
cNRTLus (Class 1, Division 2) |
|
|
02 |
ATEX / IECEx / CSA (Class 1, Zone 2) |
🔹 Spares
|
Part Number |
Description |
|---|---|
|
176449-01 |
3500/40M Proximitor Monitor |
|
125680-01 |
Proximitor I/O Module with Internal Terminations |
