Product Description
Product Details
- Manufacturer: Bently Nevada
- Series: 3500/22M

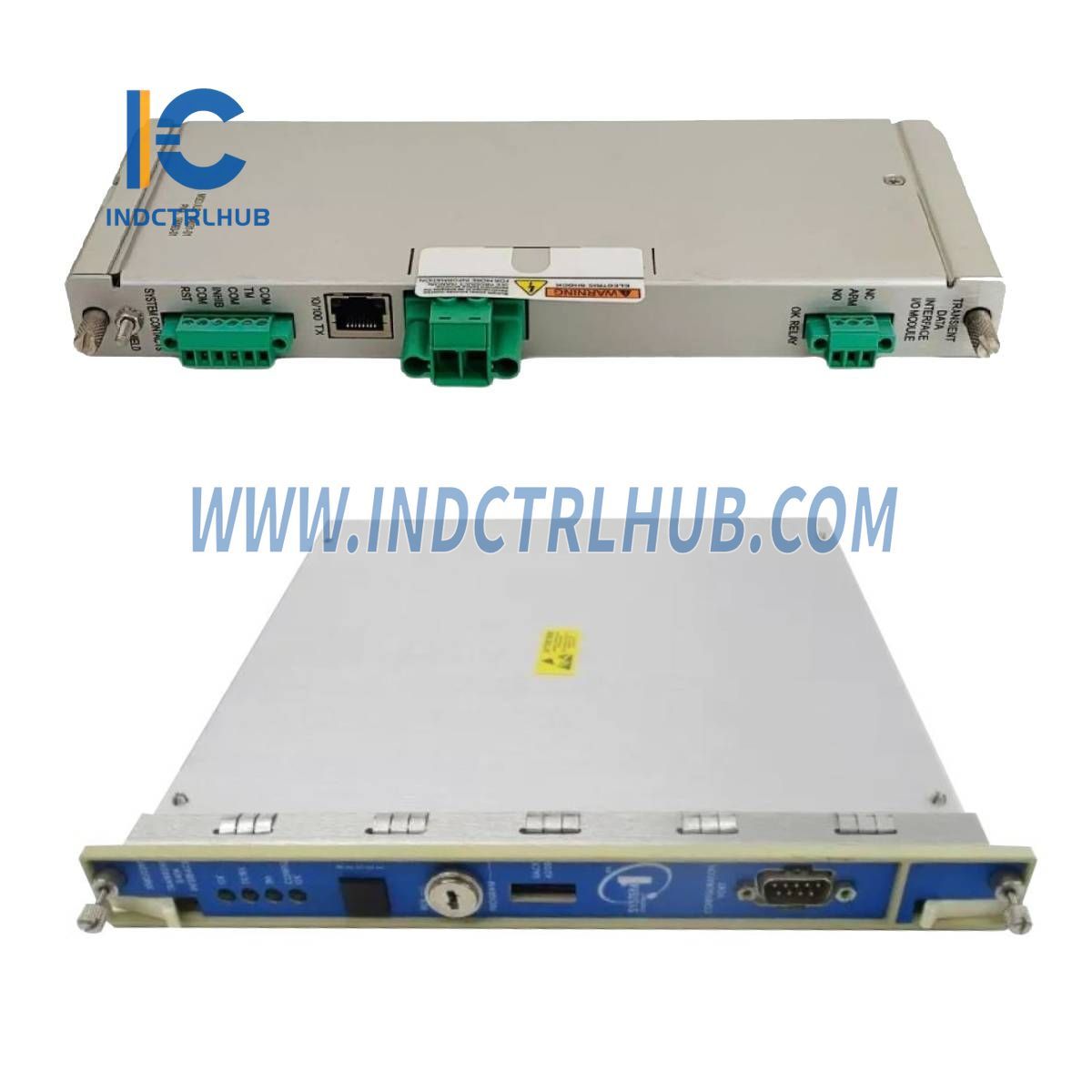

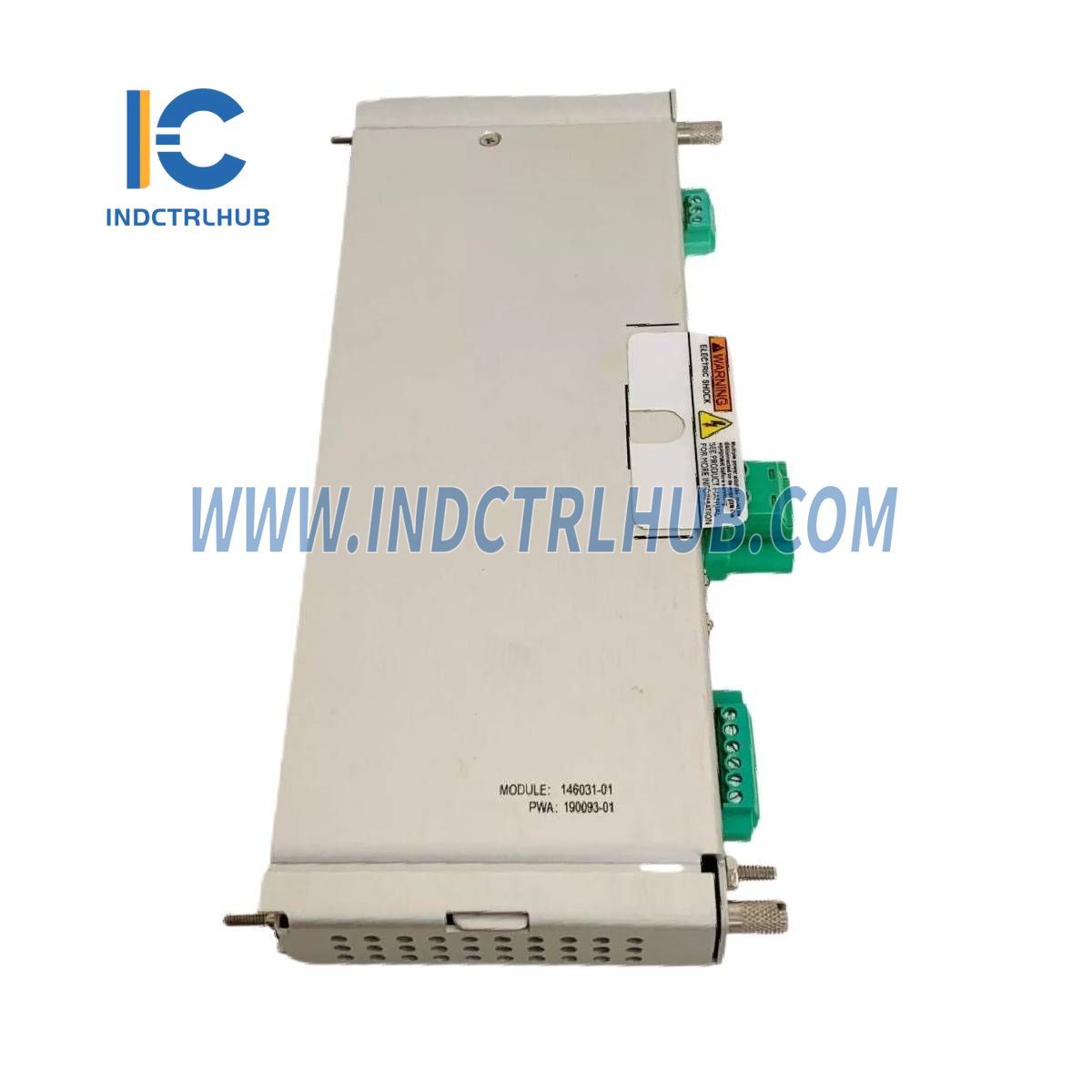

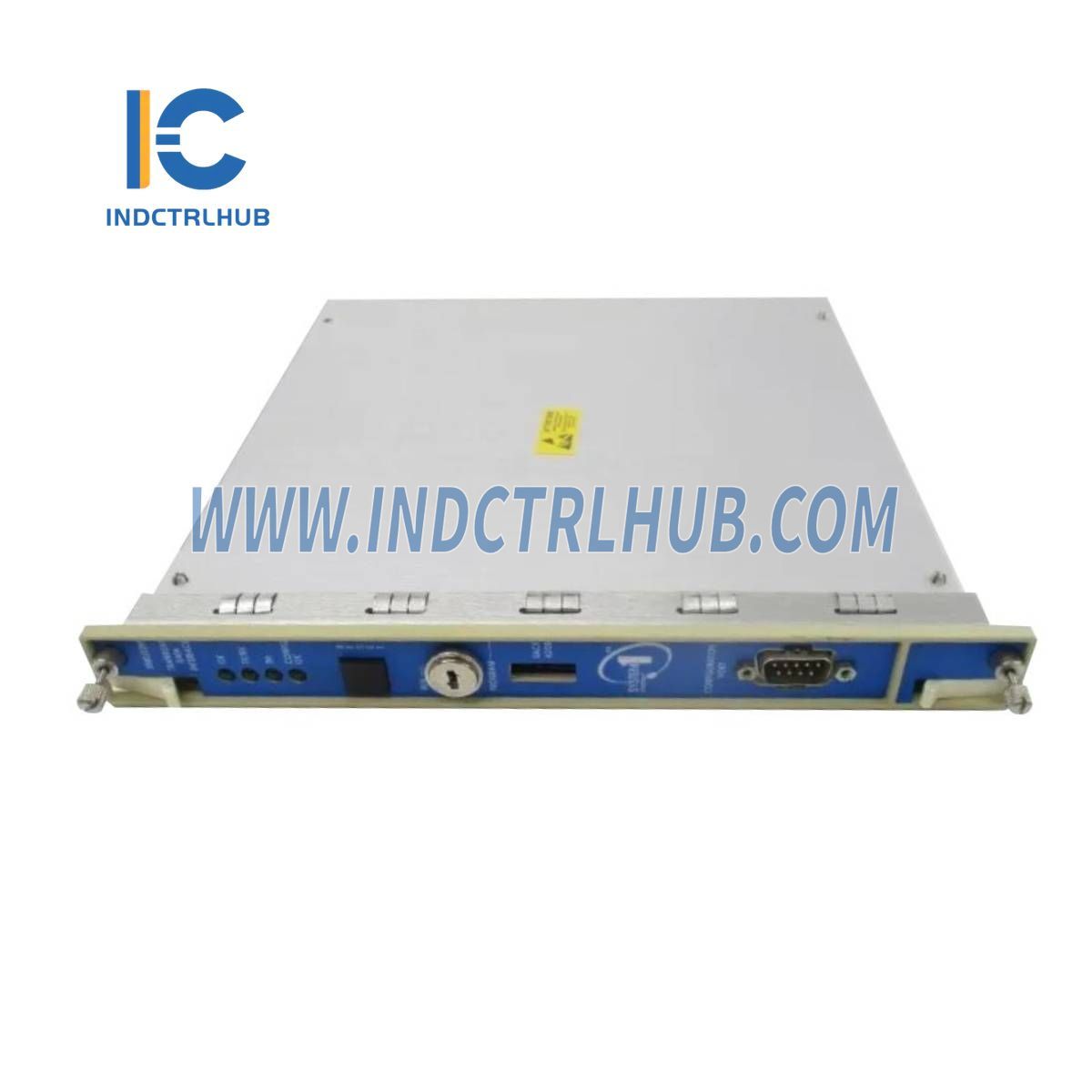

- Model/Part Number: 3500/22M 138607-01 + 146031-01
- Model Type: Transient Data Interface Module
Spares
- 146031-02: 100Base-FX (Fiber Optic) I/O Module
Description
The 3500/22M Transient Data Interface (TDI) serves as the interface between the 3500 monitoring system and compatible software, such as System 1 Condition Monitoring and Diagnostic Software and 3500 System Configuration Software. It combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor like TDXnet.
Specifications
Inputs
- Power Consumption: 10.5 Watts
-
Data:
- Front Panel USB-B
- 10Base-T/100Base-TX I/O: 10Base-T or 100Base-TX Ethernet, autosensing
- 100Base-FX I/O: 100Base-FX Fiber-Optic Ethernet
Startup/Coastdown Data
- Data collected at selected increments of speed and time.
- Increasing and decreasing speed intervals are independently programmable.
- Transient data collection is initiated based on detecting machine speed within one of two programmable windows.
- The number of transient events that can be collected is only limited by available memory in the module.
Environmental Limits
| Feature | Specification |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
Physical Specifications
TDI Module
| Feature | Specification |
|---|---|
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight | 0.91 kg (2.0 lbs) |
I/O Modules
| Feature | Specification |
|---|---|
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| Weight | 0.20 kg (0.44 lbs) |
Ordering Information
- Model: 3500/22M TDI Module and I/O
- Part Number Format: 3500/22-AA-BB-CC
A: Transient Data Interface Type
| Option | Description |
|---|---|
| 01 | Standard (use for standard monitoring applications) |
B: I/O Module Type
| Option | Description |
|---|---|
| 01 | 10Base-T/100Base-TX Ethernet |
| 02 | 100Base-FX (Fiber Optic) Ethernet |
| 03 | 10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts |
| 04 | 100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts |
C: Agency Approval
| Option | Description |
|---|---|
| 00 | None |
| 01 | CSA/NRTL/C (Class 1, Division 2) |
| 02 | Multi (CSA, ATEX, IECEx) |
