Product Description

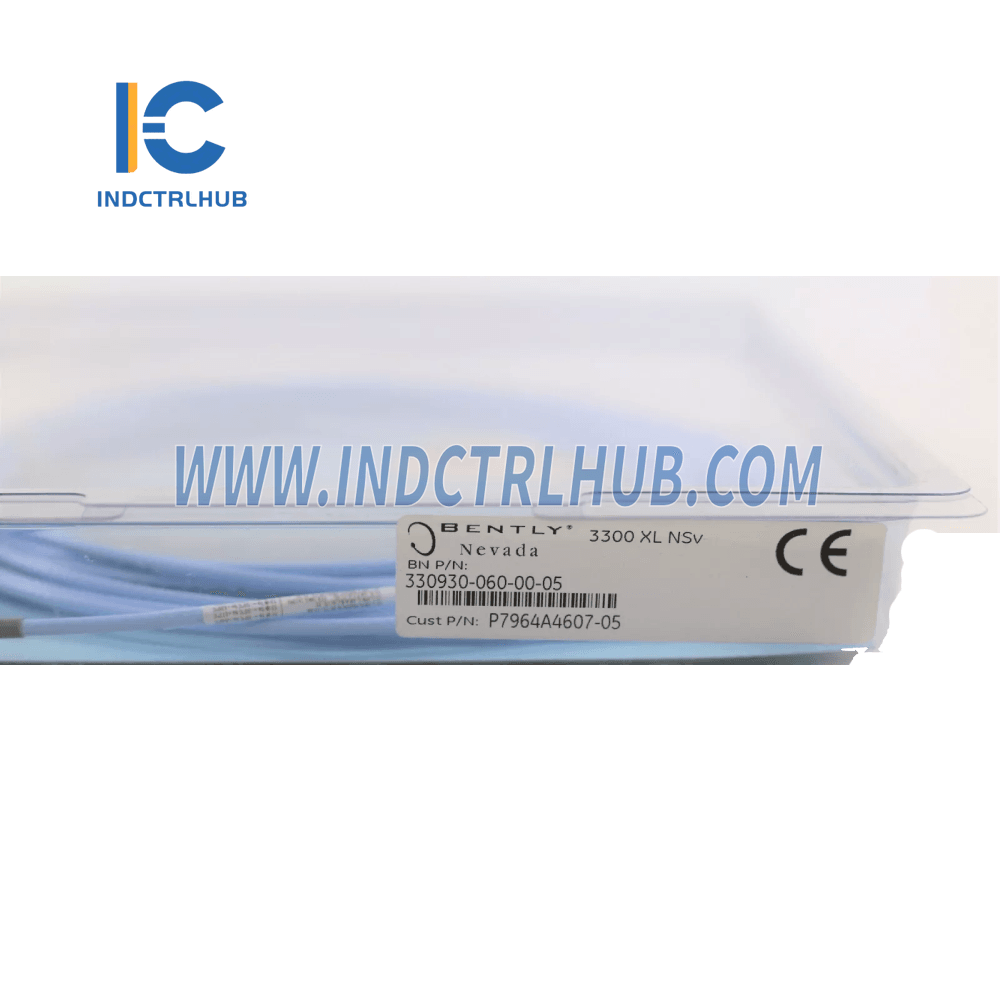

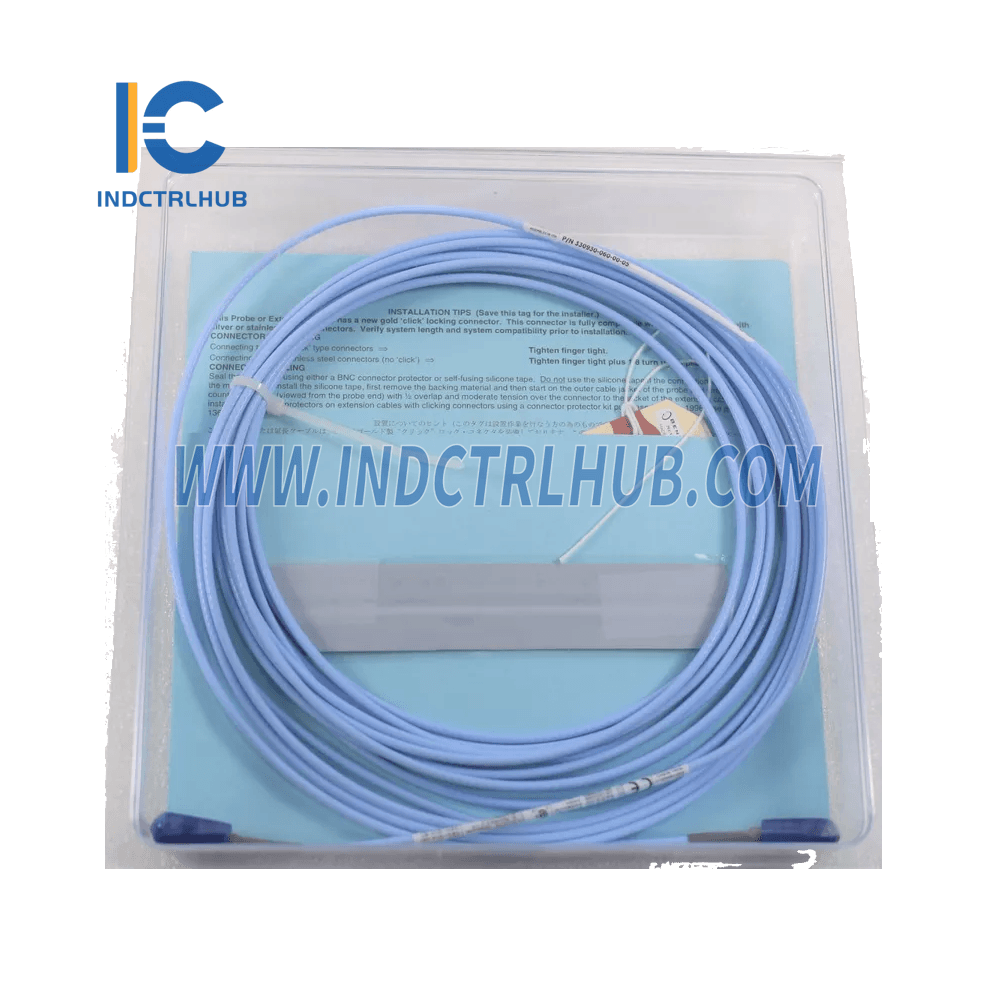

Product Details: Bently Nevada 330930-060-00-05 3300 NSv Extension Cable
General Information
- Manufacturer: Bently Nevada
- Model/Part Number: 330930-060-00-05
- Description: 3300 NSv Extension Cable
Specifications
| Option | Description |
|---|---|
| Cable Length (AAA) | 040: 4.0 meters (13.1 feet) 045: 4.5 meters (14.8 feet) 060: 6.0 meters (19.7 feet) 065: 6.5 meters (21.3 feet) |
| Connector and Cable (BB) | 00: Without stainless steel armor 01: With stainless steel armor, with FEP jacket 02: With stainless steel armor, without FEP jacket 03: Without stainless steel armor, with connector protector 04: With stainless steel armor, with FEP jacket, with connector protector 05: With stainless steel armor, without FEP jacket, with connector protector 06: FluidLoc cable without stainless steel armor 07: FluidLoc cable with stainless steel armor, with FEP jacket 08: FluidLoc cable with stainless steel armor, without FEP jacket 09: FluidLoc cable without stainless steel armor, with connector protector 10: FluidLoc cable with stainless steel armor, with FEP jacket, with connector protector 11: FluidLoc cable with stainless steel armor, without FEP jacket, with connector protector |
| Agency Approval (CC) | 00: Not Required 05: Multiple Approvals |
- Ensure that the extension cable length and probe length together equal the Proximitor Sensor total length.
System Weight (Typical)
| Component | Weight |
|---|---|
| Probe | 14 to 150 g (0.5 to 5.3 oz) |
| Extension Cable | 45 g/m (0.5 oz/ft) |
| Armored Extension Cable | 64 g/m (0.7 oz/ft) |
| Proximitor Sensor | 255 g (9 oz) |
Environmental Limits
| Component | Operating Temperature | Storage Temperature |
|---|---|---|
| Probe Temperature Range | -52°C to +177°C (-62°F to +351°F) | -52°C to +177°C (-62°F to +351°F) |
| Extension Cable Temperature Range | -52°C to +177°C (-62°F to +351°F) | -52°C to +177°C (-62°F to +351°F) |
| Proximitor Sensor Temperature Range | -52°C to +100°C (-62°F to +212°F) | -52°C to +105°C (-62°F to +221°F) |
- Exposing the probe to temperatures below -34°C (-30°F) for a sustained period of time may cause premature failure of the pressure seal.
- Relative Humidity: 100% condensing, non-submersible when connectors are protected. Tested to IEC 68-2-3 damp heat.
Thread Engagement Limits
| Thread Size | Maximum Length of Thread Engagement |
|---|---|
| 1/4-28 | 0.375 in (9.53 mm) |
| 3/8-24 | 0.563 in (14.3 mm) |
| M8x1 | 12 mm |
| M10x1 | 15 mm |
