Product Description
Product Details:
Manufacturer: Bently Nevada
Model/Part Number: 330850-50-05

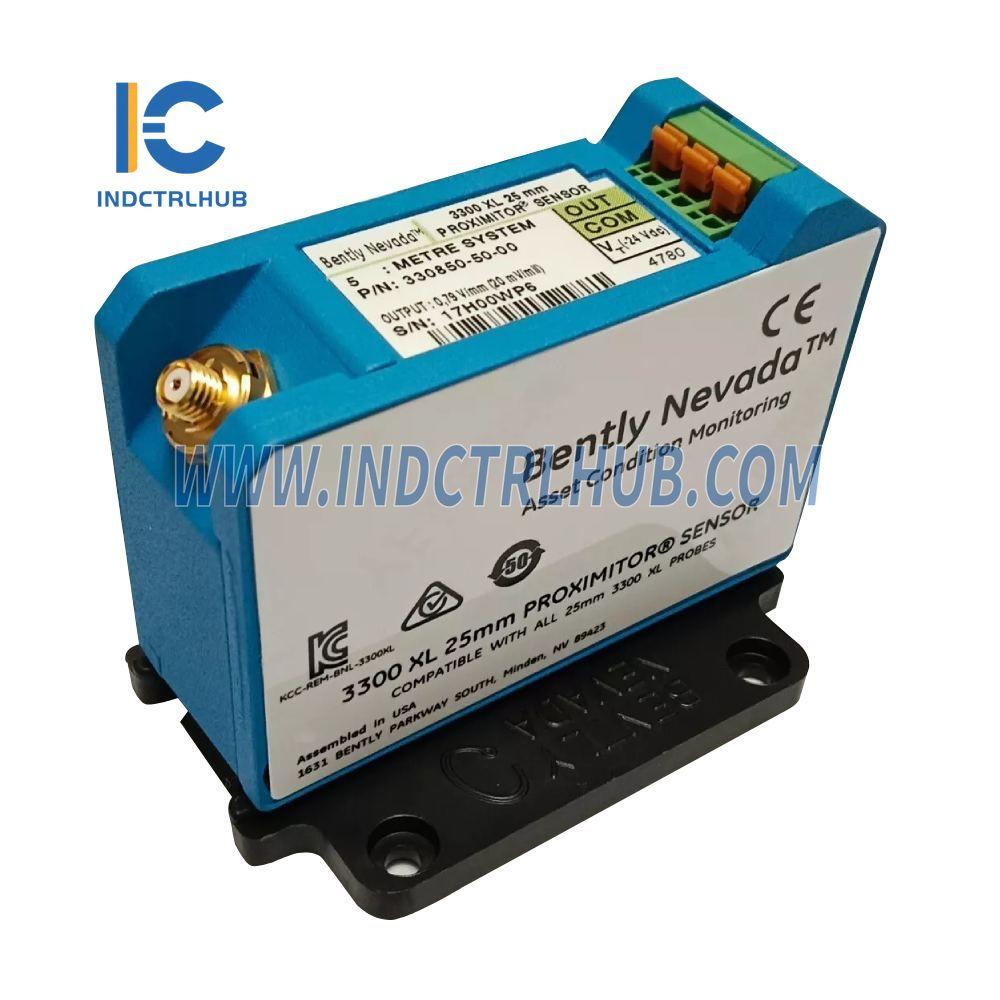

Description: 3300 XL 25 mm Proximitor Sensor
Options:
Part Number: 330850-AA-BB
| Option | Description |
|---|---|
| A: Total Length and Mounting Option | 50: 5.0 meters (16.4 feet) system length, panel mount 51: 5.0 meters (16.4 feet) system length, DIN mount 90: 9.0 meters (29.5 feet) system length, panel mount 91: 9.0 meters (29.5 feet) system length, DIN mount |
| B: Agency Approval Option | 00: No Approvals 05: Multiple Approvals |
Electrical Specifications:
- Proximitor Sensor Input: Accepts one non-contacting 3300 XL 25 mm Proximity Probe and Extension Cable.
-
System Performance over Extended Temperatures:
- Over a probe temperature range of -35°C to +120°C (-31°F to +248°F) with the Proximitor Sensor and extension cable between 0°C to +45°C (+32°F to +113°F), the DSL remains within ±0.92 mm (±36 mils).
- Over a Proximitor Sensor and extension cable temperature range of -35°C to +65°C (-31°F to +149°F) with the probe between 0°C to +45°C (+32°F to +113°F), the DSL remains within ±0.92 mm (±36 mils).
Mechanical Specifications:
| Specification | Value |
|---|---|
| Proximitor Sensor Material | A380 aluminum |
| System Mass (typical) | 255 g (9 oz) |
Temperature Range:
- Operating Temperature: -51°C to +100°C (-60°F to +212°F)
- Storage Temperature: -51°C to +105°C (-60°F to +221°F)
