Product Description
Product Details

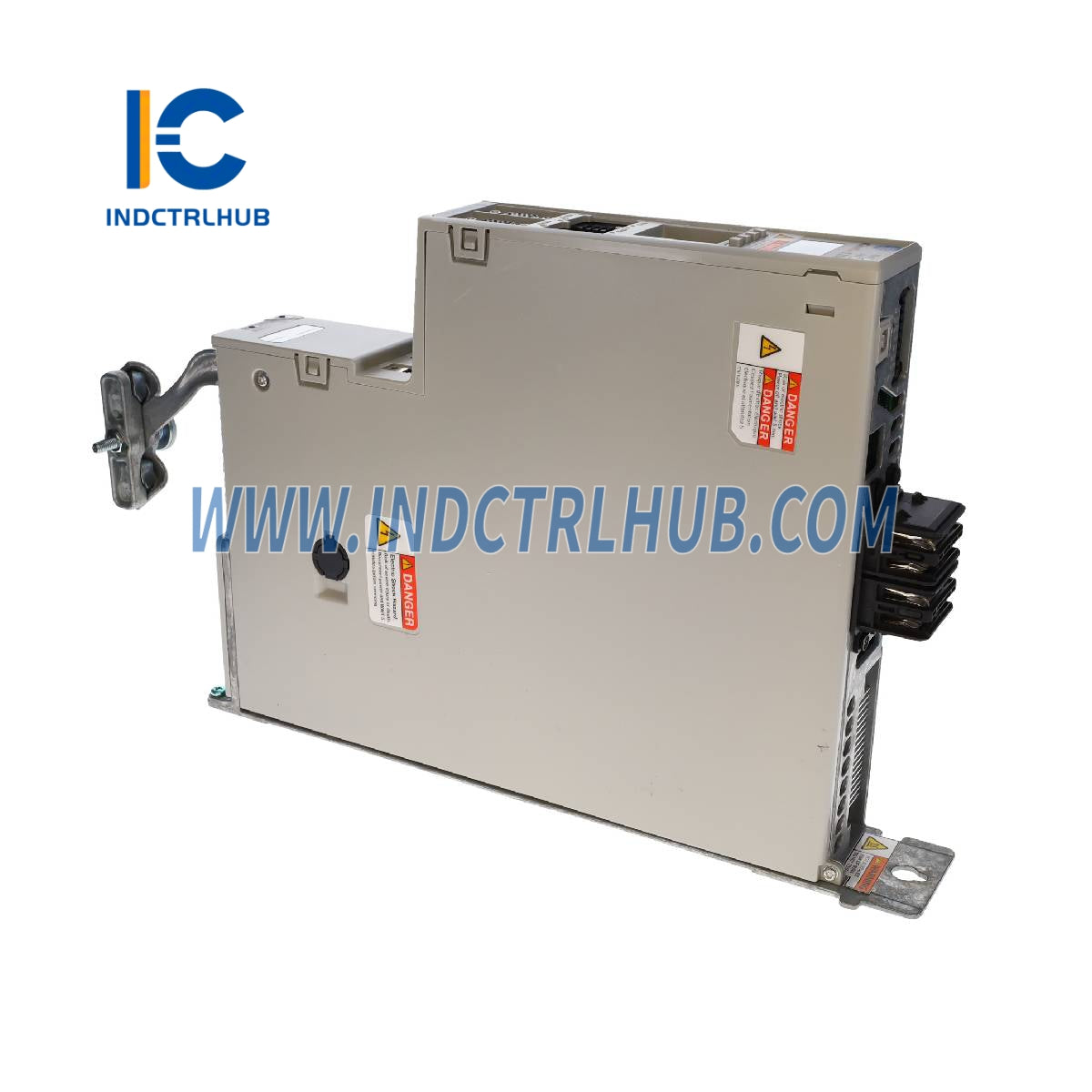

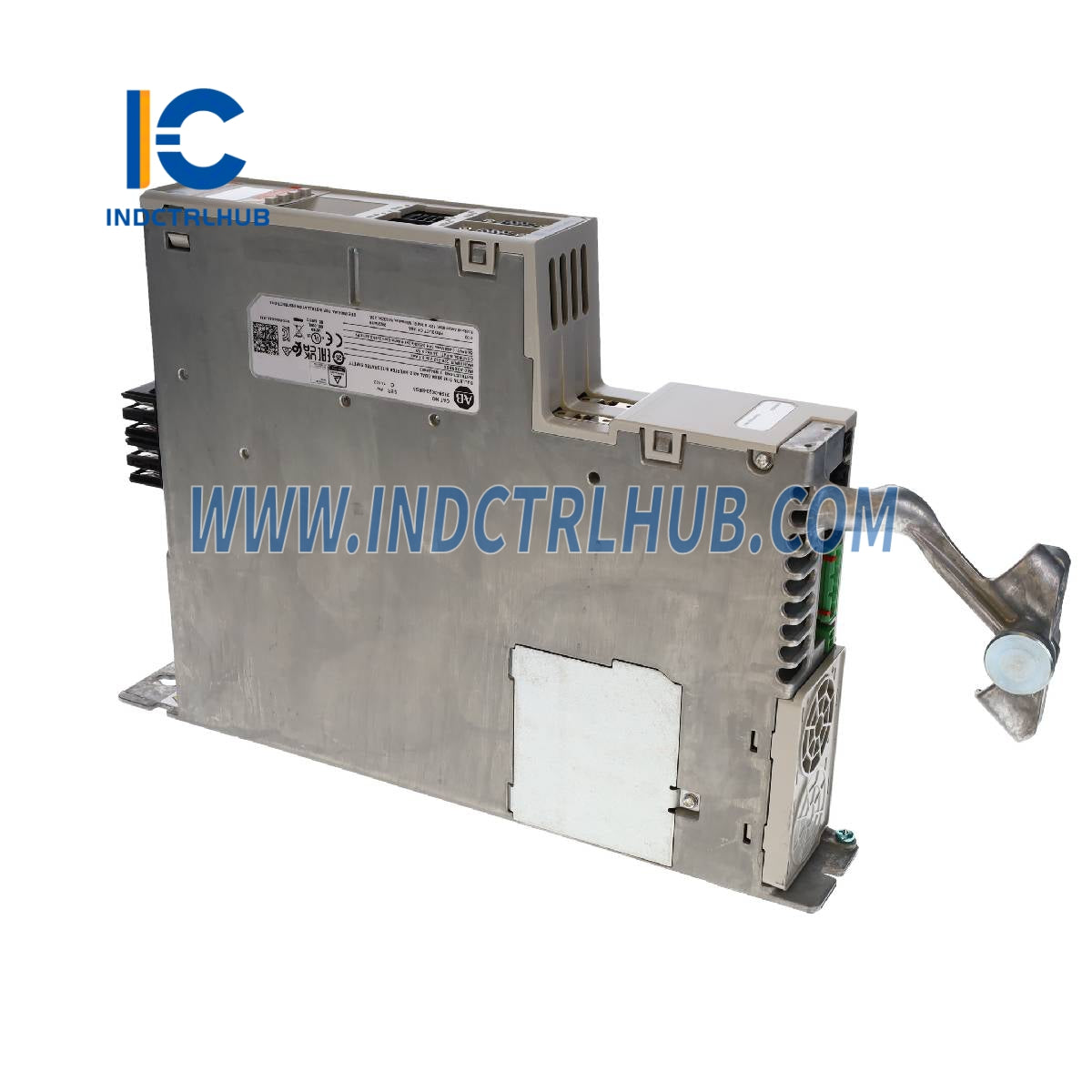

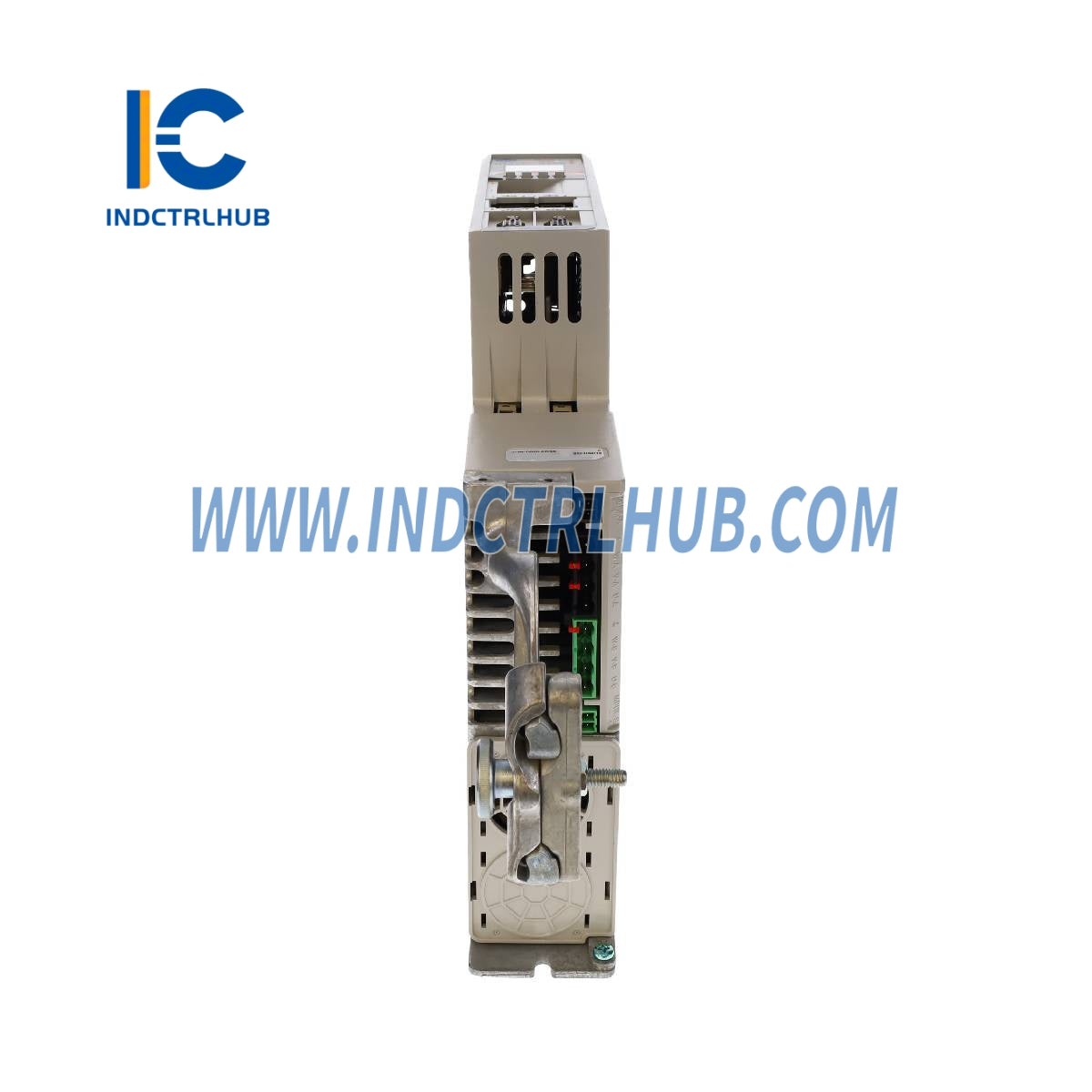

Manufacturer: Allen-Bradley
Model/Part Number: 2198-D020-ERS3
Description: Dual-Axis Inverter Power
Dual-Axis Inverter Power Specifications
|
Attribute |
Value |
|---|---|
|
Bandwidth (Velocity loop, max) |
400 Hz |
|
Bandwidth (Current loop) |
1000 Hz |
|
PWM Frequency |
4 kHz |
|
Continuous Output Current (rms) |
8.0 A |
|
Continuous Output Current (0-pk) |
11.3 A |
|
Peak Output Current (rms) (1 sec duration) |
20.0 A |
|
Peak Output Current (0-pk) (1 sec duration) |
28.2 A |
|
Continuous Power Output (Nominal at 240V, 3-phase, ½ power) |
2.8 kW |
|
Continuous Power Output (Nominal at 480V, 3-phase) |
5.5 kW |
|
DC Input Current @ 276–747V DC |
8.5 ADC |
|
Internal Capacitance |
390 µF |
