Product Description
Product Details

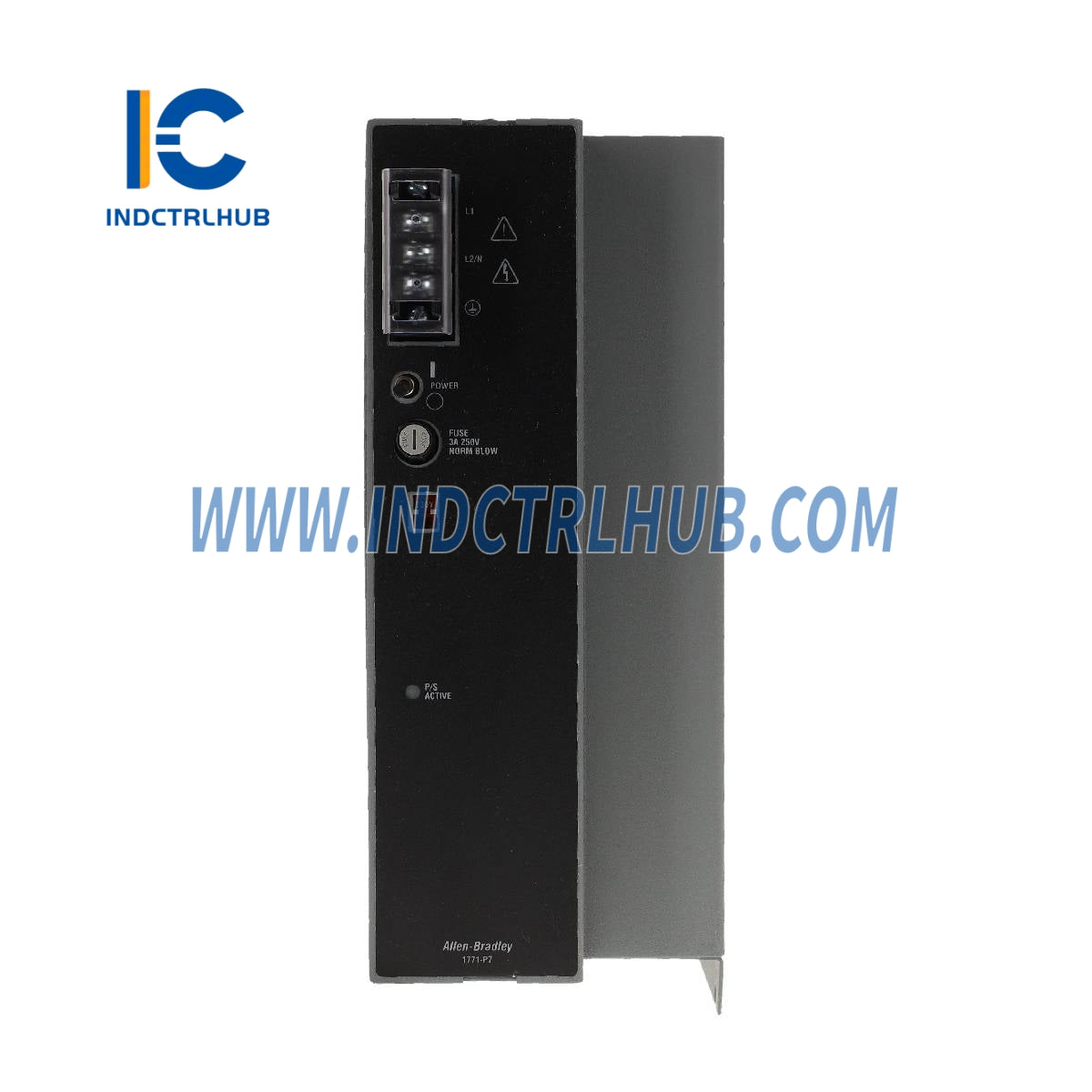

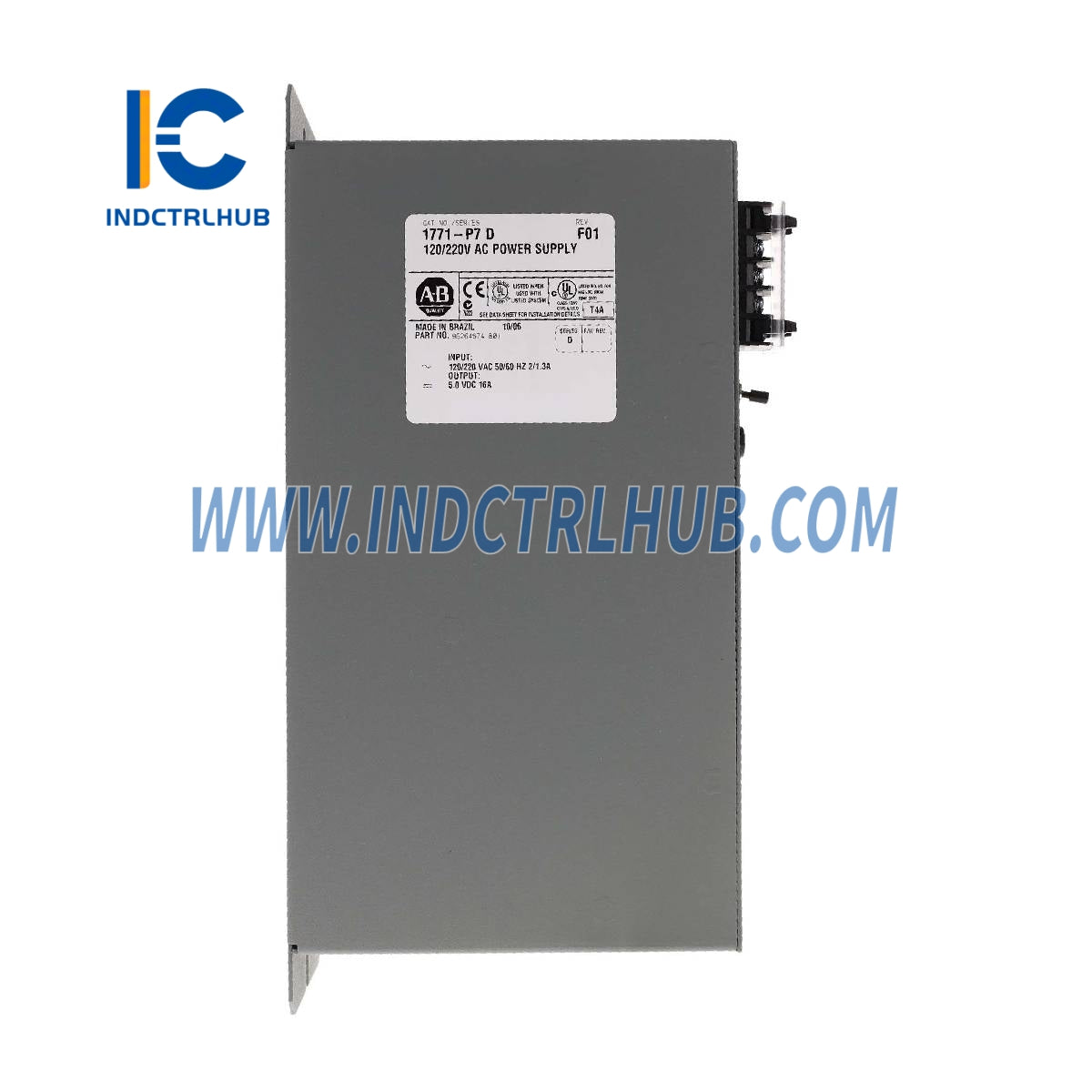

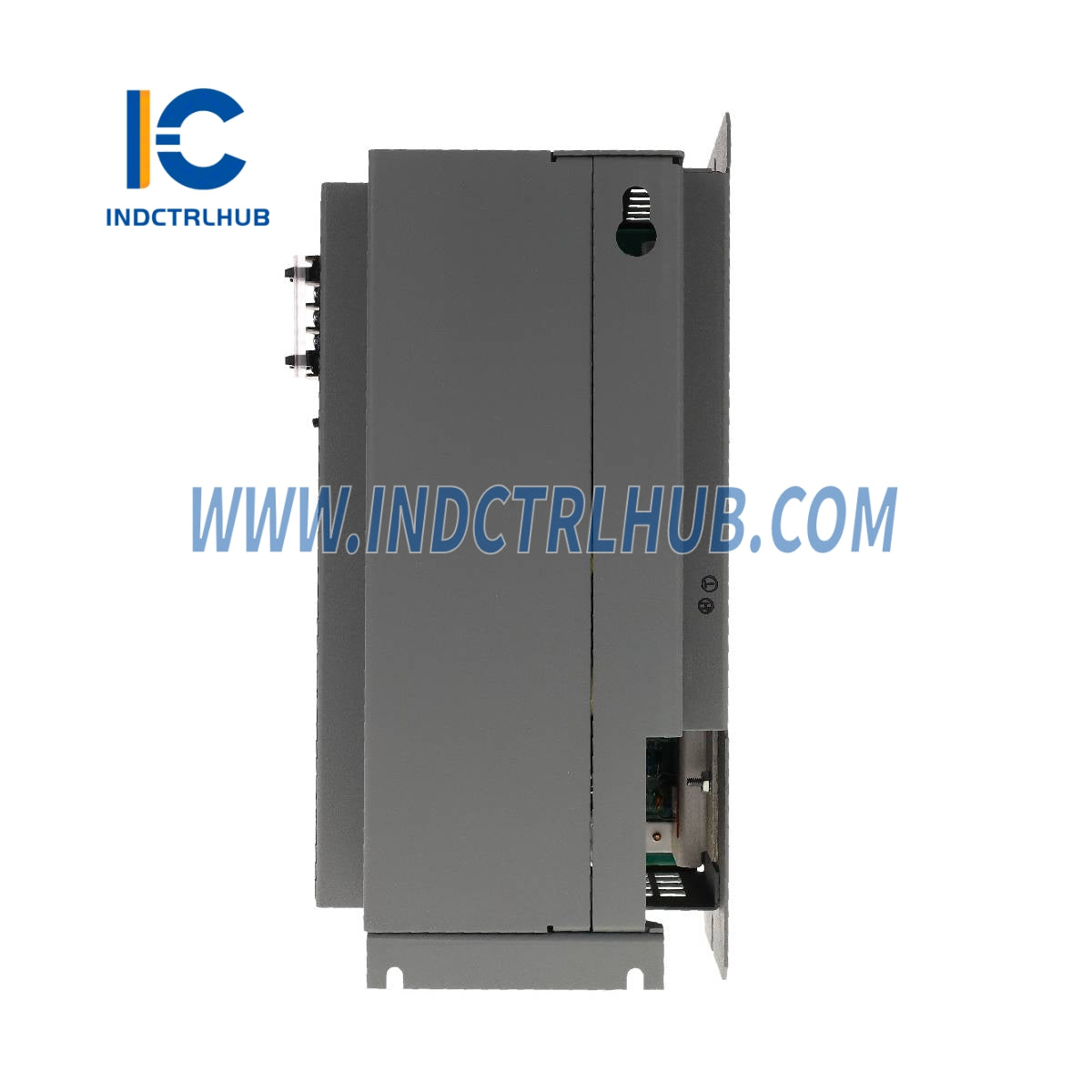

Manufacturer: Allen-Bradley
Model/Part Number: 1771-P7B
Description: AC (120/220V) 16A Power Supply
Specifications
|
Attribute |
Value |
|---|---|
|
Supply Voltage Range |
120V AC: 97-132V AC, 50/60Hz, 2.0A 220V AC: 195-264V AC, 50/60Hz, 1.3A |
|
Input Power (Real/ Apparent) |
108 Watts/ 176 VA max (see charts) 270 VA at full load |
|
External Transformer |
Not applicable |
|
Isolation Voltage |
Tested to 1200V AC for 1s |
|
Output Voltage |
5.06V DC (+3.8%) |
|
Output Current |
16A max @ 5V DC |
|
Power Loss Time Delay |
13.6ms, 12.9ms (Input Power to Processor Disable) |
|
Maximum User-Supplied Overcurrent Protection |
15A |
|
Fuse |
3A, 250V, 3AG normal blow (Bussmann AGC3-L, Littelfuse 312003) |
|
Conductor Wire Size |
14 AWG (2.5mm²), stranded copper wire rated at 75°C or greater |
|
Wire Category |
Category 1 |
|
Terminal Strip Screw Torque |
12 pound-inches |
|
Weight |
1.95 kg (4.3 lbs.) |
|
Dimensions (H x W x D) |
315mm x 115mm x 159mm (12.40” x 4.53” x 6.25”) |
|
Environmental Conditions |
|
|
Operating Temperature |
32°F to 140°F (0°C to 60°C) |
|
Storage Temperature |
-40°F to 185°F (-40°C to 85°C) |
|
Relative Humidity |
5 to 95%, non-condensing |
|
Shock |
Operating: 15g, Non-operating: 30g |
|
Vibration |
Operating: 2g @ 10-500Hz |
|
Emissions |
CISPR 11, Group 1, Class A |
|
ESD Immunity |
IEC 61000-4-2, 4kV Contact Discharges |
|
Radiated RF Immunity |
IEC 61000-4-3, 10V/m, 3V/m Broadcast bands |
|
Surge Transient Immunity |
IEC 61000-4-5, 1kV Contact Discharges |
