Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1738-AENT |
|
Description |

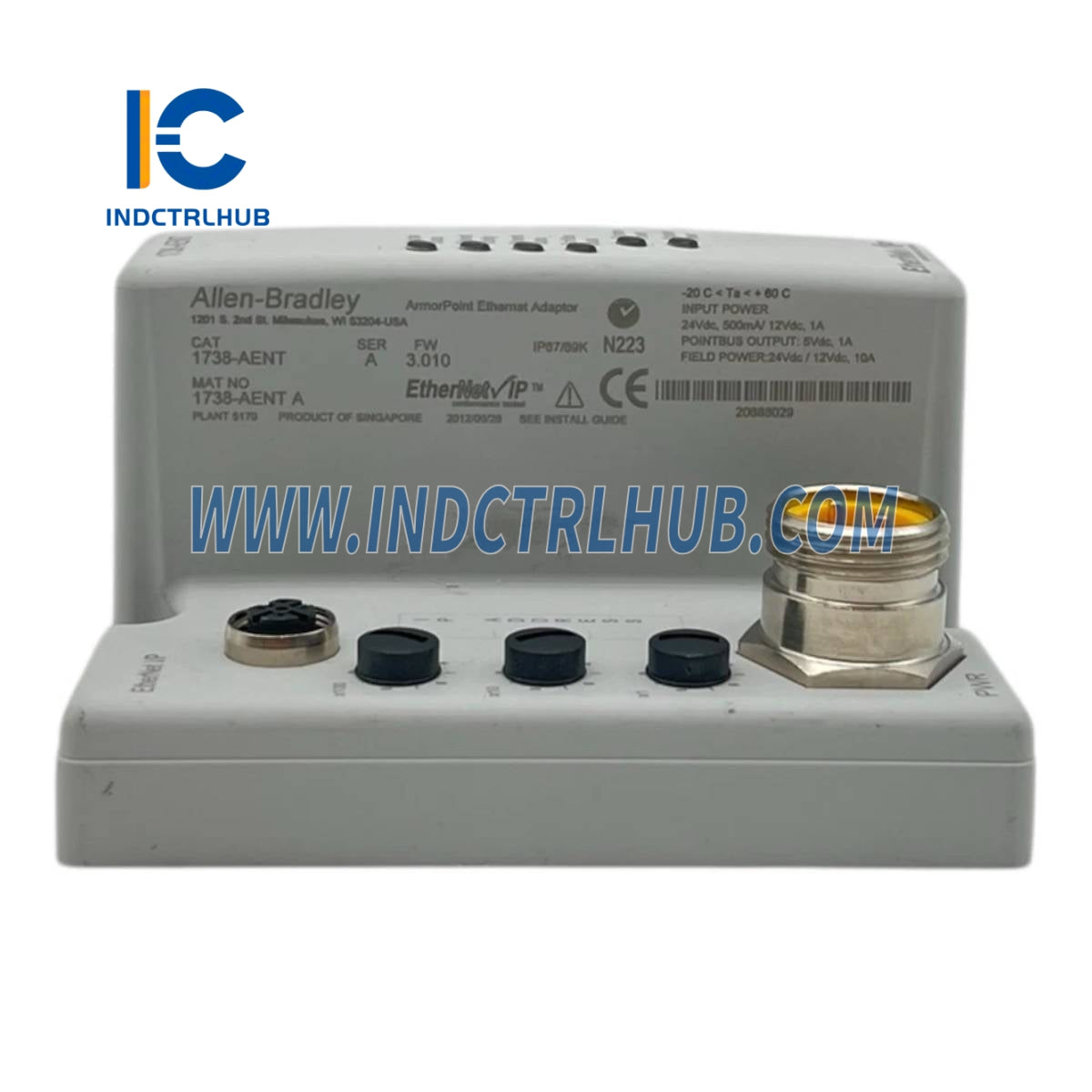

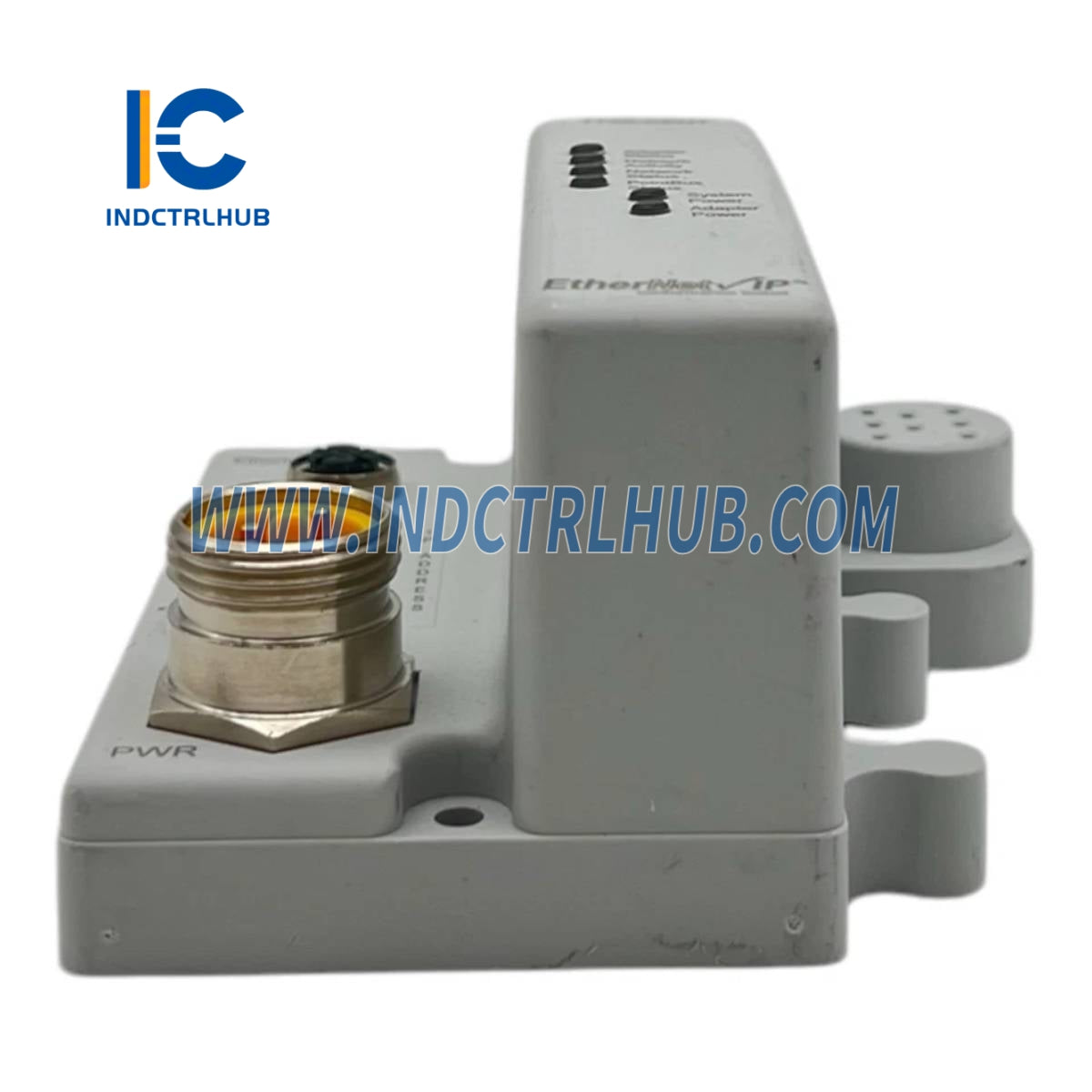

EtherNet/IP Adapter for POINT I/O Modules |
🔹 General Specifications
|
Attribute |
Specification |
|---|---|
|

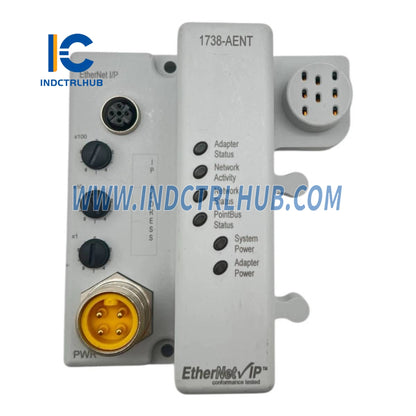

Status Indicators |
- 3 red/green indicators on CPU: |
• Adapter Status
• Network Status
• POINTBus Status
• 1 green indicator on CPU: Network Activity
• 2 green indicators on DC-DC Converter:
• System Power (5V DC to POINTBus Out)
• Adapter Power (24V DC from Field In) |
| Power Consumption (Max) | 8.1 W @ 28.8V DC |
| Power Dissipation (Max) | 2.8 W @ 28.8V DC |
| Thermal Dissipation (Max) | 9.5 BTU/hr @ 28.8V DC |
| Input Overvoltage Protection | Reverse polarity protected |
| Isolation Voltage | Type tested @ 500V AC for 60 s:
• Communication to system
• Communication to user power
• User power to system
• User power to ground
• System to ground |
🔹 Field Power & Input Specifications
|
Attribute |
Specification |
|---|---|
|
Field Power Supply |
10…28.8V DC @ 10A |
|
Field Power Output |
10…28.8V DC @ 9A |
|
Module Input Voltage |
10…28V DC @ 1000 mA |
🔹 Physical & Environmental Specifications
|
Attribute |
Specification |
|---|---|
|
Dimensions (H x W x D) |
112.0 x 72.0 x 65.0 mm (4.41 x 2.83 x 2.56 in.) |
|
Mounting Type |
Metal panel |
|
Enclosure Type Rating |
Meets IP65/66/67/69K (when marked) |
|
Terminal Base Screw Torque |
0.8 Nm (7 lb-in) |
|
Weight |
0.36 Kg (0.8 lb) |
|
Wiring Category |
1 – on power ports, 1 – on communications ports |
