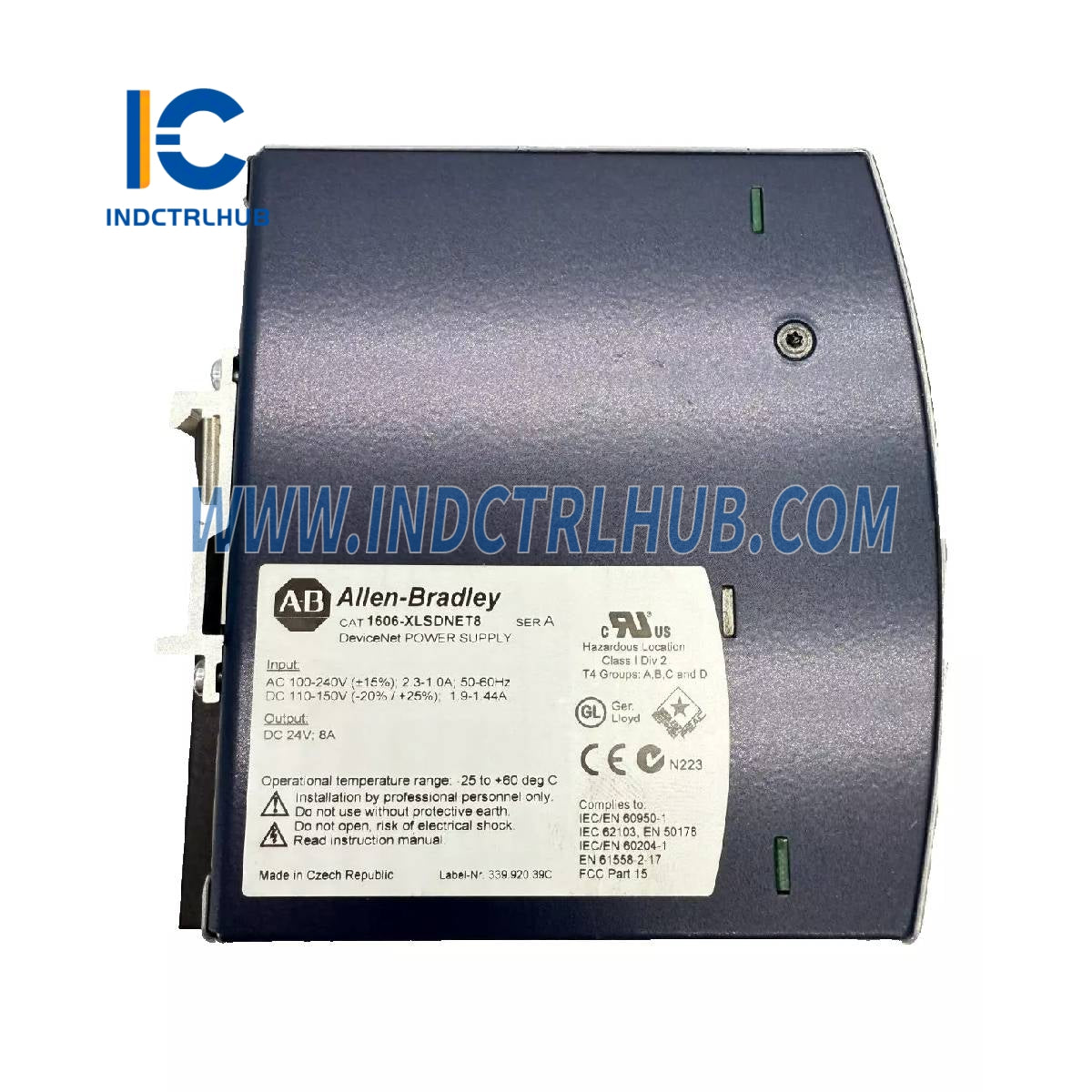

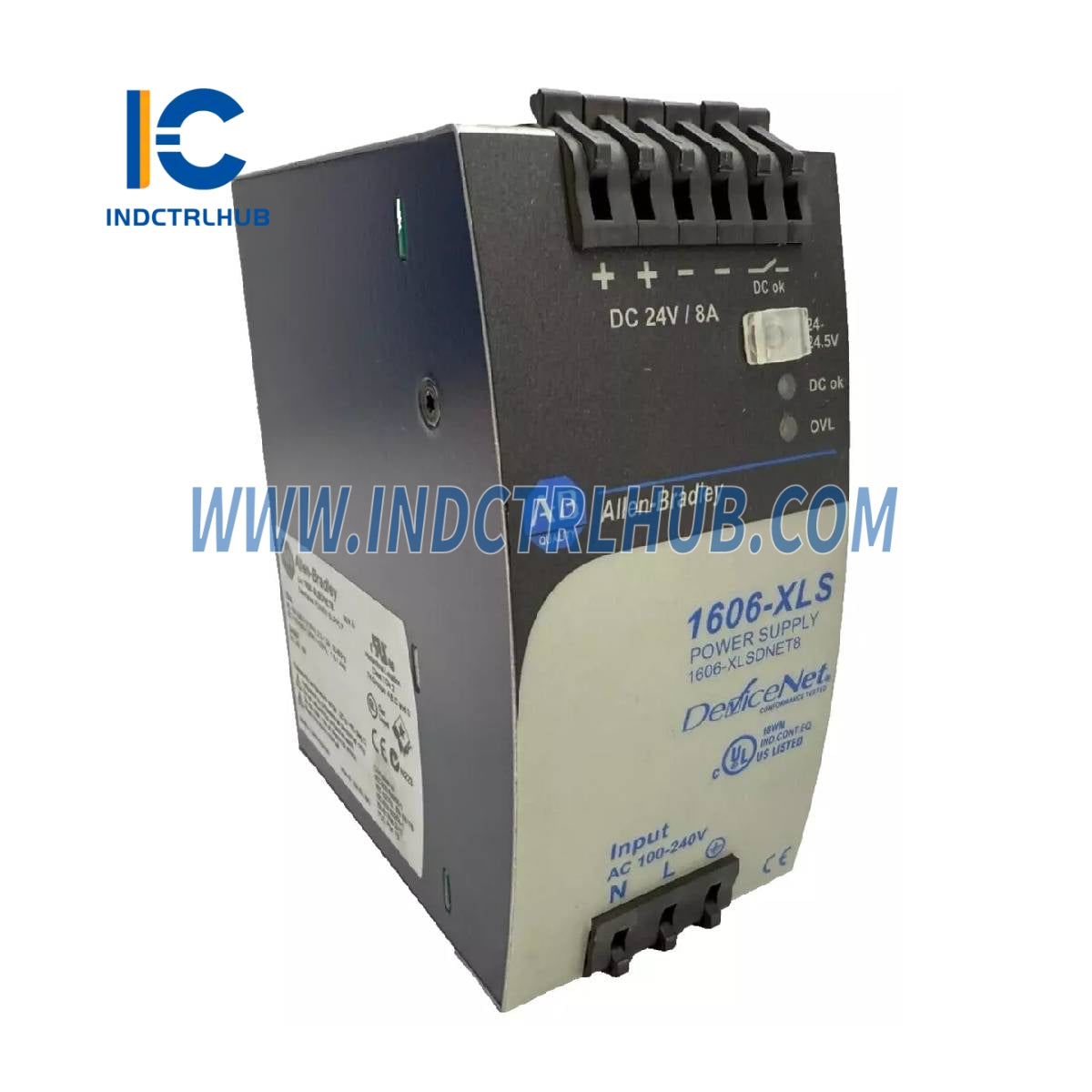

Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1606-XLSDNET8 |
|
Description |
24V DC DIN Rail Power Supply |
🔹 Output Specifications
|
Parameter |
Value |
|---|---|
|
Output Voltage |
DC 24V |
|
Adjustment Range |
24 - 24.5V |
|
Output Current |
8A |
|
Output Power |
192W |
|
Output Ripple |
< 50mVpp (20Hz to 20MHz) |
🔹 Input Specifications
|
Parameter |
Value |
|---|---|
|
AC Input Voltage |
AC 100-240V ±15% |
|
Line Frequency |
50-60Hz ±6% |
|
AC Input Current |
1.77 / 1.0A (at 120 / 230V AC) |
|
Power Factor |
0.98 / 0.92 (at 120 / 230V AC) |
|
AC Inrush Current |
Typ. 4 / 7A peak (at 120 / 230V AC) |
|
DC Input Voltage |
DC 110 - 300V (-20% / +25%) |
|
DC Input Current |
1.9 / 0.7A (at 110 / 300V DC) |
|
Efficiency |
92.3% / 92.7% (at 120 / 230V AC) |
|
Losses |
16.0W / 15.1W (at 120 / 230V AC) |
|
Hold-up Time |
Typ. 33 / 34ms (at 120 / 230V AC) |
🔹 Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operational Temperature |
-25°C to +70°C (-13°F to 158°F) |
|
Output De-rating |
5W/°C (from 60-70°C) |
|
Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
|
Humidity |
5 to 95% r.H. (IEC 60068-2-30) |
|
Vibration (Sinusoidal) |
2-17.8Hz: ±1.6mm; 17.8-500Hz: 2g (IEC 60068-2-6) |
|
Vibration (Random) |
0.5m²/s³ (2 hours/axis, IEC 60068-2-64) |
|
Shock |
30g (6ms), 20g (11ms), 3 bumps per direction (IEC 60068-2-27) |
|
Altitude |
0 to 6000m (0 to 20,000ft) |
|
Output De-rating (Altitude) |
15W/1000m or 5°C/1000m above 2000m |
|
Over-voltage Category |
III (up to 2000m), II (2000m - 6000m) (EN 50178) |
|
Degree of Pollution |
2 (EN 50178, not conductive) |
🔹 Mechanical & Installation
|
Parameter |
Value |
|---|---|
|
Width |
60mm (2.36”) |
|
Height |
124mm (4.88”) |
|
Depth |
117mm (4.61”) (plus DIN-rail depth) |
|
Weight |
900g (1.98 lb) |
|
DIN-Rail Compatibility |
35mm DIN-rails (EN 60715 or EN 50022, 7.5mm or 15mm height) |
