Product Description
Product Details

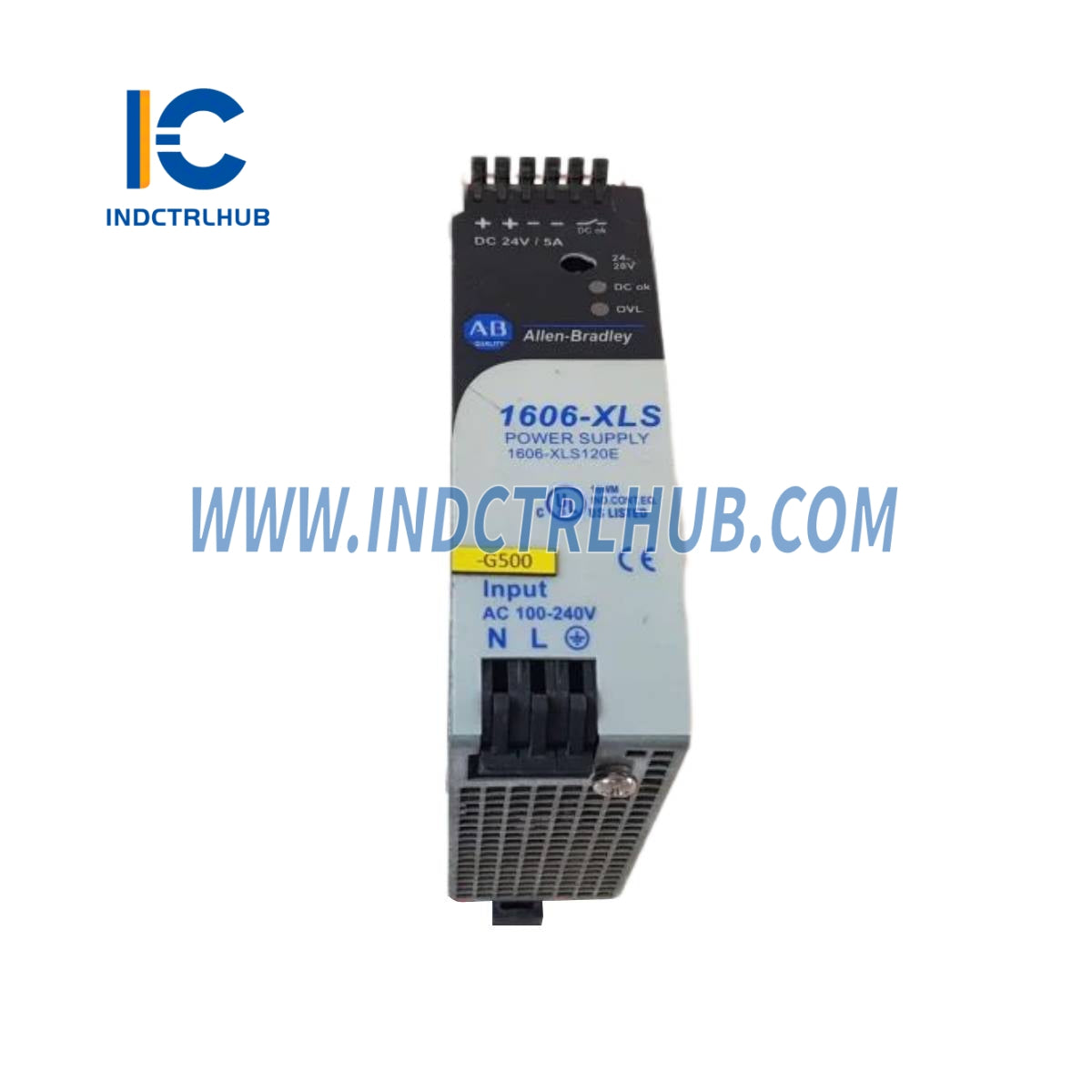

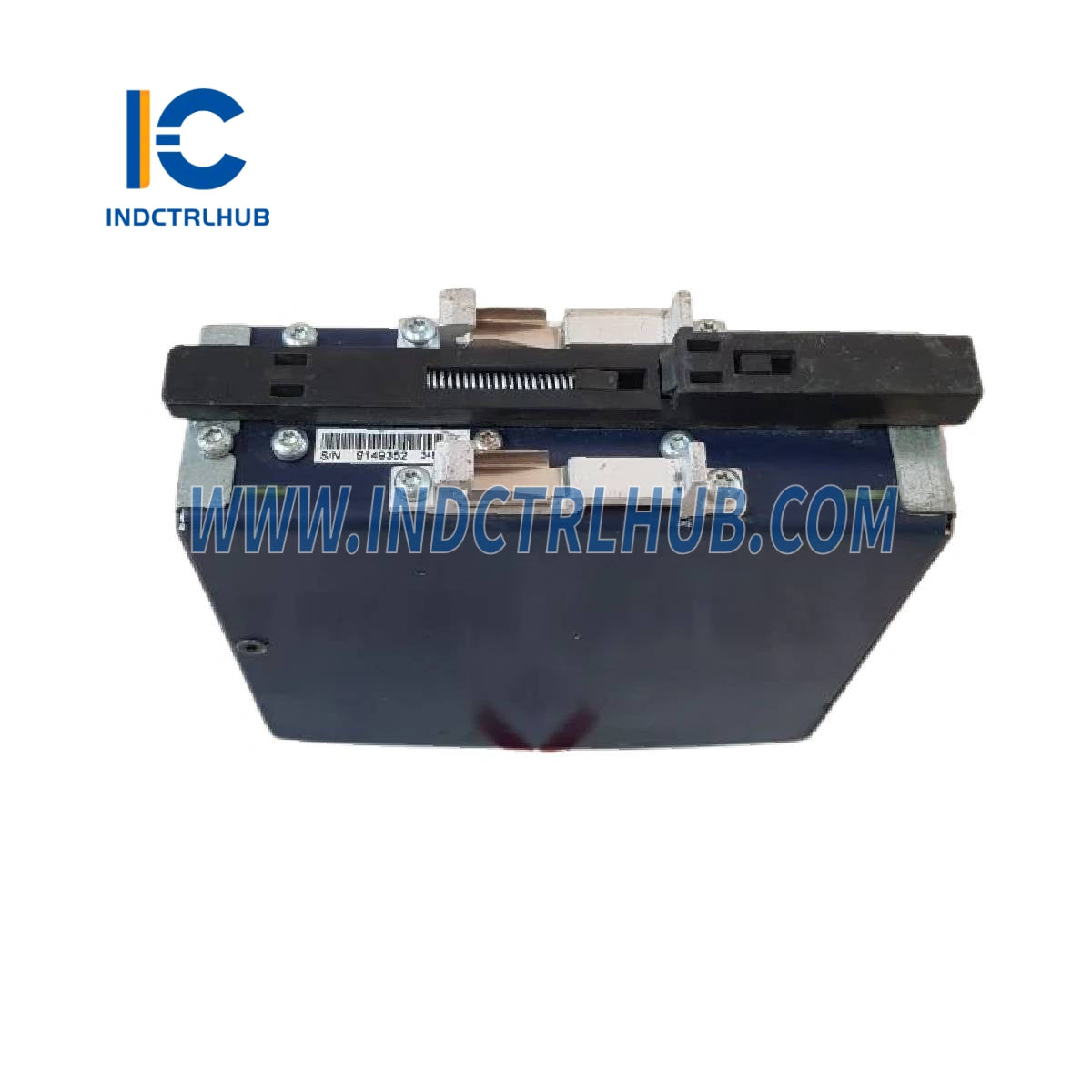

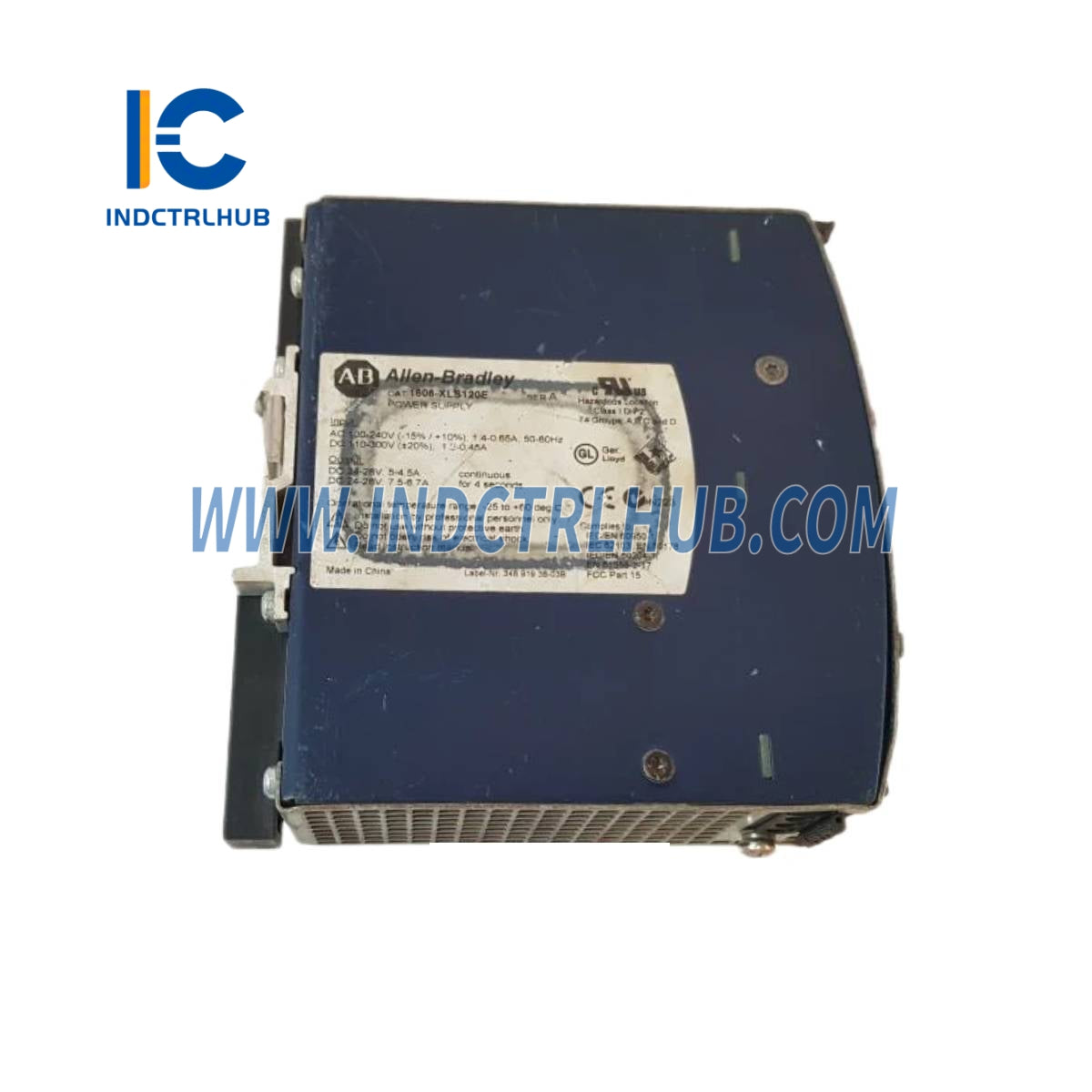

Manufacturer: Allen-Bradley
Model/Part Number: 1606-XLS120EA
Description: Performance Power Supply
Technical Specifications
Electrical Specifications
|
Parameter |
Specification |
|---|---|
|
Output Voltage (Nominal) |
24V |
|
Output Current (Nominal) |
5A |
|
Adjustment Range |
24…28V |
|
Output Power |
120W |
|
Power Reserves |
50% |
|
Ripple and Noise (Max.) |
50mVpp |
|
AC Input Voltage |
100…240V AC |
|
DC Input Voltage |
100…300V DC |
|
Power Factor (Typical) |
0.91 |
|
Efficiency (Typical) |
92.7% |
|
Power Losses (Typical) |
9.4W |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
-25…+70 °C (-13…+158 °F) |
|
Derating (From 60…70 °C) |
3 W/°C |
|
MTBF (Mean Time Between Failures) at +40°C |
831 kh |
|
Lifetime Minimum at +40°C |
89 kh |
Mechanical Specifications
|
Parameter |
Specification |
|---|---|
|
Connection Terminals |
Spring |
|
Dimensions (W x H x D) |
40 x 124 x 117 mm (1.57 x 4.88 x 4.61 in.) |
|
Weight |
620 g (1.37 lb) |
Special Features
|
Feature |
Availability |
|---|---|
|
DC OK Relay Contact |
Yes |
|
Certifications |
ATEX Approved |
