Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |
DSSR 170 |
|
Product ID |
48990001-PC |
|
Catalog Description |

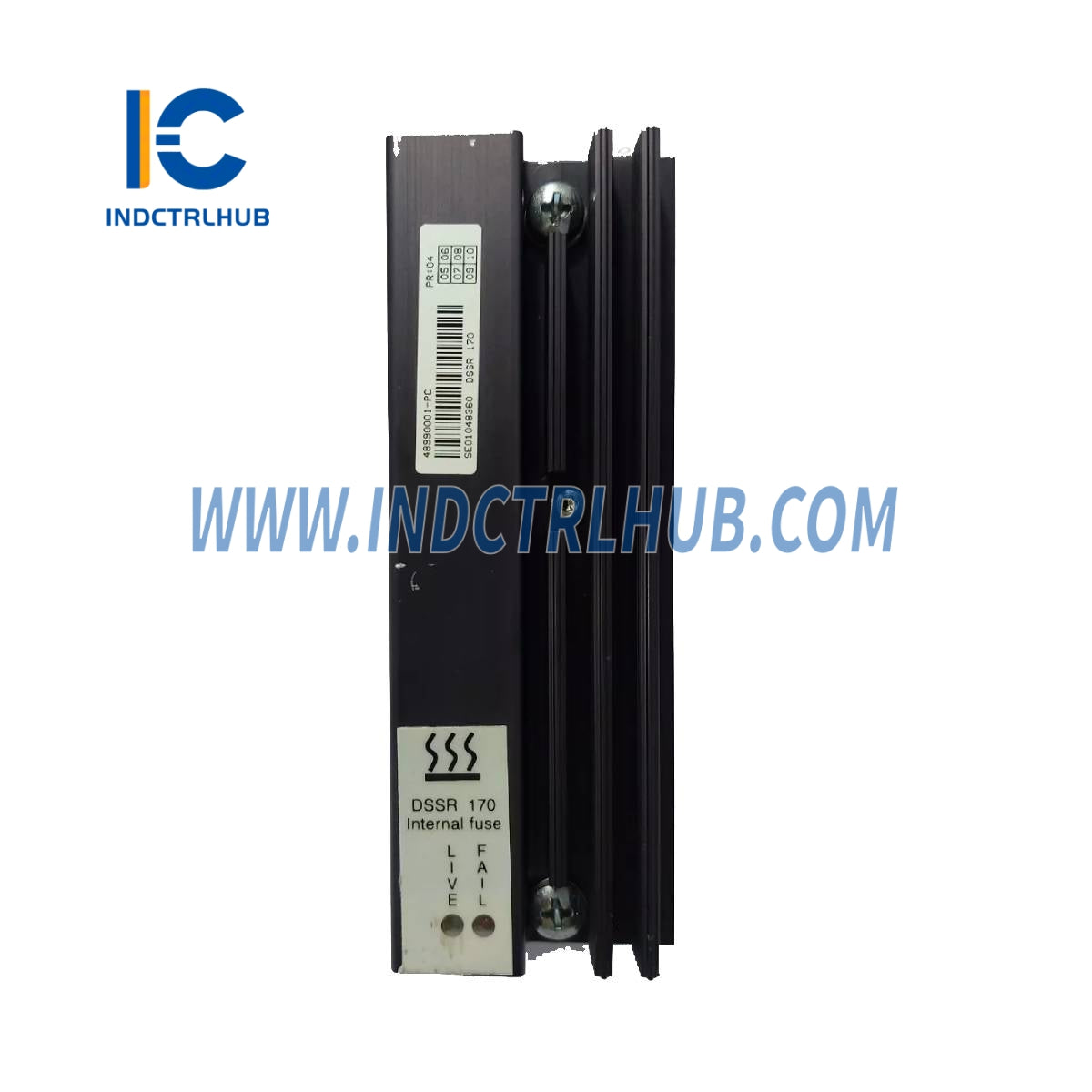

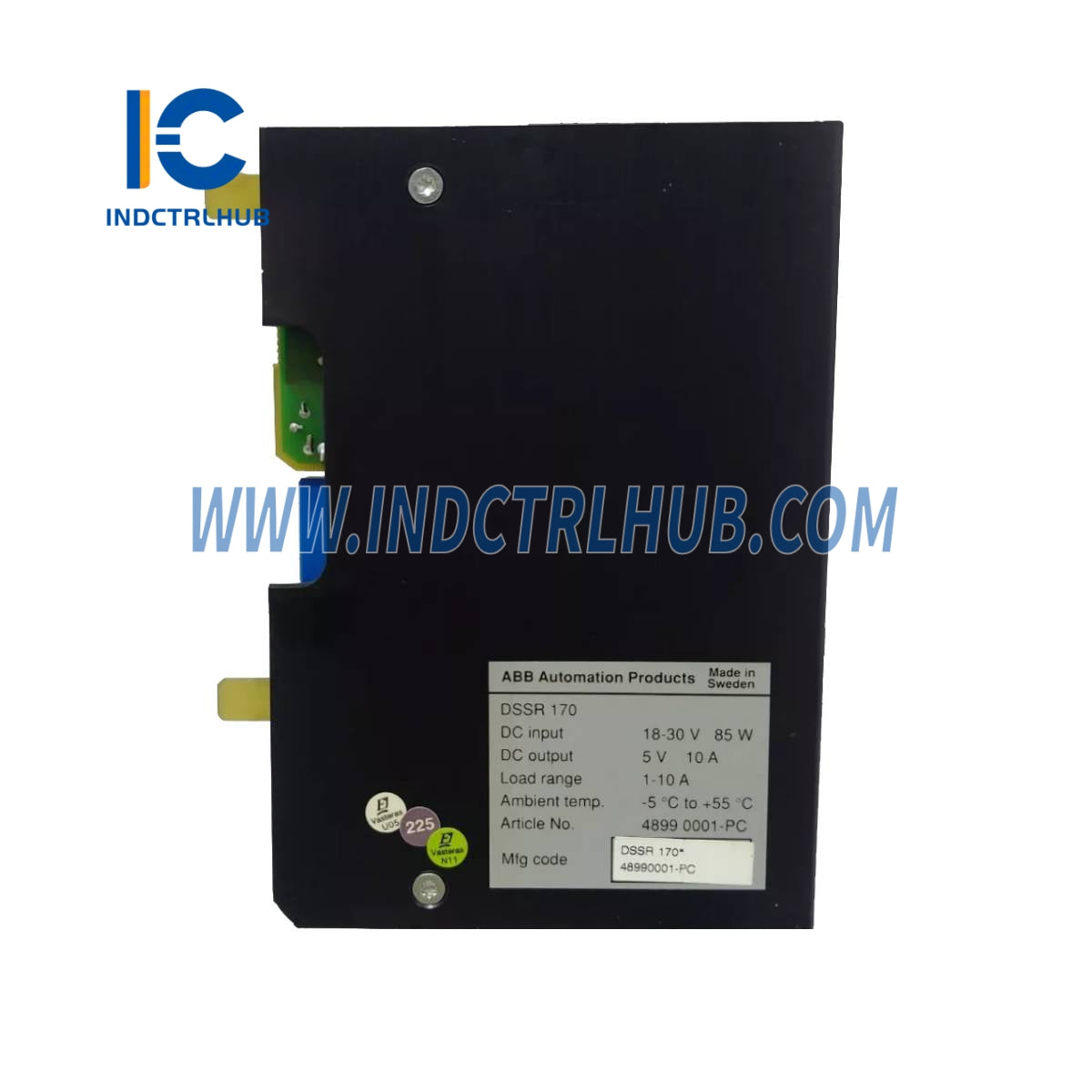

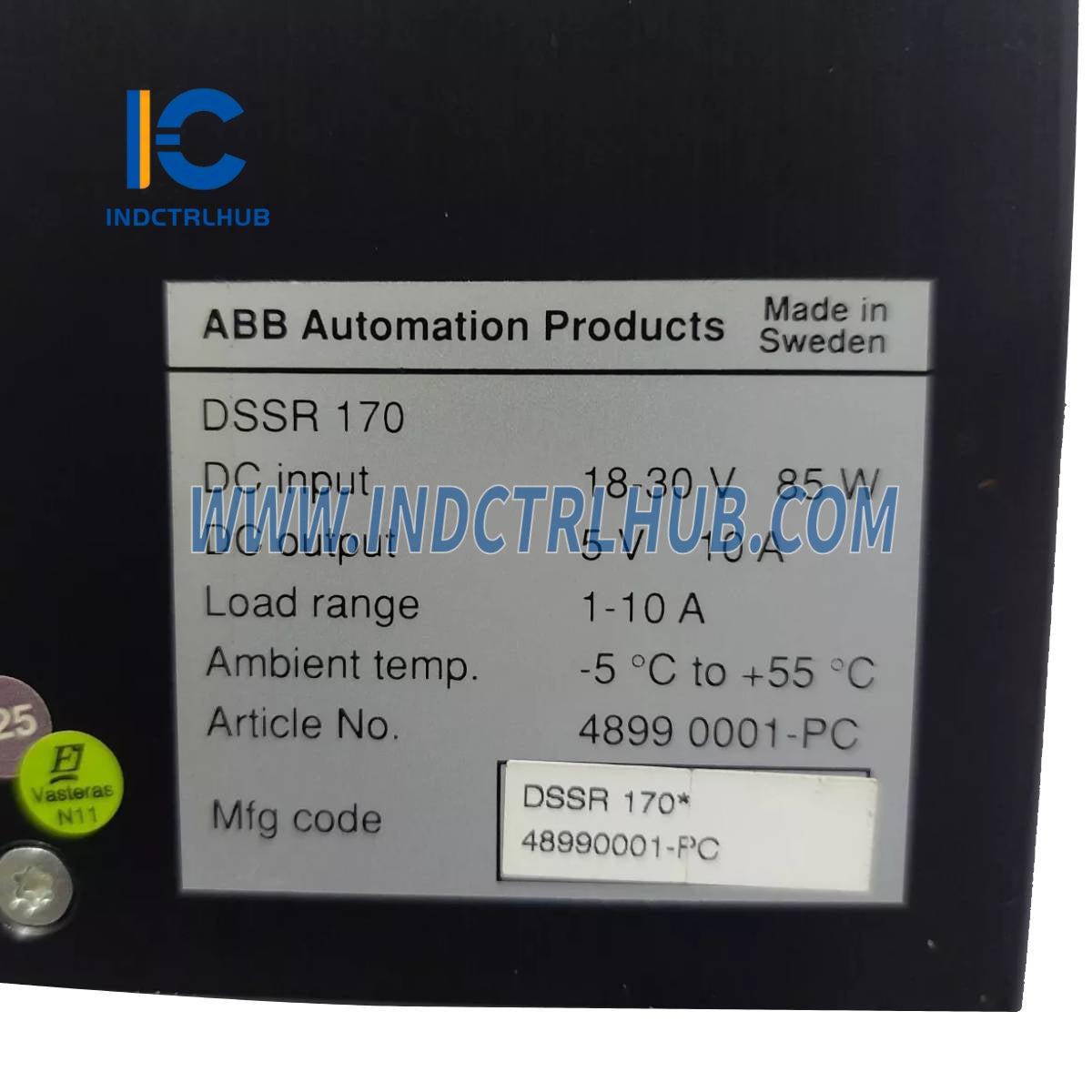

DSSR 170 Power Supply Unit for DC-input/DC-output |
|
Long Description |
DSSR 170 Voltage Regulator Unit for DC-input/DC-output. Input: 24 VDC, Output: 5 V DC regulated, 10 A |
|
Product Type |
Power Supply |
Technical Information
|
Parameter |
Value |
|---|---|
|
Input Voltage |
24 VDC |
|
Output Voltage |
5 VDC (regulated) |
|
Output Current |
10 A |
|
Spare Fuse |
5 A (Part Number: 56722011-21) |
Ordering Information
|
Parameter |
Value |
|---|---|
|
HS Code |
850440 – Electrical transformers, static converters (e.g., rectifiers), and inductors |
|
Customs Tariff Number |
85044082 |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
108 mm |
|
Product Net Height |
54 mm |
|
Product Net Width |
234 mm |
|
Product Net Weight |
0.6 kg |
Environmental Compliance
|
Parameter |
Value |
|---|---|
|
RoHS Status |
Following EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries |
0 |
|
SCIP ID |
8e23cee4-d726-4256-b0bf-af5c4a822894 (Sweden) |
Product Applications
• Control System Products → Power Supply Products → AC 400 Power → DSSR 170 Power Regulators
• Control Systems → Advant OCS with Master SW → Controllers → Advant Controller 450 & 410 → Power Supplies
• Control Systems → Advant OCS with MOD 300 SW → Controllers → AC460 → Power Supplies
• Control Systems → Compact Product Suite → I/Os → S100 I/O → Power Supplies
