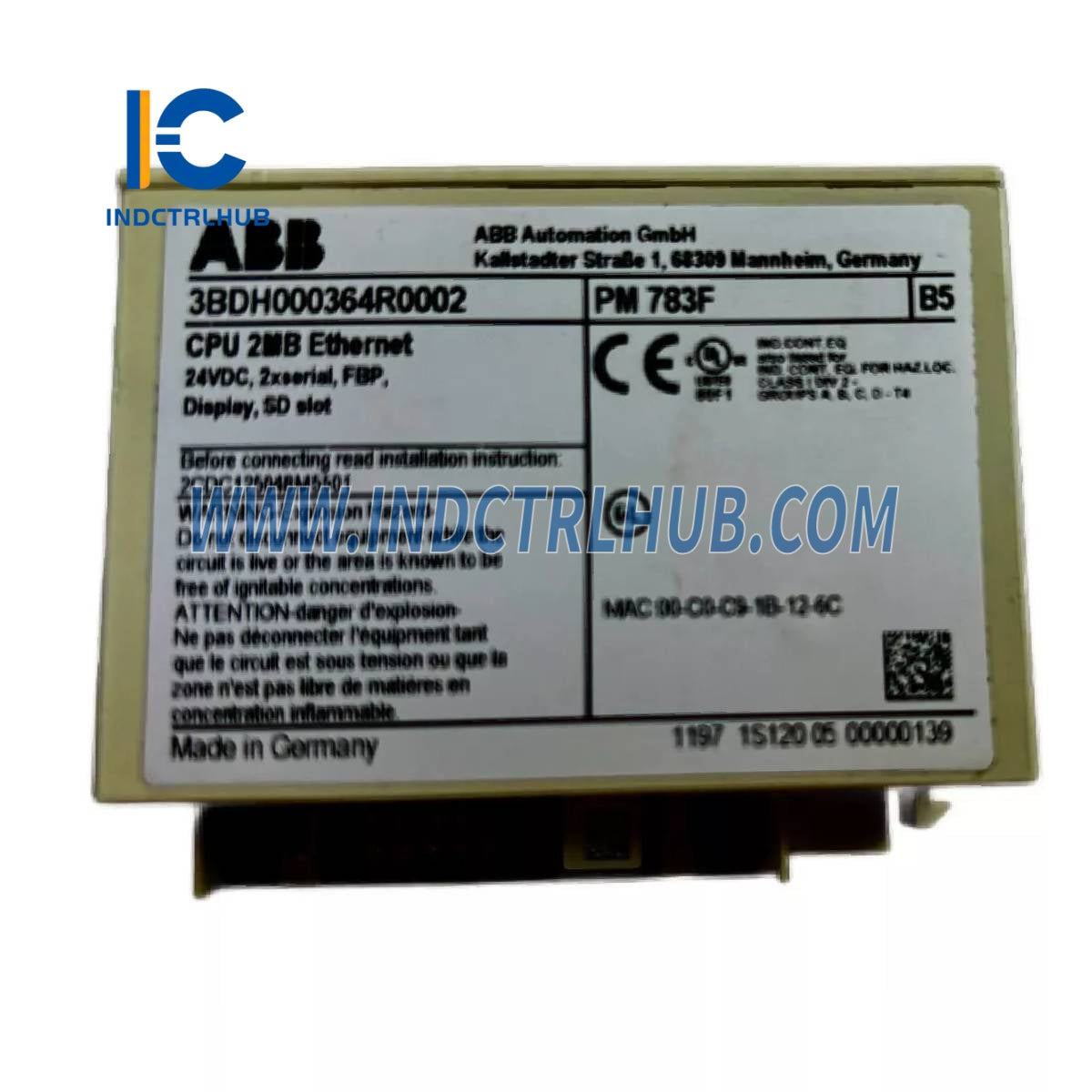

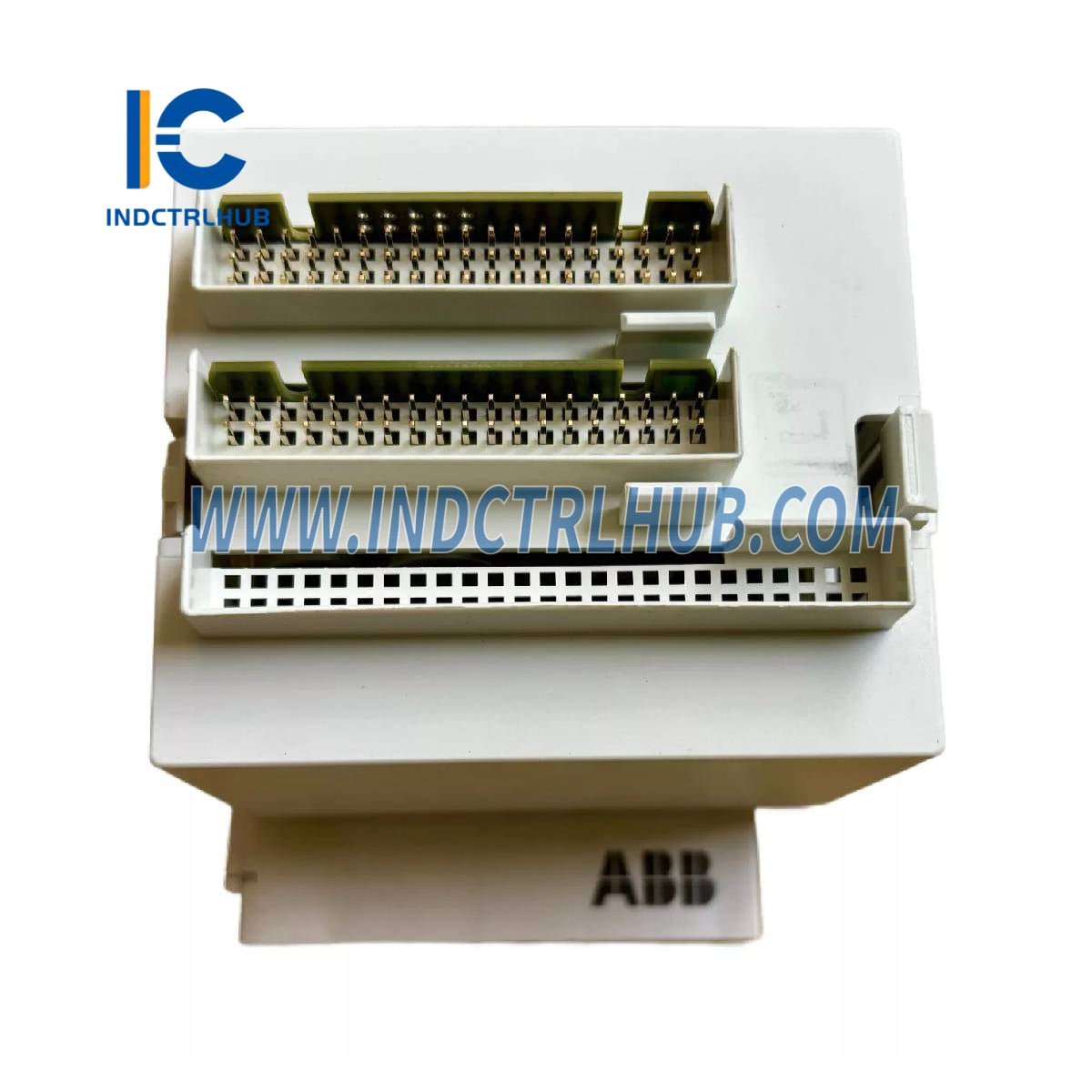

Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |
PM 783F Rev. B |
|
Product ID |
3BDH000364R0002 |
|
Catalog Description |
PM 783F CPU Module |
|
Invoice Description |
PM 783F CPU Module |
|
Product Name |
PM 783F Rev. B CPU Module |
|
Product Type |
Central_Unit |
|
Medium Description |
Smallest CPU in the Freelance controller family, supporting around 300 I/O signals |
Technical Information
|
Parameter |
Value |
|---|---|
|
Function |
Central Processing Unit (CPU) module |
|
Processor |
High-performance processor for fast loop cycle times |
|
Ethernet Connection |
100 Mbit/s, used for communication between controllers, operator stations, and engineering tool |
|
Serial Line Interfaces |
2 (One for Modbus communication, One for diagnostics) |
|
Memory |
10 MB total (2 MB battery-backed up) |
|
Task Configuration |
- 8 cyclic and priority-driven tasks with adjustable cycle time - 1 cyclic PLC-type task running as fast as possible |
|

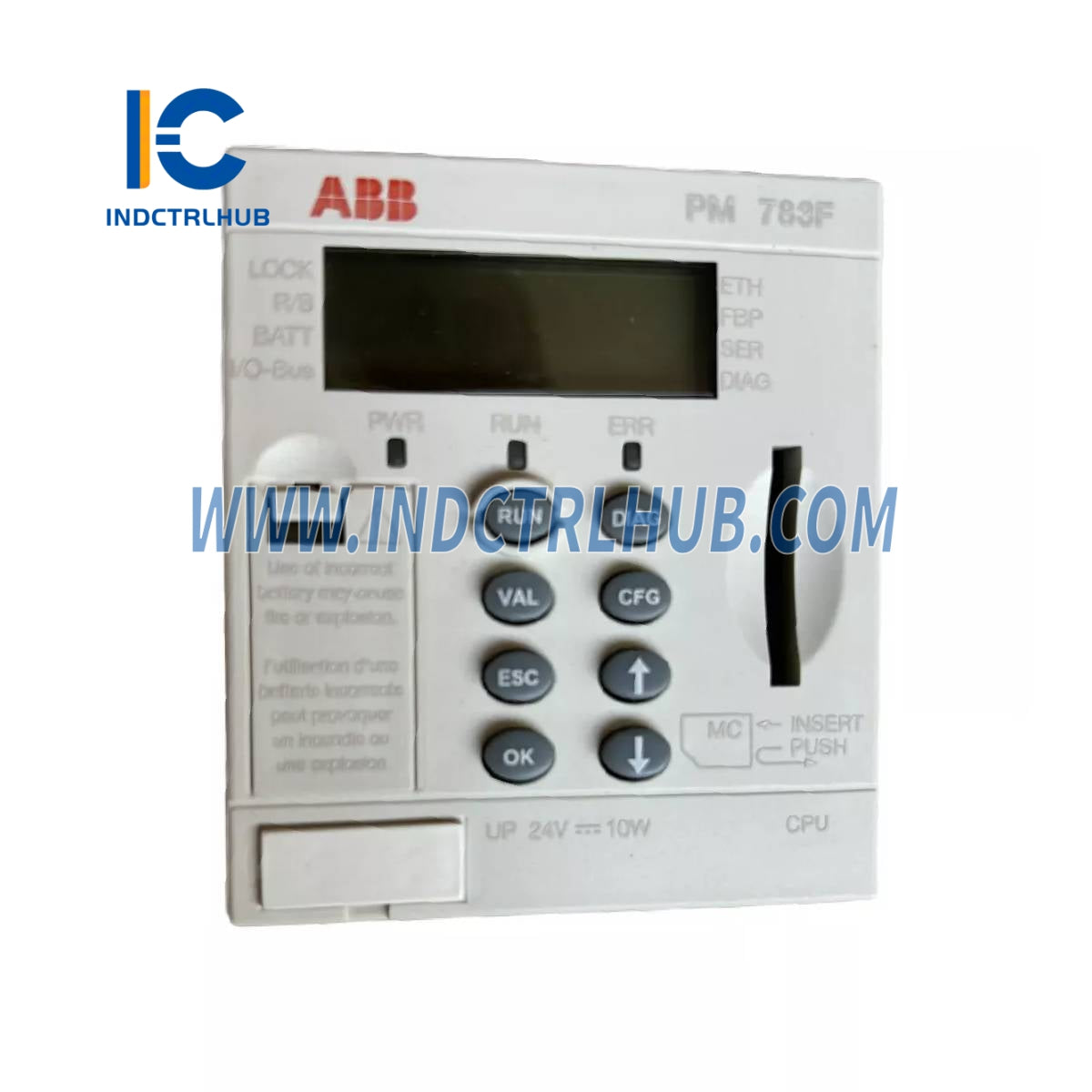

Display |
Small front panel display for status and diagnostics |
|
Security |
Controller lock for preventing application and firmware downloads |
|
Supported I/O Modules |
- S700 I/O modules (directly or via PROFIBUS) - Max 8 modules per controller |
|
Third-Party I/O Connectivity |
MODBUS ASCII/RTU, IEC 60870-5-101 Telecontrol protocol, PROFIBUS |
|
I/O Scan Time |
2 ms |
|
Short Circuit/Line Break Detection |
Available on each channel |
|
Power Supply |
External 24 VDC required |
|
Software Requirement |
Version 9.2SP2 or higher |
|
Compatibility |
Terminal Base TB 711F and Battery TA521 |
Ordering Information
|
Parameter |
Value |
|---|---|
|
Customs Tariff Number |
85371091 |
|
HS Code |
853710 |
|
Made To Order |
No |
|
Selling Unit of Measure |
Piece |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
54 mm |
|
Product Net Height |
76 mm |
|
Product Net Width |
67.5 mm |
|
Product Net Weight |
0.15 kg |
Environmental & Compliance
|
Parameter |
Value |
|---|---|
|
RoHS Status |
Following EU Directive 2011/65/EU and Amendment 2015/863 (July 22, 2019) |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries |
0 |
Product Applications
• Products → Control System Products → Control & Communication → AC 700F → AC 700F - Processor Modules → PM 783F Rev.B CPU Module
