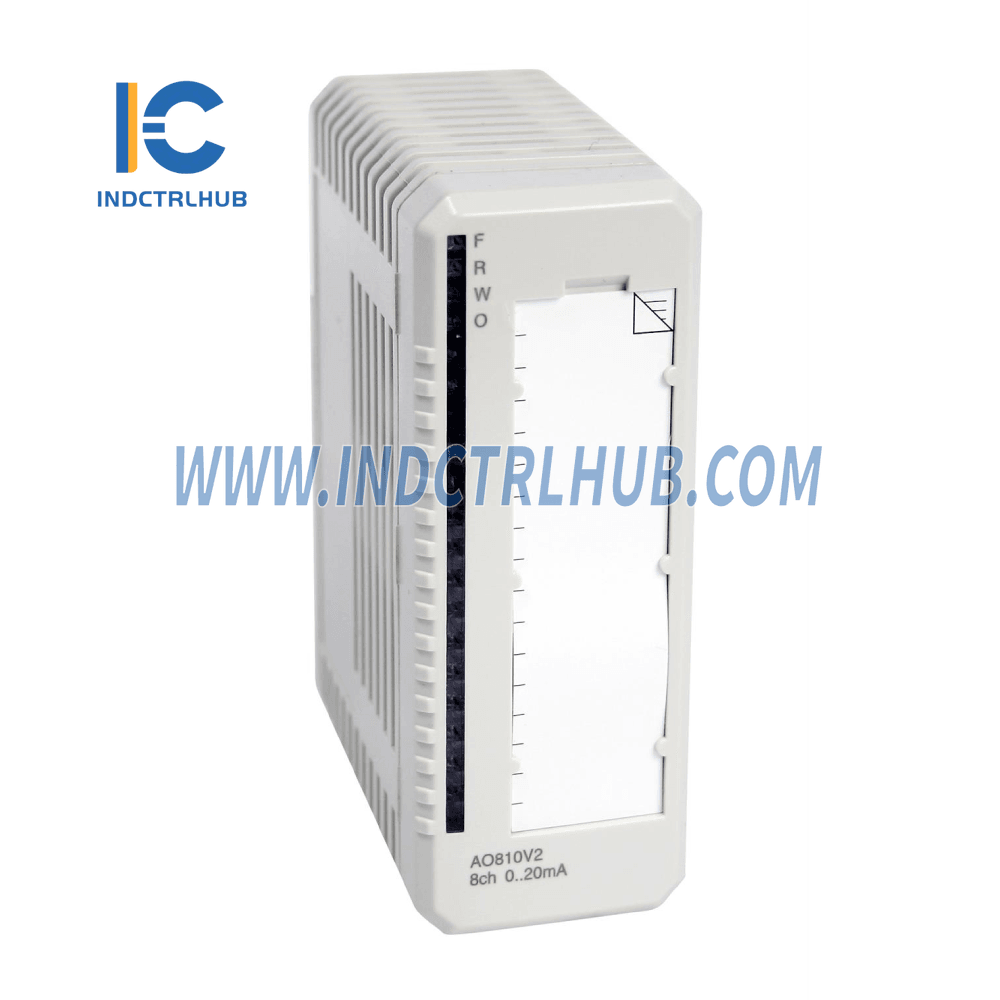

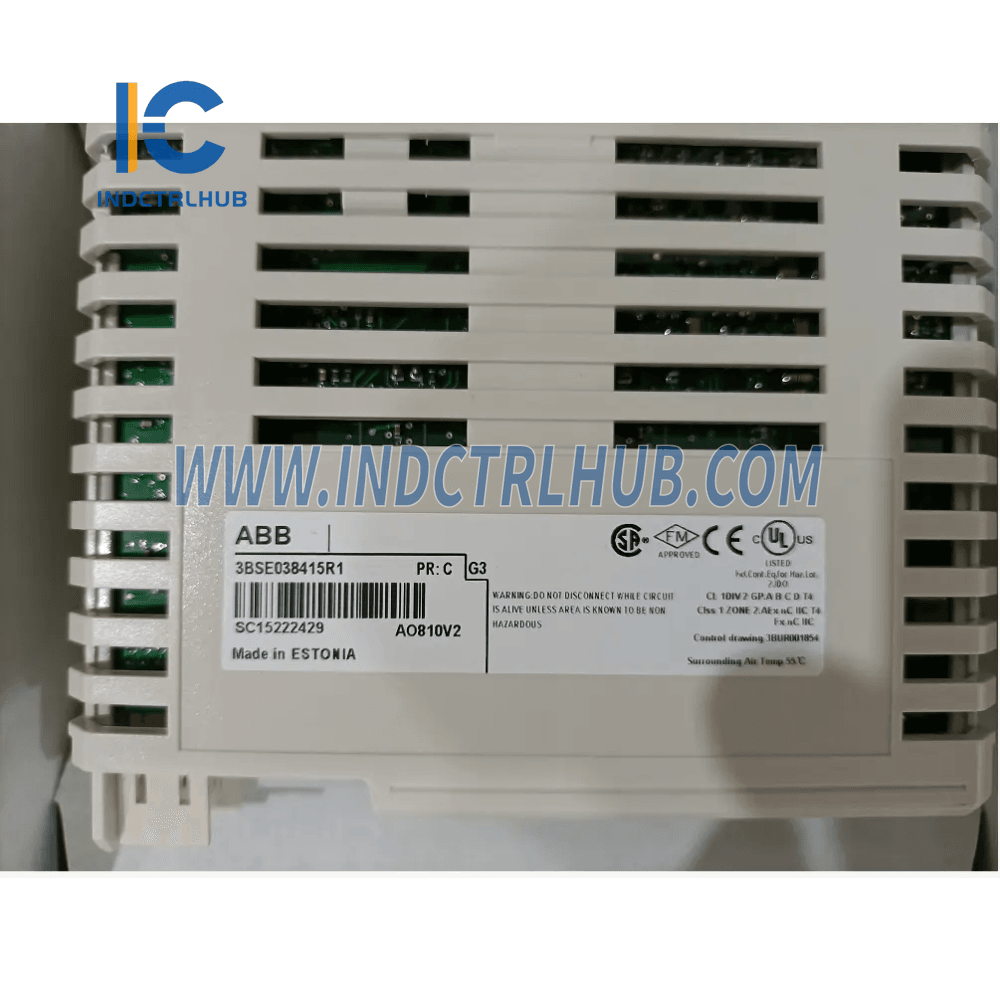

3BSE038415R1 | ABB AO810V2 Analog Output Module

3BSE038415R1 | ABB AO810V2 Analog Output Module

  • Manufacturer: ABB

  • Product No.: 3BSE038415R1

  • Condition:1000 in stock

  • Product Type: Analog Output Module

  • Product Origin: Sweden

  • Payment: T/T, Western Union

  • Weight: 180g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details for AO810/AO810V2 Analog Output Module

General Information

  • Article Number: 3BSE038415R1
  • Type: Analog Output
  • Signal Specification: 0...20 mA, 4...20 mA
  • Number of Channels: 8
  • HART: No
  • SOE: No
  • Redundancy: No
  • High Integrity: No
  • Intrinsic Safety: No
  • Mechanics: S800

Features and Benefits

  • Channel Capacity: 8 unipolar analog output channels (0...20 mA, 4...20 mA).
  • Diagnostics:
    • Communication to D/A converters is supervised via readback verification.
    • Open-circuit diagnostic and cyclic self-diagnostics included.
    • Reports channel errors if the output current is below the set value (>1 mA).
  • Output Protection:
    • Short-circuit secured to ZP or +24 V.
    • OSP (Output Set Point) sets outputs to a predetermined state upon error detection.
  • Compatibility: Matches MTU models TU810, TU812, TU814, TU830, TU833.

Detailed Data

  • Resolution: 14-bit
  • Isolation: Groupwise isolated from ground
  • Output Load:
    • ≤ 500 Ω (supply connected to L1+ only)
    • 250 - 850 Ω (supply connected to L2+ only)
  • Accuracy:
    • Max 0.1% error (0 - 500 Ω load).
  • Temperature Drift: Typical 30 ppm/°C, Max 60 ppm/°C
  • Rise Time: 0.35 ms (PL = 500 Ω)
  • Update Cycle Time: ≤ 2 ms
  • Current Limiting: Short-circuit proof, current-limited output
  • Maximum Cable Length: 600 meters (656 yards)
  • Rated Insulation Voltage: 50 V
  • Dielectric Test Voltage: 500 V a.c.
  • Power Dissipation: 2.3 W

Diagnostics and Indicators

  • Front LEDs:
    • F: Fault
    • R: Run
    • W: Warning
    • OSP: Output Set Point
  • Supervision:
    • Module Error: Low output power
    • Channel Error: Open circuit (>1 mA current)
    • Status indication includes: Module Error, Warning, and Channel Error

Environmental and Certification

  • CE Mark: Yes
  • Electrical Safety:
    • EN 61010-1, UL 61010-1
    • EN 61010-2-201, UL 61010-2-201
  • Hazardous Locations:
    • C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
  • Marine Certifications: ABS, BV, DNV, LR
  • Operating Temperature: 0 to +55 °C (+32 to +131 °F)
  • Storage Temperature: -40 to +70 °C (-40 to +158 °F)
  • Pollution Degree: Degree 2 (IEC 60664-1)
  • Corrosion Protection: ISA-S71.04: G3
  • Relative Humidity: 5 to 95%, non-condensing
  • Protection Class: IP20 (IEC 60529)
  • EMC Compliance: EN 61000-6-4, EN 61000-6-2
  • RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
  • WEEE Compliance: DIRECTIVE/2012/19/EU

Compatibility

  • MTU Models: TU810, TU812, TU814, TU830, TU833
  • Keying Code: AE

Physical Dimensions

  • Width: 45 mm (1.77”)
  • Depth:
    • 102 mm (4.01”)
    • 111 mm (4.37”) including connector
  • Height: 119 mm (4.7”)
  • Weight: 0.18 kg (0.4 lbs.)
